Electric Motorcycle Kits - SVMC02

Sabvoton Controller offer the kits for convert electric motobike, the 200A electric motorcycle kits works together with 18"-21" motorcycle wheel set kits, Hall display. It's easy to connect with SVMC models controller, plug to plug directly. This Controller kits with sine wave controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for electric motobike controller kits, 18" motorcycle wheel set kits, electric motorcycle controller kits, BLDC motorcycle motor controller kits,electric scooter controller with display

• FOC 180 sabvoton controller SVMC72200 applied to BLDC motor or PMSM.
• Easy connect, BLDC motorcycle motor controller kits
• Soft start and no noise
• Programmable by PC & Phone APP
• EBS & Regenerative function support
• OEM & ODM Service support

Contact Us

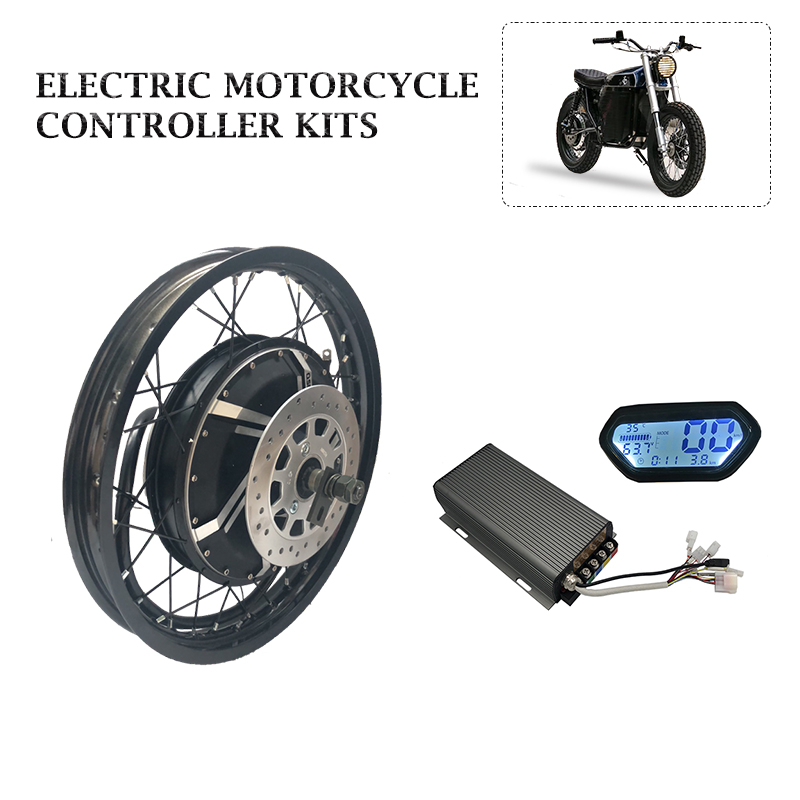

- Kits Including -

1) 18"-26" QS 273 Electric motorcycle wheel motor set, 4000w rated power, 200mm dropout
2) Sabvoton Controller SVMC72200

3) N2 Hall Display

- Generally SPEC -

MQ(Sabvoton) sabvoton controller SVMC72200 - SVMC02

1) Motor: electric bicycle motor wheel set, 18" - 26" moped motorcycle rim/bicycle rim, rated power 4000w, 200mm drop-outs.
2) Controller Model: SVMC72200-M V1
3) Display Model:  N2 Hall Display

4) Available Battery Voltage 48V-72V rated

5) Available Motor Power 4000W-5000W

6) Phase Peak Current: 450A

7) DC Current: 200A

8) Working Communication: Hall Sensor

9) Installing Size: 283mm * 147mm * 62mm

10) Weight: 2.5 kgs
) Defaut Throttle Working Voltage: 0V - 5V

12) Mosfets Detail: 30 FET

13) Case Material: Aluminum

14) Controller Design: Electric Bicycle 200A Powerful Controller, 200A Electric Bicycle Controller

15) Support Programmable by PC & Phone

 - Controller kits Design -

electric motorcycle motor kits, programmable sine wave controller, With Hall Plug, 120 degree Phase Angle.

Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.

#electric motorcycle motor kits#electric motorcycle wheel set kits#200A sine wave controller#electric motobike controller kits#BLDC motorcycle motor controller kits
