User Case

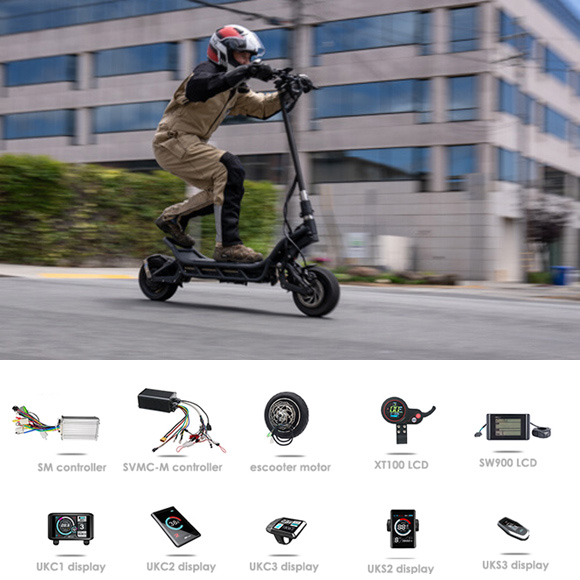

Electric Scooter Use
Application: Electric Scooter
Controller: SM4818, SM4830, SVMC7245-M V2
Display: XT100 LCD, SW900 LCD, C1 display, C2 display, C3 display, S2 display, S3 display
Commnucation Protocol: No.2
SM functions: Hall, Throttle, Low Brake, PAS, Display, Three Phase Wires, Power Cables B+/ B-
SVMC7245-M V2 functions: Hall, Throttle, Light Power, PAS, Throttle, Alarm, Speed Limit, Low Brake, Three Speed, Display, Reverse, Phase wires, Power wires.
Matched Motor: 250w-1500w brushless DC with Hall sensor type, phase angle 120 degree.

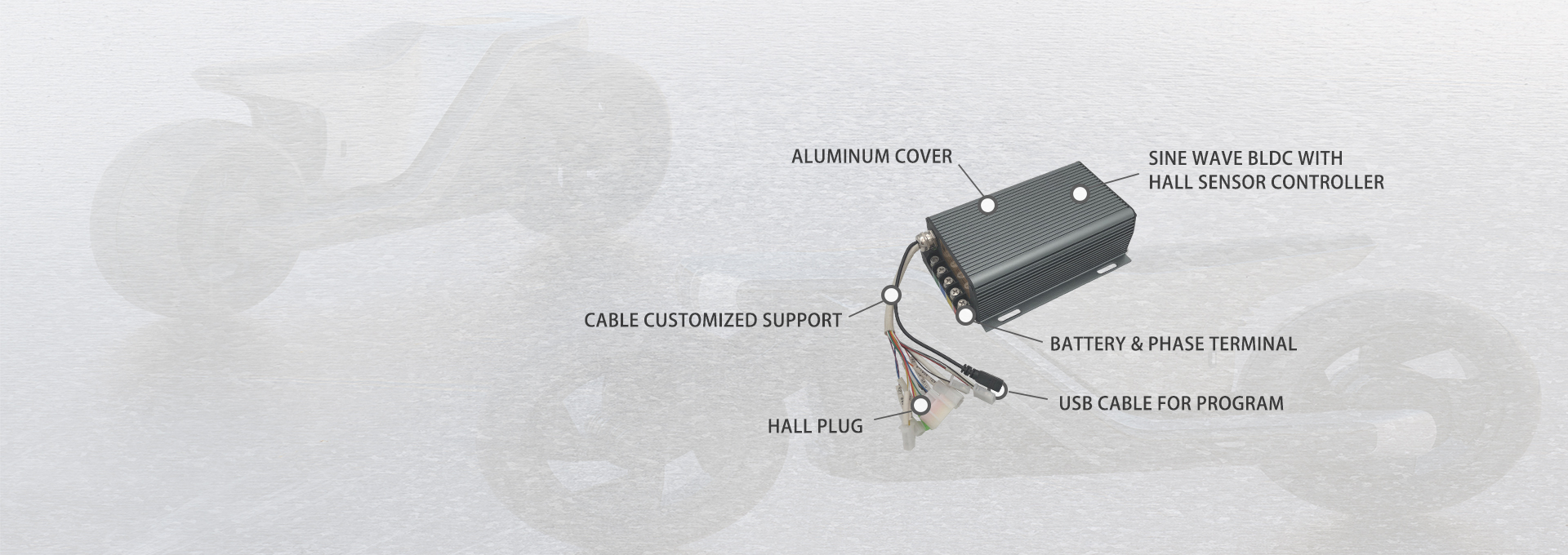

Controller design: sine wave controller, programmable by PC & Phone.
Speed: 25kmh-50kmh

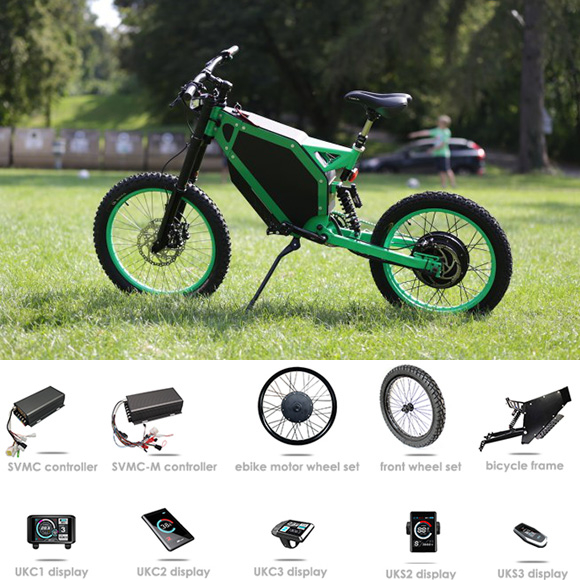

Electric Bicycle Use
Application: Electric Bicycle
Controller: SVMC7245, SVMC7260, SVMC7280, SVMC72100, SVMC72150, SVMC72200
Motor: 1000w-4000w brushless DC with Hall sensor type, phase angle 120 degree.
Front Wheel Set: Front: 24” double wall aluminium rim, or 17”;18”;19” aluminium motor rim
Rear Wheels with Motor: 17”;18”;19” aluminium moto rim
Display: Hall Display, UKC1 display, UKC2 display, UKC3 display, UKS2 display, UKS3 display
Commnucation Protocol: No.2/APT
SVMC7245-M V2 functions: Hall, Throttle, Light Power, PAS, Throttle, Alarm, Speed Limit, Low Brake, Three Speed, Display, Reverse, Phase wires, Power wires.
Controller design: sine wave controller, programmable by PC & Phone.
speed: 80kmh+/50mph+
Eco-mode top-speed: 25kmh for EU

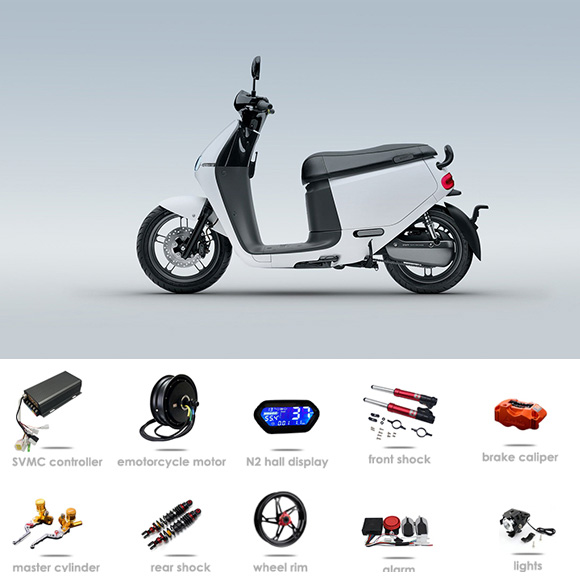

Electric Motorcycle Use
Application: Electric Scooter/Motorcycle
Controller: SVMC7245-SVMC72200, SVMC9650-SVMC96120
Motor: 1000w-4000w brushless DC with Hall sensor type, phase angle 120 degree.
Display: Hall Display
Functions: Hall, Ignition, Throttle, Temp Sensor KTY83-122, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed.
Controller design: sine wave controller, programmable by PC & Phone.
speed: 45kmh-120kmh
