Electric Bicycle Controller Kits - SVMC-M01

Sabvoton Controller offer the kits for convert electric bicycle, the 150A electric bike motor kits works together with 20" fat bike wheel set kits, TFT UKC1 display and PAS sensor. It's easy to connect with SVMC-M models controller, plug to plug directly. This Controller kits with sine wave controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for 45A e-bike controller kits, 20" fat bike wheel set kits, electric bicycle controller kits, BLDC bike motor controller kits,electric bicycle controller with display

• FOC 180 sabvoton controller SVMC72150 applied to BLDC motor or PMSM.
• Easy connect, BLDC bike motor controller kits
• Soft start and no noise
• Programmable by PC & Phone APP
• EBS & Regenerative function support
• OEM & ODM Service support

Contact Us

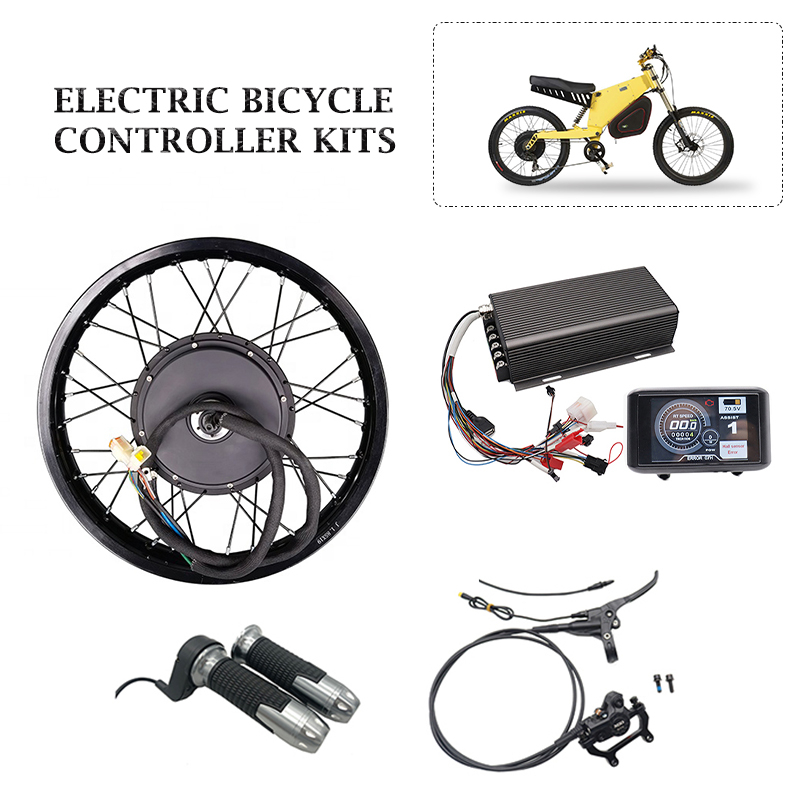

- Kits Including -

1) 18"-26" Electric bicycle wheel motor set, 3000w rated power
2) Sabvoton Controller SVMC72150-M V1 with USB cable

3) UKC1 Display
Electric Bicycle Rear Brake Set (Left Installation)
5) Twist Throttle

- Generally SPEC -

MQ(Sabvoton) sabvoton controller SVMC72150 - SVMC-M01

1) Motor: electric bicycle motor wheel set, 18" - 26" moped motorcycle rim or bicycle rim, power rated 3000w, 150mm drop-outs.
2) Controller Model: SVMC72150-M V1
3) Display Model: UKC1 display

4) Available Battery Voltage 48V-72V rated

5) Available Motor Power: 3000W

6) Peak DC Current: 150A
7) Phase Peak Current: 350A

8) Working Communication: Hall Sensor
9) Installation Size: 249mm * 147mm * 62 mm

10) Defaut Throttle Working Voltage: 0V - 5V

11) Controller Design: 150A electric bike motor kits, electric bicycle controller kits

12) APT Commnunication Protocol

 - Controller kits Design -

150A electric bike motor kits, programmable sine wave controller, With Hall Plug, 120 degree Phase Angle.

Functions: Hall, 0-5V Throttle, PAS, Alarm, Speed Limit, Low Brake, Display, Reverse.
