Electric Bicycle Controller Kits - SVMC45H01

Sabvoton Controller offer the kits for convert electric bicycle, the 45A sabvoton controller motor kits works together with 20" fat bike wheel set kits, H6 display and PAS sensor. It's easy to connect with SVMC-M models controller, plug to plug directly. This Controller kits with sine wave controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for 45A e-bike controller kits, 20" fat bike wheel set kits, electric bicycle controller kits, 45A sabvoton controller motor kits,ncyclebike motor kits

• FOC 180 sabvoton controller SVMC7245 applied to BLDC motor or PMSM.
• Easy connect, BLDC bike motor controller kits
• Soft start and no noise
• Programmable by PC & Phone APP
• EBS & Regenerative function support
• OEM & ODM Service support,
ncyclebike motor kits OEM

Contact Us

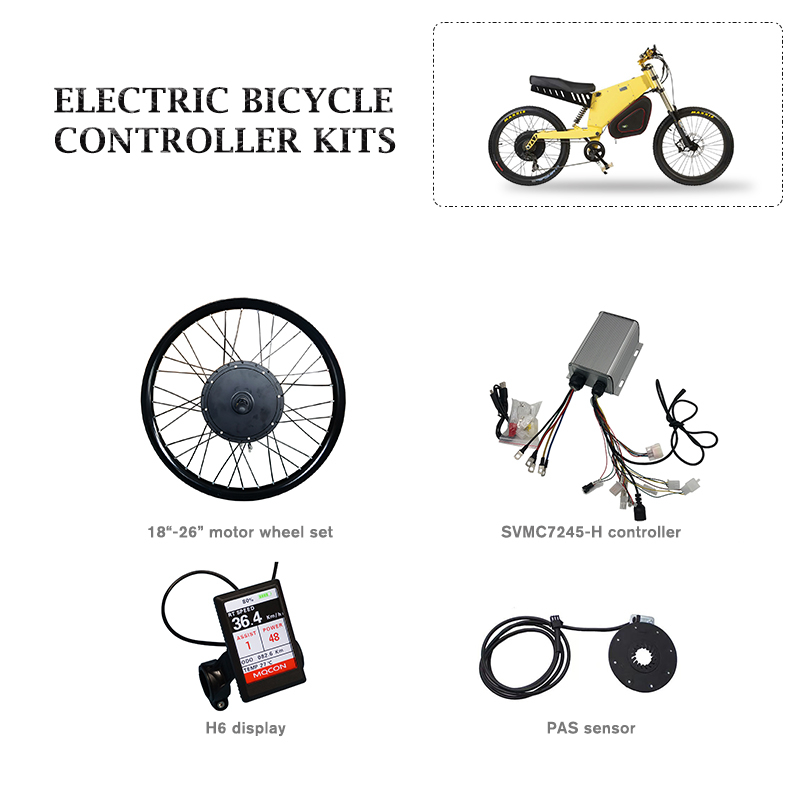

- Kits Including -

1) 18"-26" Electric bicycle wheel motor set, 500w-1500w rated power optional
2) Sabvoton Controller SVMC7245-H

2) H6 Display
3) PAS Sensor

- Generally SPEC -

MQ(Sabvoton) sabvoton controller SVMC7245 - SVMC45H01

1) Motor: electric bicycle motor wheel set, 18" - 26" moped motorcycle rim, bicycle rim, customized work support. power 500w-1500w for choice. 135mm drop-outs.
2) Controller Model: SVMC7245-H V1
2) Display Model:  H6 display
3) PAS sensor with 8 magnet design

4) Available Battery Voltage 36V-72V rated

5) Available Motor Power 1000w-1500W

7) DC Current 45A

7) Working Communication Hall Sensor

8) Defaut Throttle Working Voltage 0V - 5V

9) Controller Design: 45A electric bike motor kits, 45A sabvoton controller motor kits

13) No.2 Commnunication Protocol

 - Controller kits Design -

45A electric bike motor kits, programmable sine wave controller, With Hall Plug, 120 degree Phase Angle.

Functions: Hall,  Throttle, Light Power, PAS, Throttle, Alarm, Speed Limit, Low Brake, Three Speed, Display, Reverse, Phase wires, Power wires.
