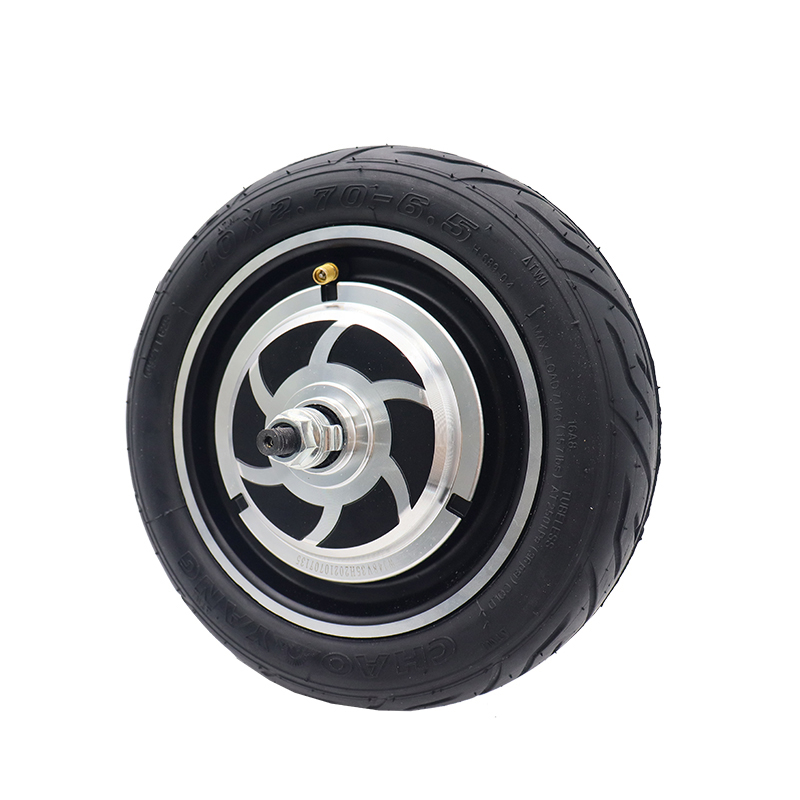

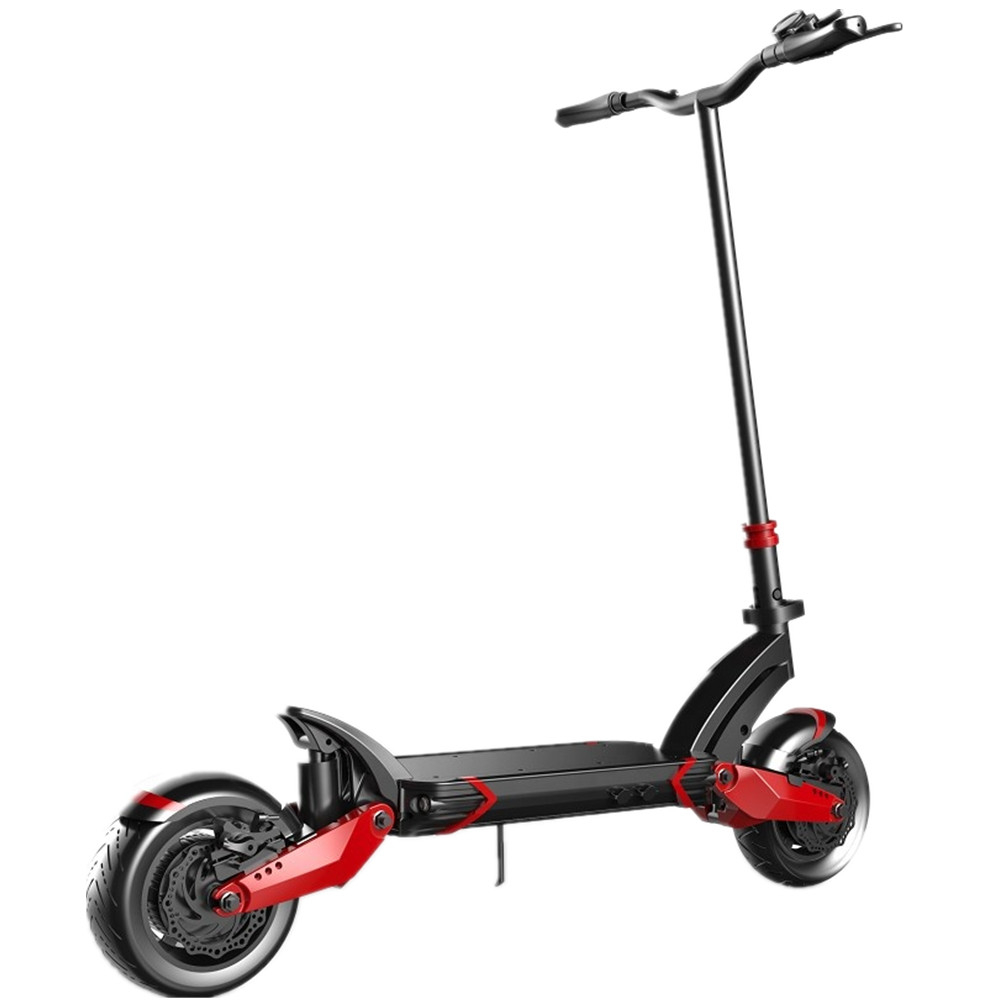

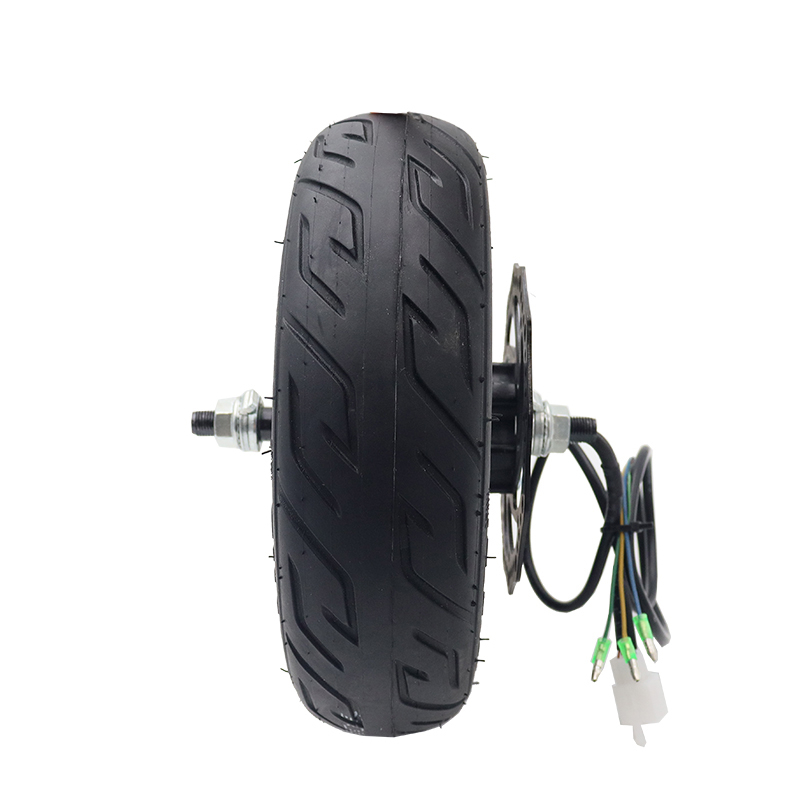

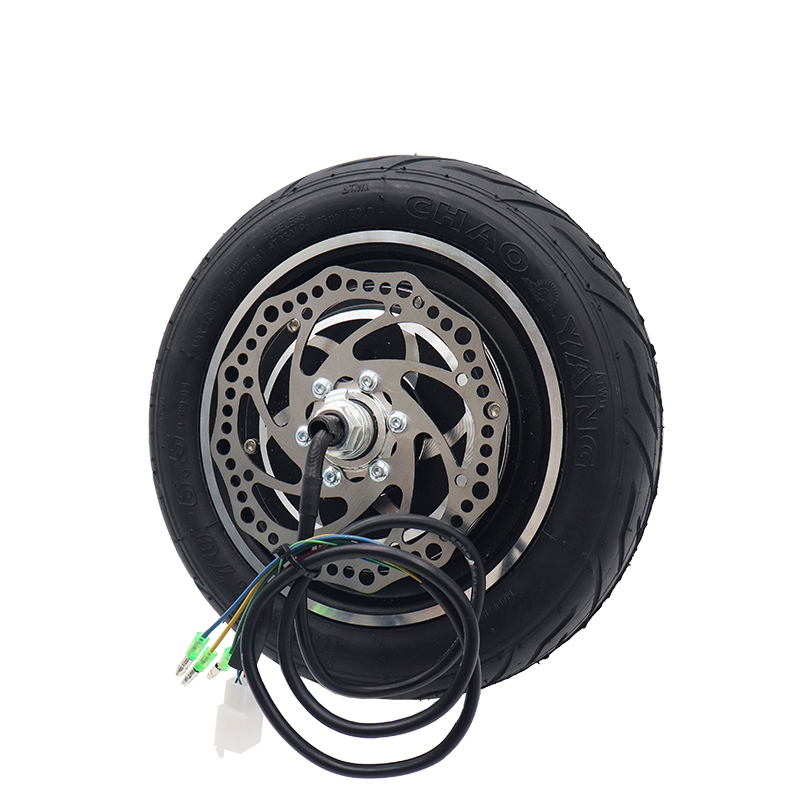

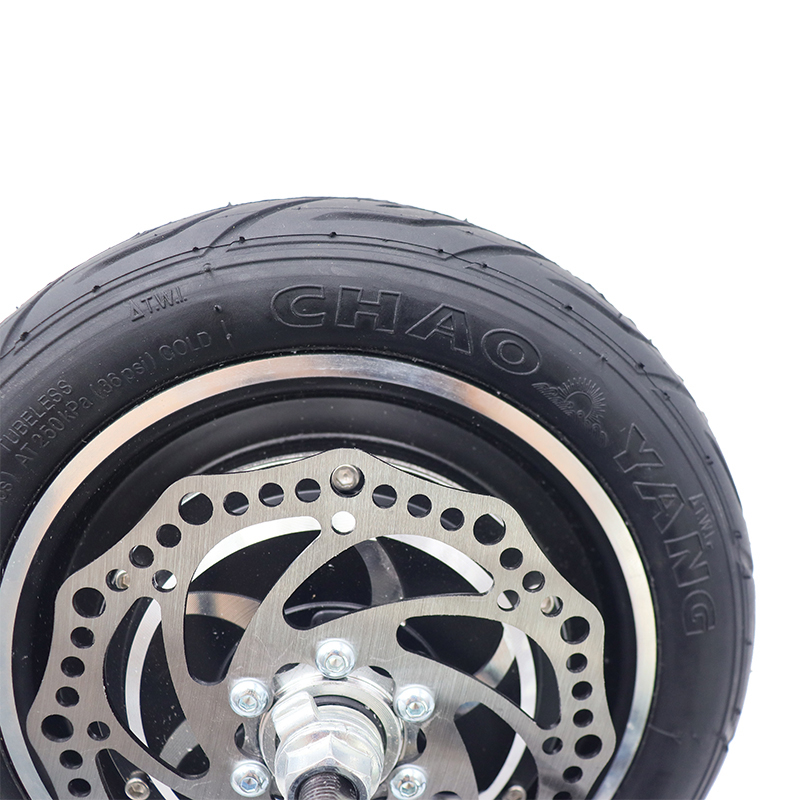

Sabvoton controller with accessories for convert purpose, the electric scooter motor wheel set is work for Sabvoton controller SVMC-M & SVMC-H models. The e-scooter motor is suitable for most electrical appliances like electric scooter. Motor Power could be 250w-500w rated.
electric scooter motor#500w escooter motor#25kmh electric scooter motor#36v 48v scooter motor#bldc escooter motor
OVERVIEW
- SPEC -

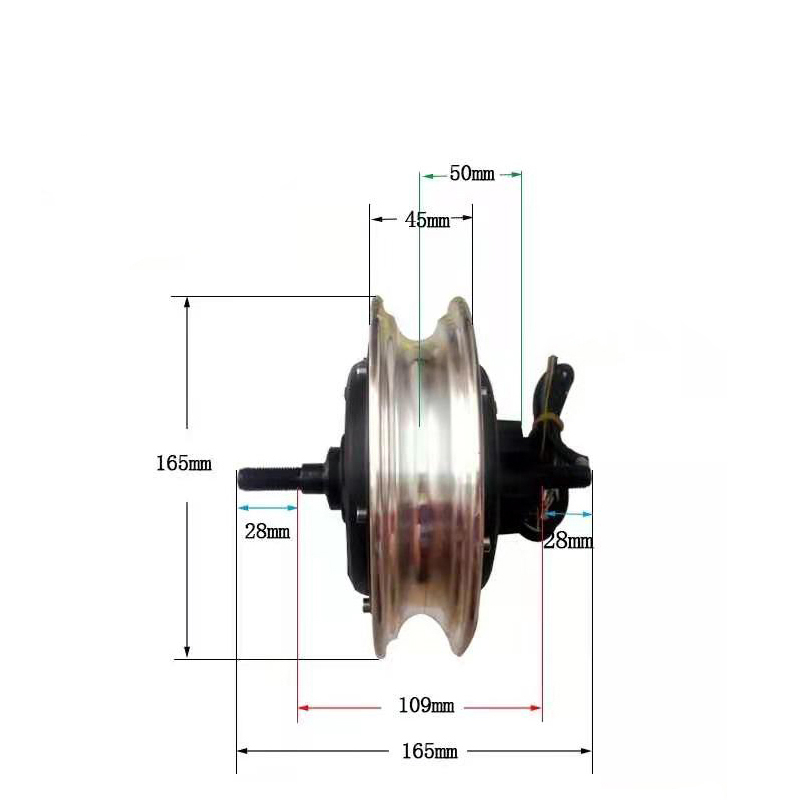

1) Motor Design: Electric Scooter Motor BLDC type with Hall sensor
2) Motor Power: Rated 250w-500w
3) Motor Voltage: 36v-48v
4) Speed: 25kmh-40kmh
5) Drop-outs: 110mm.
6) Max. Effience: 84% - 90%
7) Wiring Out: Three phases & Five Hall cable
8) Tire: 10X2.70 Tubeless tire
9) Diameter with tire: 250 mm
10) Alxe Length: 170mm,12mm axle flats
11) Brake type: Disc brake (as default)
