30A Sabvoton Controller SM Serial Model are unprogrammable 30A sine wave controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric motorcycles more comfortable and easier to control. Our designed worked well for BLDC hall sensor motor, cheap sine wave controller, BLDC controller, hall sensor motor controller,30A electric scooter controller

• FOC 180 sinusoidal drive controller applied to BLDC motor or PMSM.
• Easy connect
• Soft start and no noise
• EBS & Regenerative function support
• OEM & ODM Service support

Contact Us


- Generally SPEC -

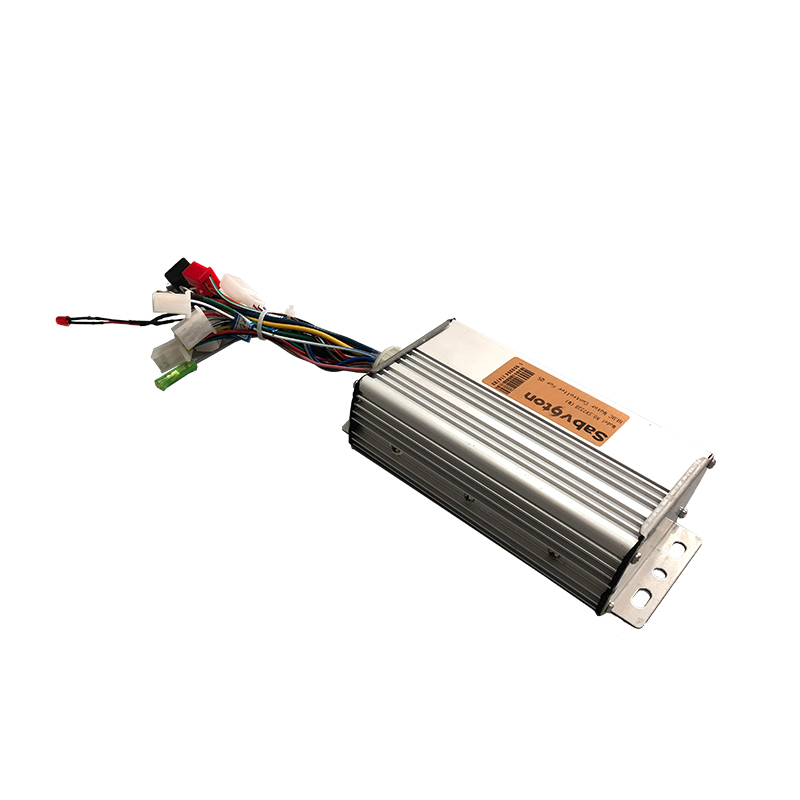

MQ(Sabvoton) Brusless DC Motor Controller - SM4830

1) Model SM4830

2) Available Battery Voltage 24V-48V

3) Available Motor Power 500-600W

4) Phase Peak Current 90A

5) DC Current 30A

6) Working Communication Hall Sensor

7) Instaliing Size 155mm * 80mm * 43mm

8) Weight 0.5 kgs

9) Defaut Throttle Working Voltage 0V - 5V

10) Mosfets Detail 12 FET

11) Case Material / Color Aluminum / Gray-Black

12) Controller Design: 30A electric scooter controller, cheap sine wave controller

13) Match with SW900 LCD display

 - Controller Design -

hall sensor motor controller, programmable sine wave controller, With Hall Plug, 120 degree Phase Angle.

Functions: Hall, Throttle, Low Brake, PAS, Display, Three Phase Wires, Power Cables B+/ B-

#30A sabvoton controller#30A sine wave controller #cheap sine wave controller#30A electric scooter controller#hall sensor motor controller
