Sabvoton Controller SM Serial Model are unprogrammable 18A sine wave controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric motorcycles more comfortable and easier to control. Our designed worked well for BLDC hall sensor motor, cheap sine wave controller,18A sine wave controller, hall sensor motor controller,electric scooter controller
.
• FOC 180 sinusoidal drive controller applied to BLDC motor or PMSM.
• Easy connect
• Soft start and no noise
• EBS & Regenerative function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

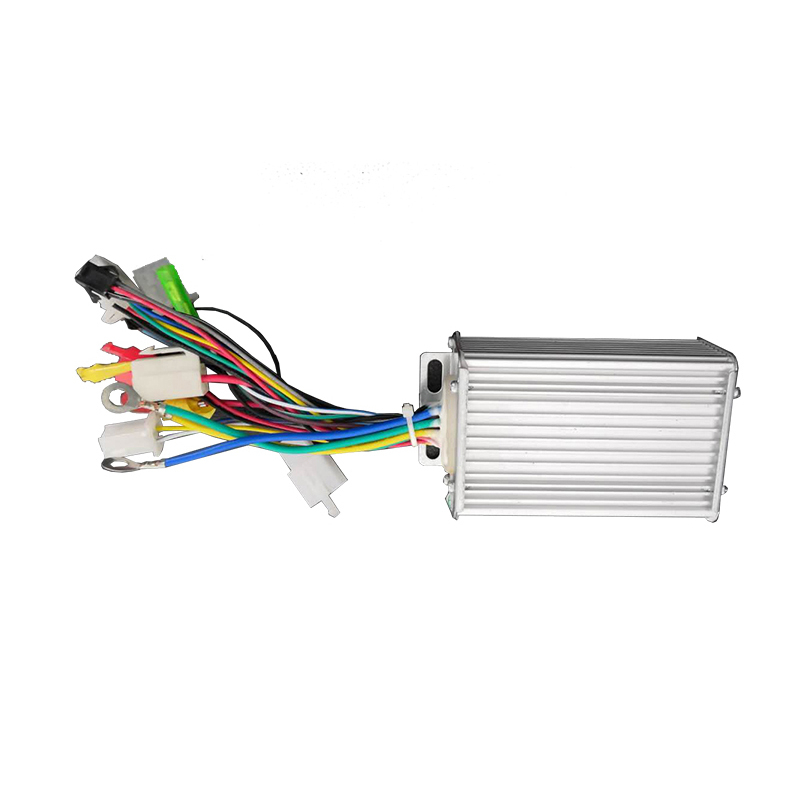

MQ(Sabvoton) Brusless DC Motor Controller - SM4818
1) Model SM4818
2) Available Battery Voltage 24V-48V
3) Available Motor Power 250-350W
4) Phase Peak Current 50A
5) DC Current 18A
6) Working Communication Hall Sensor
7) Instaliing Size 103mm * 65mm * 35mm
8) Weight 0.3 kgs
9) Defaut Throttle Working Voltage 0V - 5V
10) Mosfets Detail 6 FET
11) Case Material / Color Aluminum / Gray-Black
12) Controller Design Sine Wave Brushless DC Motor Controller, cheap sine wave controller
13) Match with SW900 LCD display
- Controller Design -
hall sensor motor controller, programmable sine wave controller, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Throttle, Low Brake, PAS, Display, Three Phase Wires, Power Cables B+/ B-
