Sabvoton controller with accessories for convert purpose, the UKC3 display is work for Sabvoton controller SVMC-H & SVMC-M series controller using. It's easy to connect with SVMC-H & SVMC-M controller, plug to plug connect with waterproof 5pins Julet Cable.
OVERVIEW

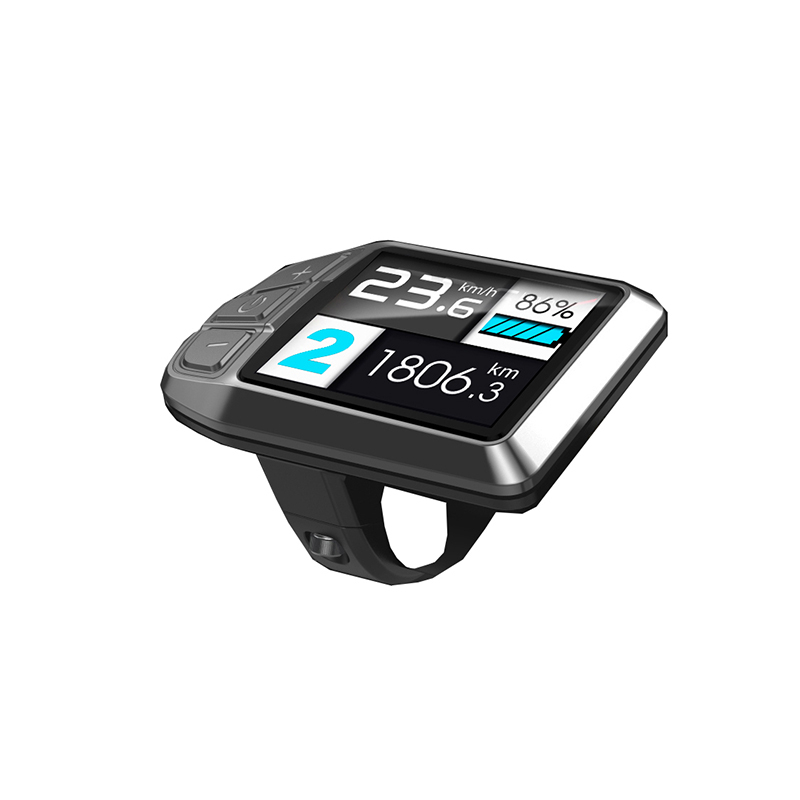

This UKC3 Display is ONLY suitable for Sabvoton SVMC-H & SVMC-M series programmable controller with display funtion.
- SPEC -
1) 1.77 inch IPS screen
2) 24V/36V/48/52V battery supply
3) Rated power of instrument :1W
4) Off leakage current<1uA
5) Working current supplied to controller:100mA, Max output current to controller: 300mA
6) Operating temperature: -20~70℃
7) Storage temperature: -30~80℃
Sabvoton SVMC-H display,UKC3 display,APT display,XSW2 display, 48v electric scooter display,electric bicycle display,48v electric bicycle display
