UKC2 display|Accessories

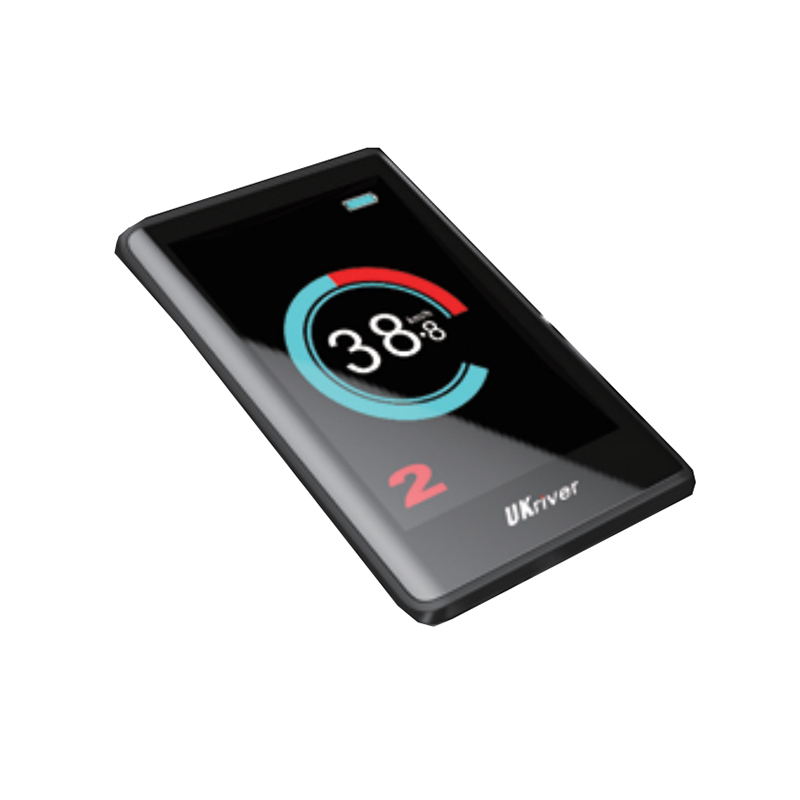

UKC2 display

Sabvoton controller with accessories for convert purpose, the UKC2 display is work for Sabvoton controller SVMC-H & SVMC-M series controller using. It's easy to connect with SVMC-H & SVMC-M controller, plug to plug connect with waterproof 5pins Julet Cable.

Sabvoton TFT display,UKC2 display,APT display,XSW2 display,electric scooter display,electric bicycle display,72v electric bicycle display

OVERVIEW

This UKC2 Display is ONLY suitable for Sabvoton SVMC-H & SVMC-M series programmable controller with display funtion.

- SPEC -

1) 3.5 inch IPS screen

2) 24V/36V/48V/52v/60v/72v battery supply

3) Rated operating current : 40mA

4) Max operating current : 100mA (36V battery ,charging state when using external USB equipment )

5) USB charging port : 5V 500mA

6) Off leakage current < 1uA

7) Max output current to controller : 100mA

8) Operating temperature : -20～70℃, Storage temperature : -30～80℃

Sabvoton TFT display,UKC2 display,APT display,XSW2 display,electric scooter display,electric bicycle display,72v electric bicycle display

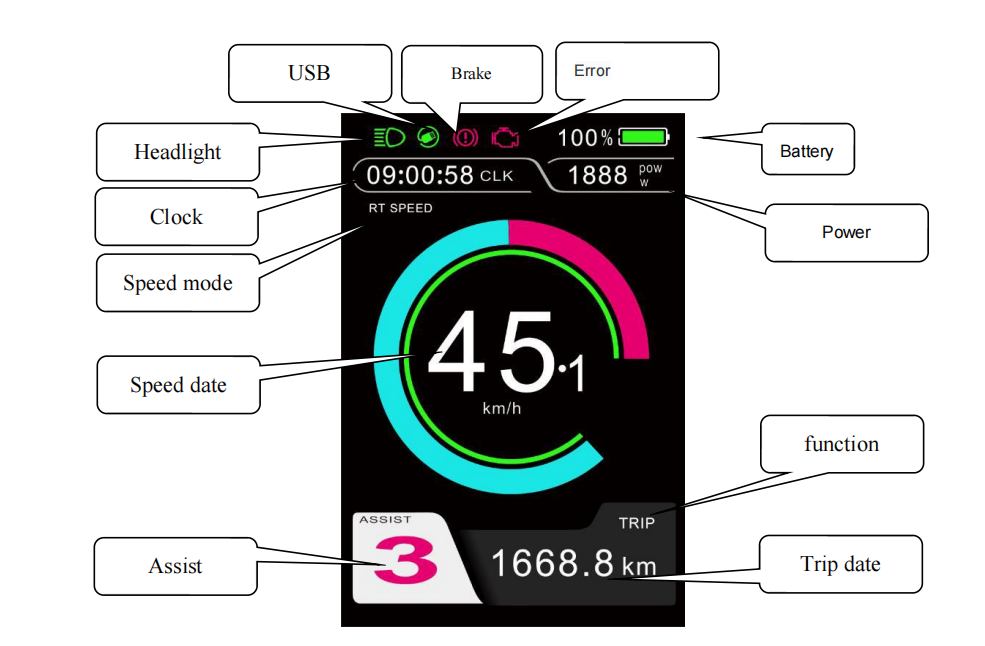

C2 1.png
