DC-DC Convertor|Accessories

DC-DC Convertor

Sabvoton controller with accessories for convert purpose, the DC-DC convertor is work for Sabvoton controller using. The DC converter is suitable for most electrical appliances with 12v input voltage, such as speakers, light bulbs, car navigation, cameras, etc.

- Features -

Overvoltage protection
Overcurrent protection
Overheat protection
Short-circuit protection
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Waterproof design
Waterproof full-potting

72v-12v DC-DC convertor,10A DC-DC convertor,electric bike DC-DC convertor, DC-DC convertor, waterproof DC convertor

OVERVIEW

- SPEC -

1)Model: TB10A/15A/20A(no plugs)

2)Material: Alumnium Shell
3)Input Volt: 48V-72V(40v-90v)
4)Output Volt: DC12V
5)Output power: 10A, 15A, 20A for choice
6)Waterproof Grade: IP67
7)Size(mm): 74 x 74 x 32
8)Pitch of holes:65mm
9)Hole Diameter:5mm

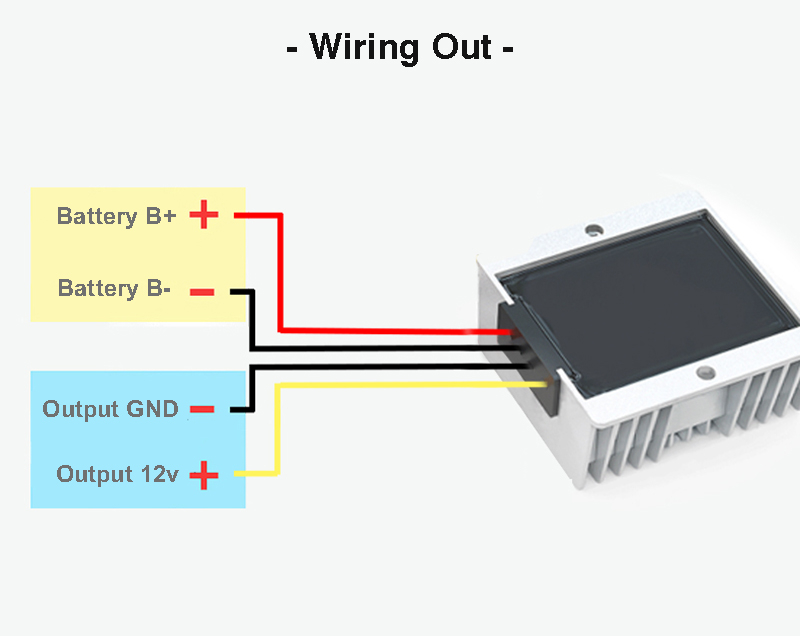

10)Wiring out: 10cm
11)weight: 0.28Kg/piece
12)working temperature: (-40 °C-80°C) when it is more than 40°C,please make lower power, or enhance heat dissipation

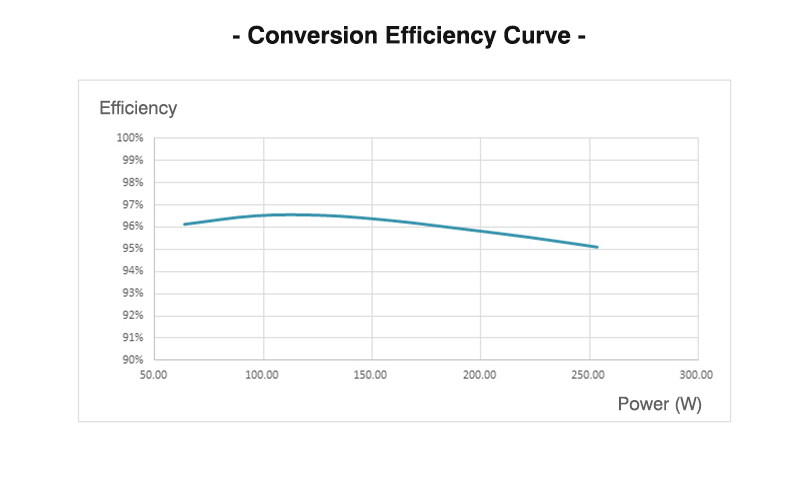

13)Max. Effiency: 95%
