Sabvoton controller with accessories for convert purpose, the 750C display is work for Sabvoton controller SVMC-H or SVMC-M series controller using. It's easy to connect with SVMC-H or SVMC-M controller, plug to plug connect with waterproof 5pins Julet Cable.
OVERVIEW
This 750C Display is ONLY suitable for Sabvoton SVMC-H or SVMC-M series programmable controller with display funtion.
- SPEC -
1) TFT750C Colorful E-Bike Display
2) Screen Size: 3.2 inch
3) Voltage: DC 24V/36V/48V/52V, 60V-72V should be customzied.
4) Speed Limit: 99km/h
5) Brightness: 5-level
6) PAS Speed Level: 3-level/5-level/9-level

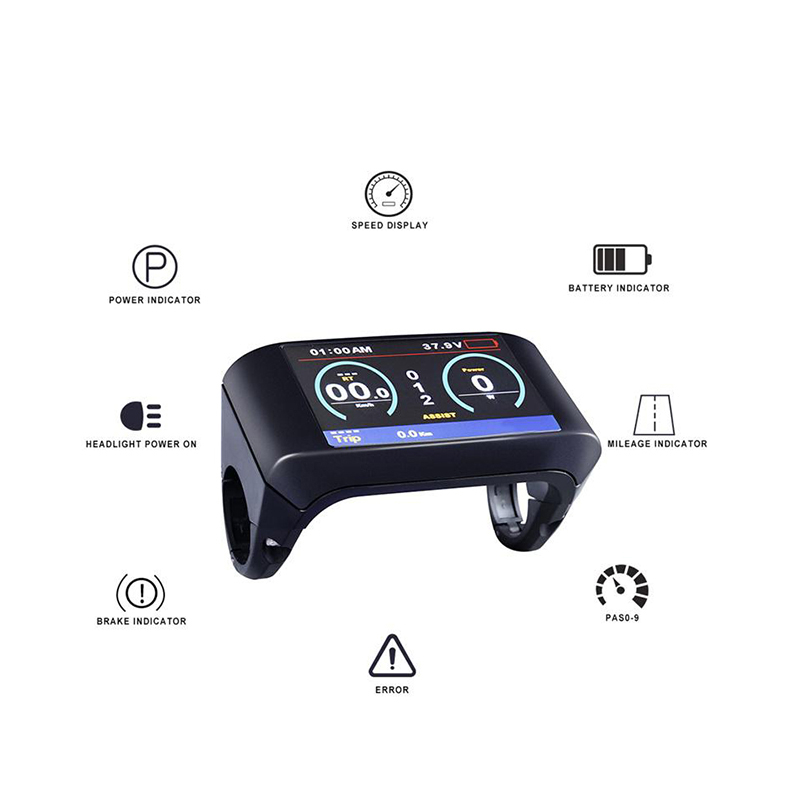

7) Show Battery level, speed, distance, power, and more
8) Protocol: UART
9) High-contrast IPS Colorful Matrix Display
10) Compatible with Sabvoton controller SVMC-M series.
11) Waterproof: IP65
12) Operation Temperature: -20～70℃
13) Storage Temperature: -30～80℃
14) Suitable Handlebar Diameter: φ22.5/25.4/31.8mm
15) Press Key cable length: 24.5cm
16) Power cable length: 46cm
17) Plug Type: 5-pin waterproof quick release male

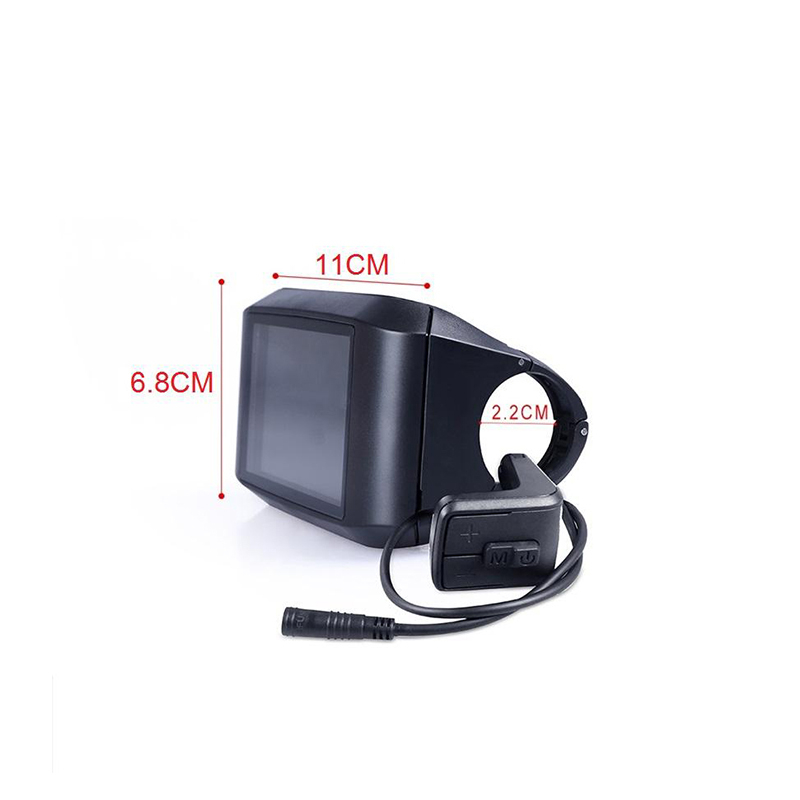

18) Size: (W)110mm x (H)68mm (4.33x2.68 inch)
19) Weight: 350g
