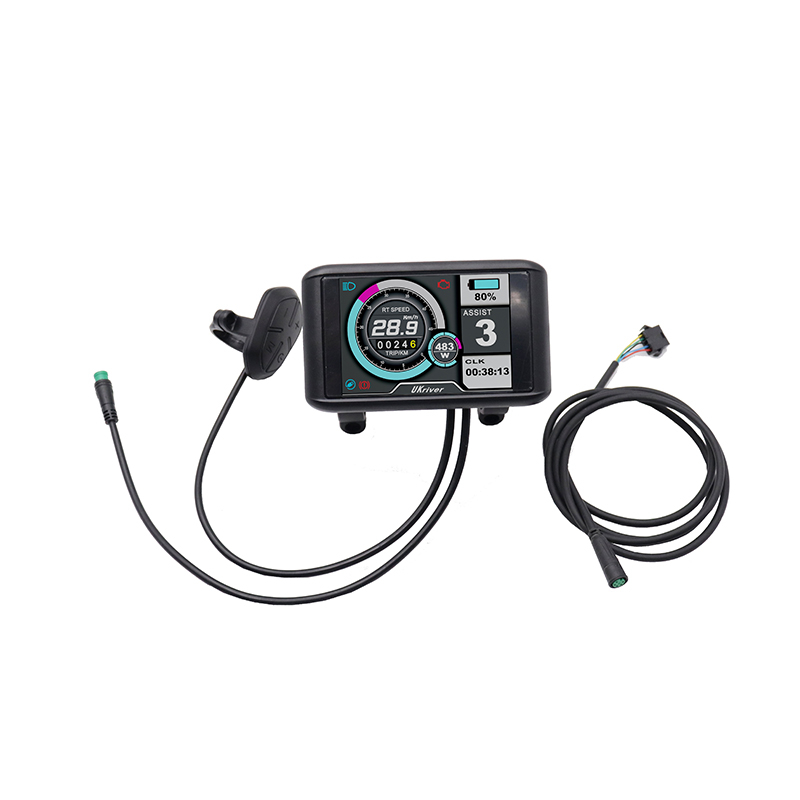

Sabvoton controller with accessories for convert purpose, the UKC1 display is work for Sabvoton controller SVMC-H & SVMC-M series controller using. It's easy to connect with SVMC-H & SVMC-M controller, plug to plug connect with waterproof 5pins Julet Cable.
OVERVIEW
This UKC1 Display is ONLY suitable for Sabvoton SVMC-H & SVMC-M series programmable controller with display funtion.
- SPEC -
1) 3.5 inch IPS screen, UKC1 Display
2) 36V/48V/60V/72V battery supply
3) Rated operating current : 40mA
4) Max operating current : 100mA (36V battery, charging state when using external USB equipment )
5) USB charging port : 5V 500mA
6) Off leakage current < 1uA
7) Max output current to controller : 100mA
8) Operating temperature : -20～70℃
9) Storage temperature : -30～80℃
