UKS3 Display|Accessories

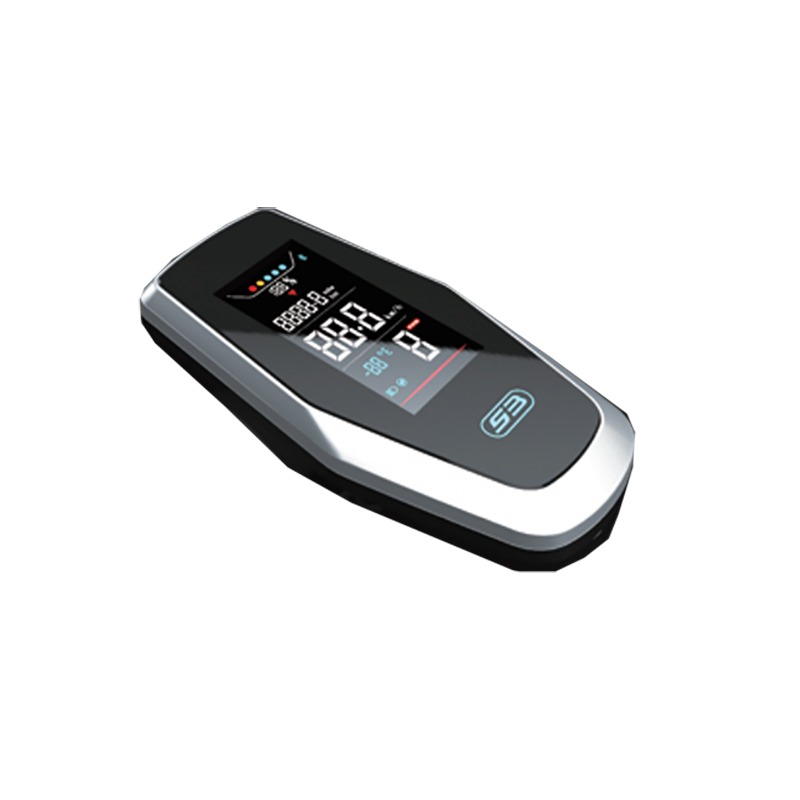

UKS3 Display

Sabvoton controller with accessories for convert purpose, the UKS3 display is work for Sabvoton controller SVMC-H & SVMC-M series controller using. It's easy to connect with SVMC-H & SVMC-M controller, plug to plug connect with waterproof 5pins Julet Cable.

Sabvoton SVMC-H display,UKS3 display,APT display,XSW2 display,electric scooter display,electric bicycle display

OVERVIEW

This UKS3 Display is ONLY suitable for Sabvoton SVMC-H & SVMC-M series programmable controller with display funtion.

- SPEC -

1) 24V/36V/48V/60V/72V/UBE power supply
2) Rated power 1W
3) USB charge DC 5V 500mA
4) Power off leak currant<1uA
5) Controller supply work currant 100mA, peak lower than 300mA
6) Operating temperature -20～70℃
7) Storage temperature -30～80℃
