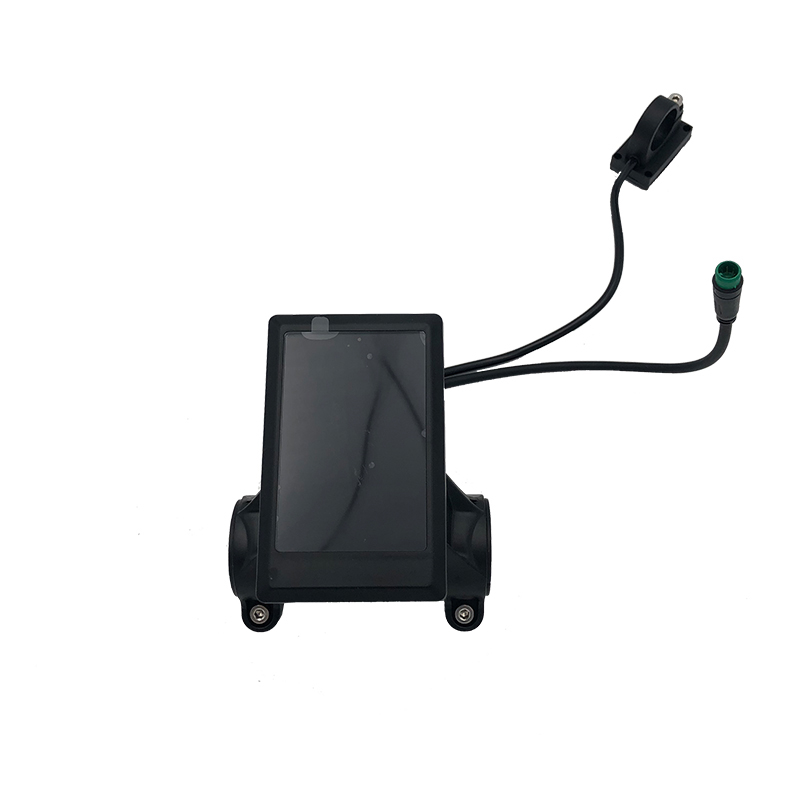

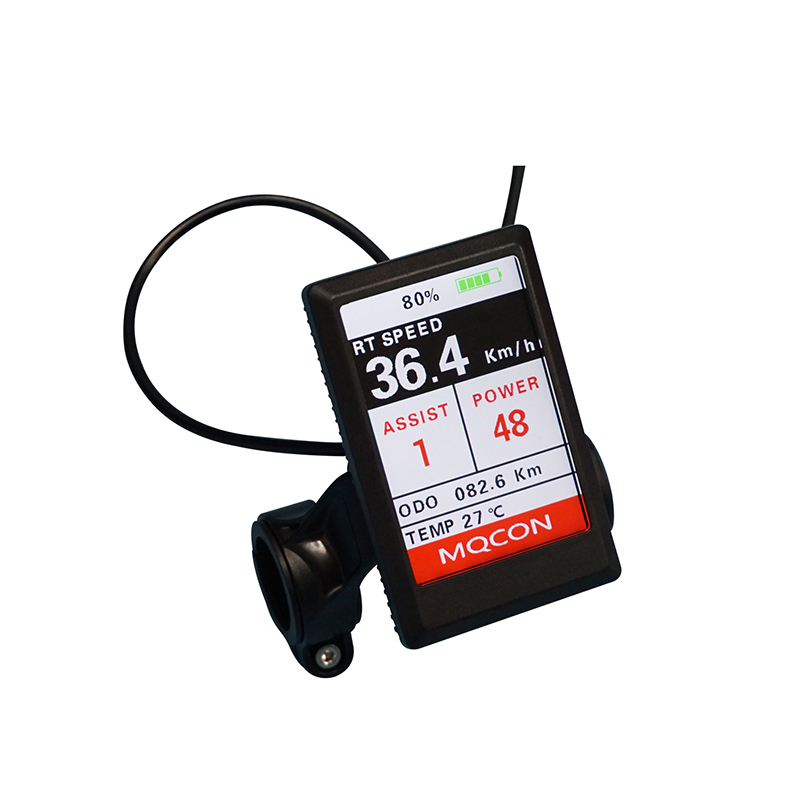

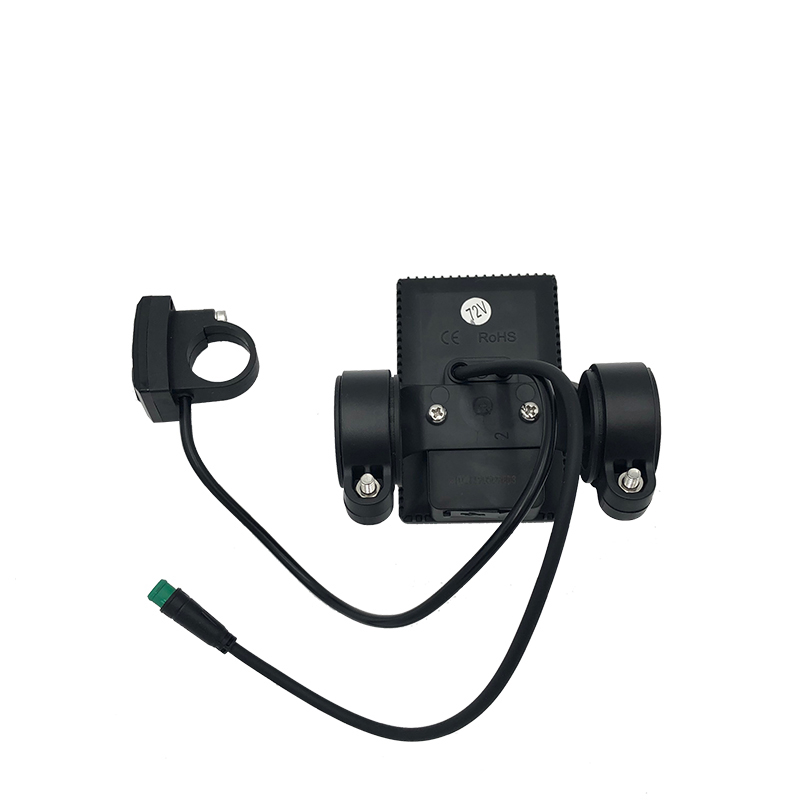

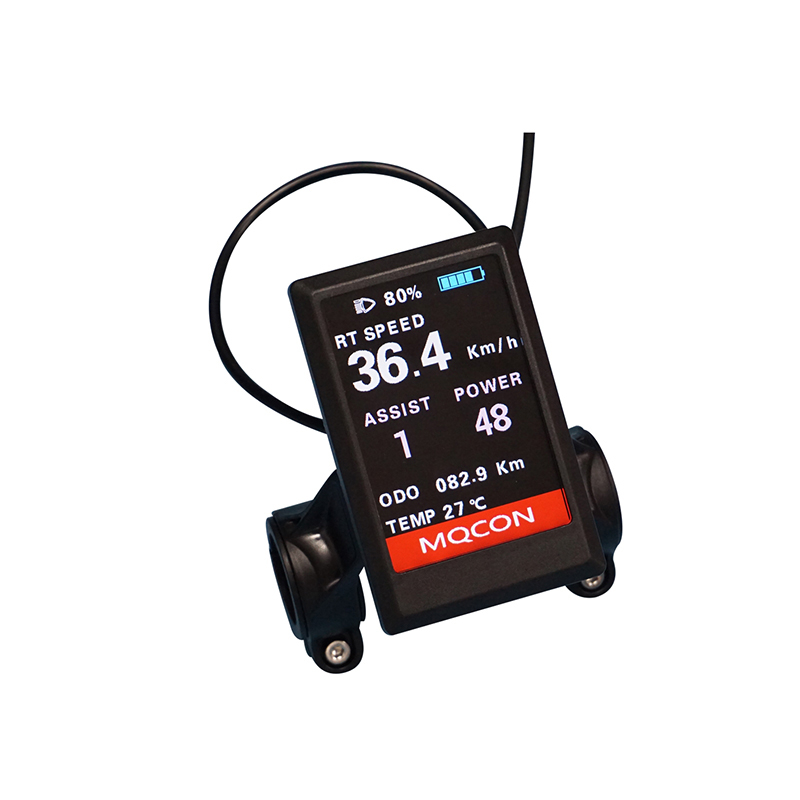

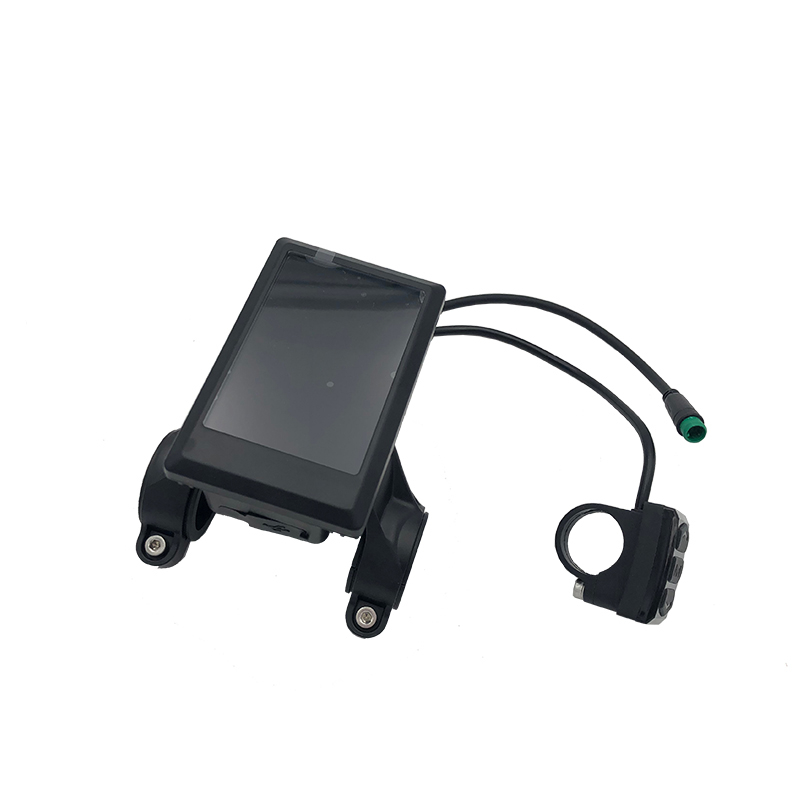

This TFT H6 Display is ONLY suitable for Sabvoton SVMC-H6 series programmable controller with new TFT H6 display funtion. It's different wiring with other TFT meter.

- SPEC -
3.2 inch color TFT screen
48V/60V/72V power supply
Shutdown leakage current<1Ua
Supply controller terminal operating current 100mA
Normal operating temperature of the instrument -20~65°C

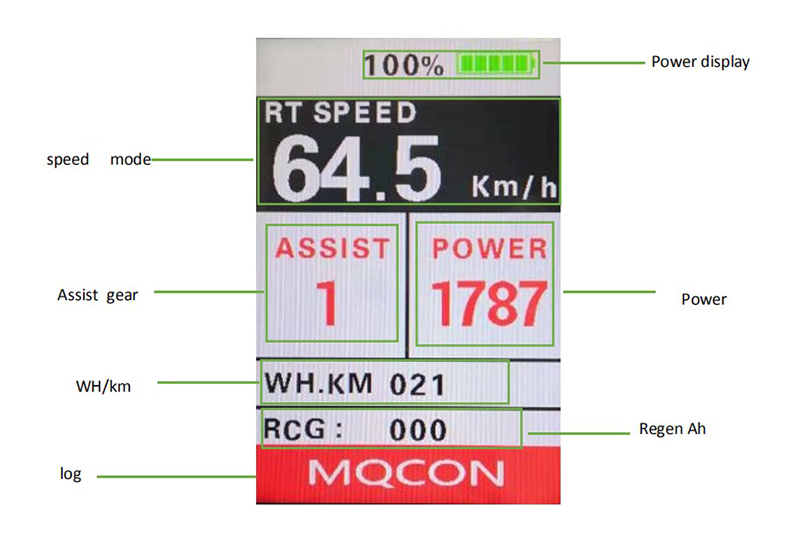

Speed display: real-time speed RT SPEED,maximum speed MAX SPEED, average speed AVG SPEED
km/mile: can be set according to user habits
Battery indicator: Provides a stable power display through the optimization algorithm, the power is not affected by the motor stop
Backlight brightness level 5 adjustment: can be set according to user habits, level 1 darkest level 5 is the brightest
9-speed control: can be set according to user needs, 3/5/9 files
Motor Temp: monitor motor temperature in real time, the old H6 display without this function.
Regen Ah: Cumulative Ah while controller in regen mode, the old H6 display without this function.
WH/KM: the controller power consumption ,wh/km, the old H6 display without this function.
Mileage: accumulated mileage ODO, single mileage Trip,cruising range Time.
