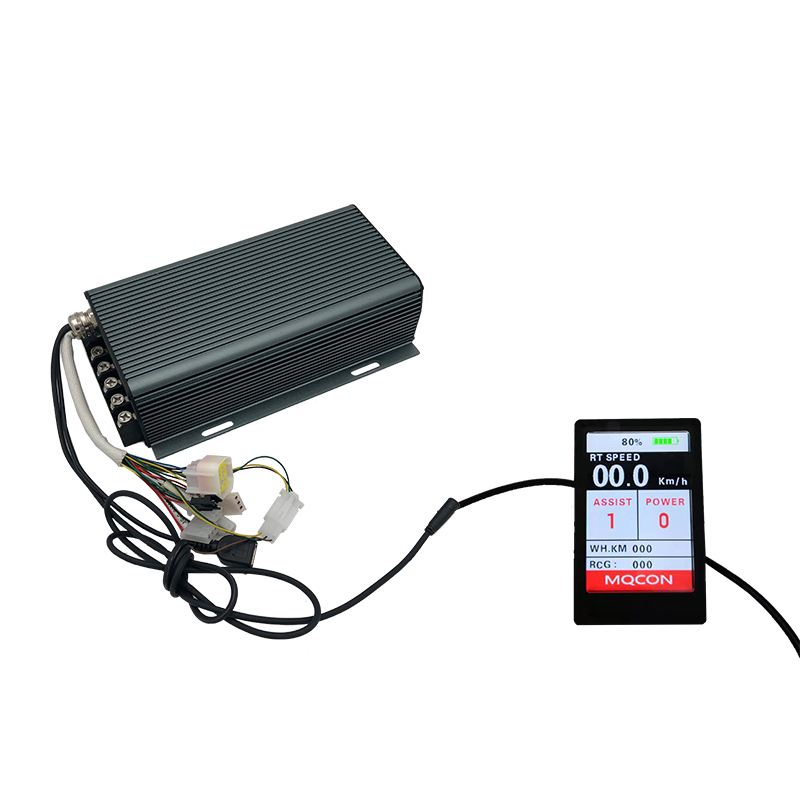

Sabvoton SVMC72150 Controller SVMC-H Serial Model are programmable sine wave controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Powerful 4kw motor controller150A ebike motor controller, 150A BLDC controller, ebike PAS controller, bldc gearless controller,150A 72V Sine wave controller.

•FOC 180 150A BLDC controller applied to BLDCM or PMSM.
•Easy connect
•Soft start and no noise
•Programmable by PC and Phone
•EBS & Regenerative function support
•Flux Weakening function support
•OEM & ODM Service support

Contact Us


- Generally SPEC -

MQ(Sabvoton) 150A ebike motor controller- SVMC72150-H
1) Model: SVMC72150-H
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 2KW - 3KW
4) Peak
DC Current: 150A
Phase Peak Current: 350A
6) Working Communication: Hall Sensor
7) Installation Size: 247mm * 147mm * 62mm
8) Weight: 2.2kg
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24FET
11) Case Material: Aluminum
12) Controller Design: Sabvoton SVMC72150 Controller,powerful 4kw motor controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC

- Controller Design -

Programmable Sine Wave Controller, Sine Wave, Programmable, With Hall Plug, 120 degree Phase Angle.
Hall, Ignition, 0-5V Throttle, PAS, High Brake, Low Brake, 0-5V E-Brake, Reverse, H6 Display(NO.2 protocol), USB Port.

#Sabvoton SVMC72150 Controller#powerful 4kw motor controller#programmable sine wave controller#150A ebike motor controller#150A BLDC controller
