SVMC7245-H|SVMC-M Models

SVMC7245-H

Sabvoton Controller SVMC-H Serial Model are programmable 45A bicycle motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Risun Motor Controller 45A, 1000w Electric Scooter Controller, sine wave controller, bldc gearless controller,45A electric scooter controller

• FOC 180 sine wave controller applied to BLDC motor or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support, OEM for Risun Motor Controller 45A

OVERVIEW

- Generally SPEC -

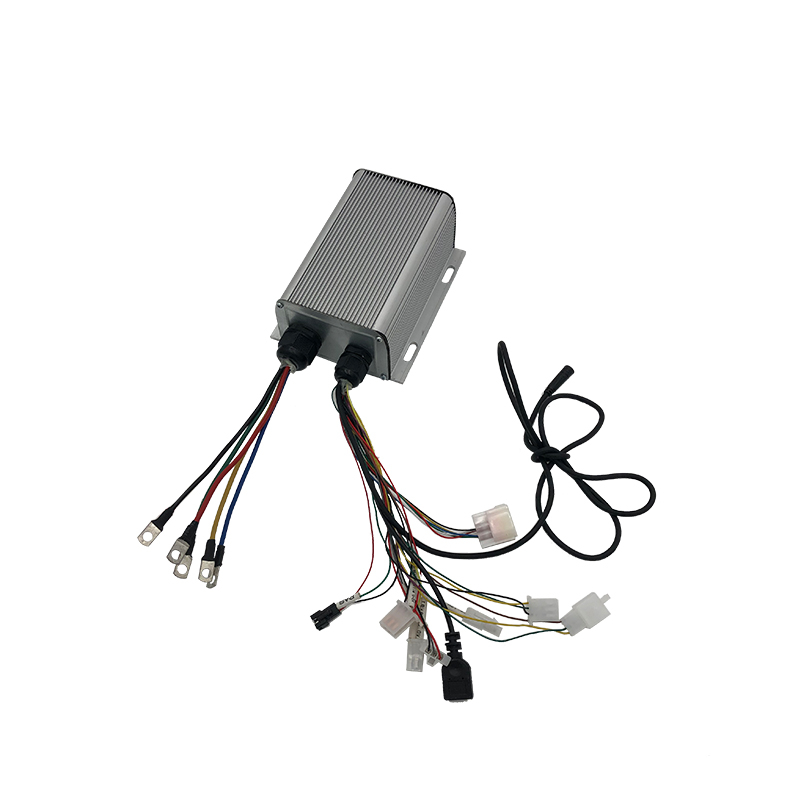

MQ(Sabvoton) 45A bicycle motor controller - SVMC7245-H
1) Model: SVMC7245-H
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 0.8KW - 1KW
4) Peak DC Current: 45A
5) Phase Peak Current: 135A
6) Working Communication: Hall Sensor
7) Installation Size: 185mm * 120mm * 62 mm
8) Weight: 1.2kg
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 12FET
11) Case Material: Aluminum
12) Controller Design: 1000w Electric Scooter Controller, 45A electric scooter controller

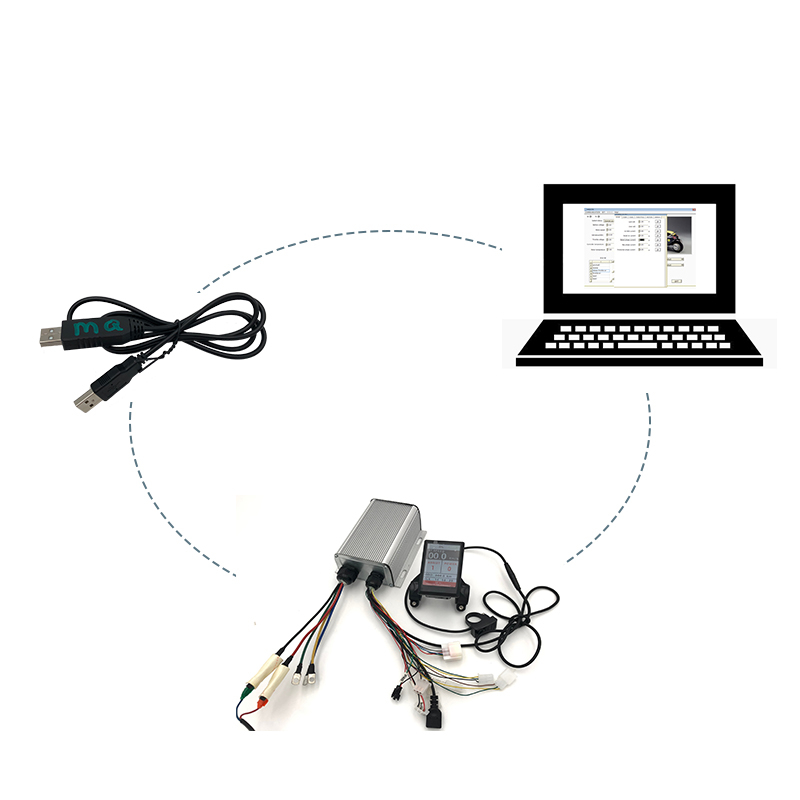

13) Support Programmable by PC & Phone
14) Certification: CE, CCC

- Controller Design -

Risun Motor Controller 45A, Sine Wave, Programmable, With Hall Plug, 120 degree Phase Angle.

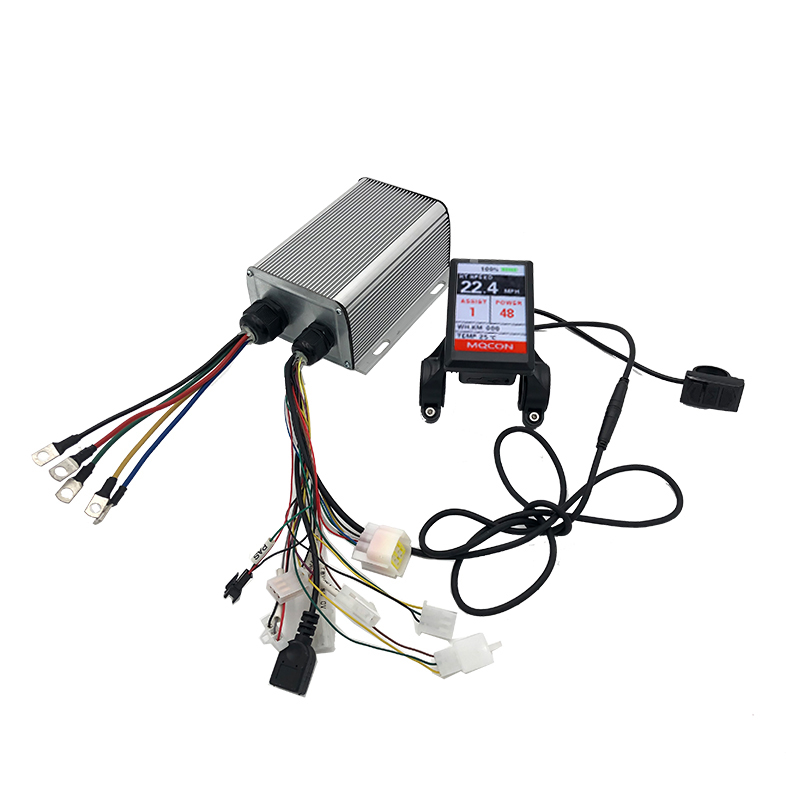

Functions: Hall, Ignition, 0-5V Throttle, High Brake, Low Brake, 0-5V E-Brake, Reverse, H6 Display(No.2 protocol), Program Port.
