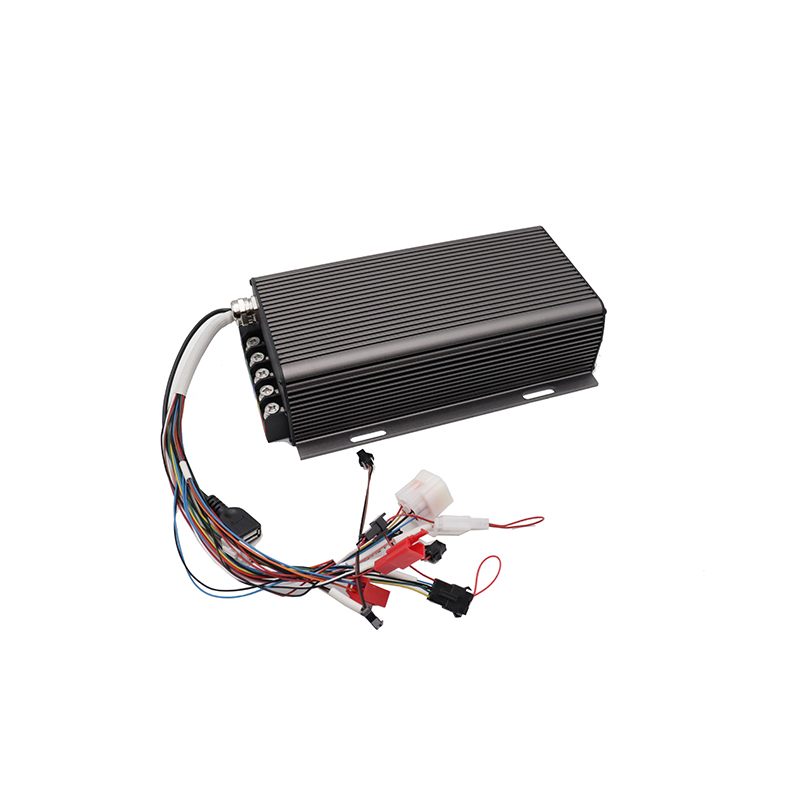

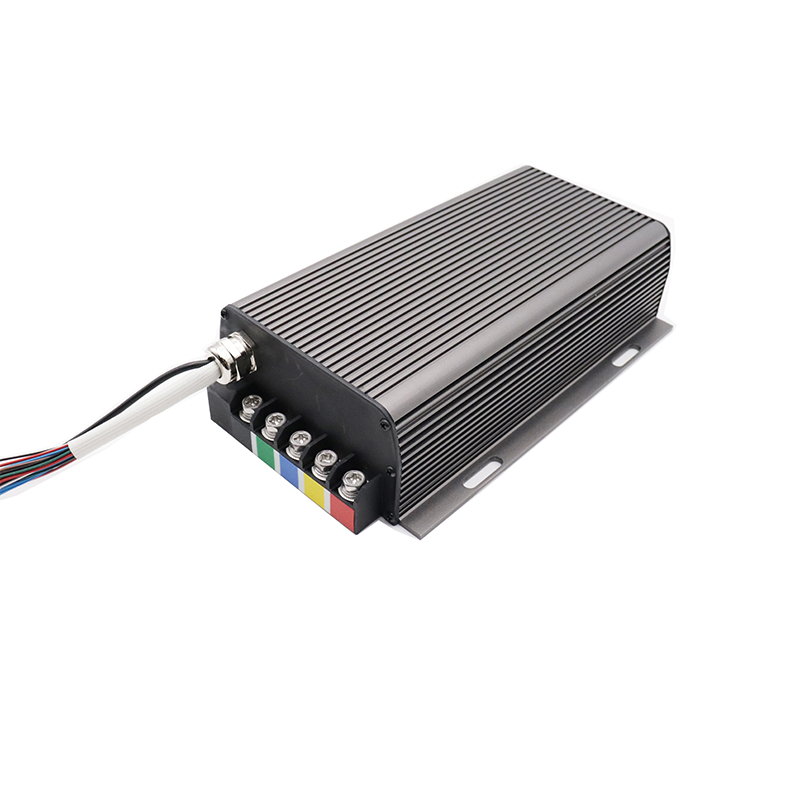

Sabvoton Controller SVMC-M Serial Model are programmable Powerful 4kw bicycle controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. 150A sine wave controller, powerful 4kw bicycle controller, QS 3kw spoke motor controller, ebike controller, risun motor Controller.
• FOC 180 QS 3kw spoke motor controller applied to BLDC or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

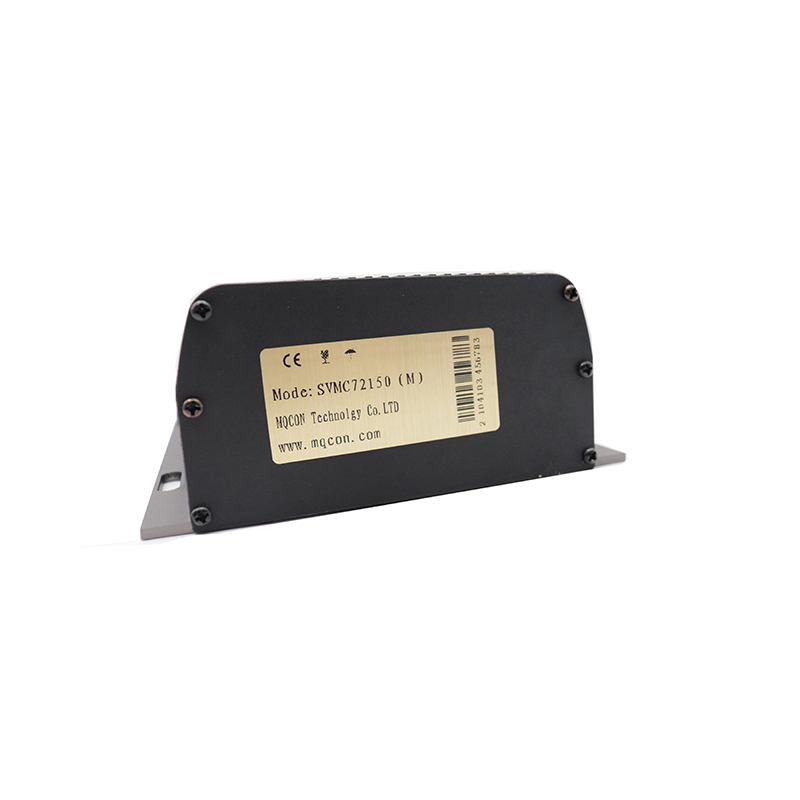

MQ(Sabvoton) sabvoton SVMC72150 Controller- SVMC72150-M
1) Model: SVMC72150-M risun motor Controller
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 3KW - 4KW
4) Peak DC Current: 150A
5) Phase Peak Current: 350A
6) Working Communication: Hall Sensor
7) Installation Size: 247mm * 147mm * 62 mm
8) Weight: 2.2kg
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24FET
11) Case Material: Aluminum
12) Controller Design: Powerful 4kw bicycle controller,ebike controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
Sabvoton SVMC72150 Controller, 150A sine wave controller, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, 0-5V Throttle, PAS, Speed Limit, Low Brake, Display, Reverse, Anti-Theft, Program Port.
#sabvoton SVMC72150 Controller#Powerful 4kw bicycle controller#150A sine wave controller#QS 3kw spoke motor controller#ebike controller#risun motor Controller
