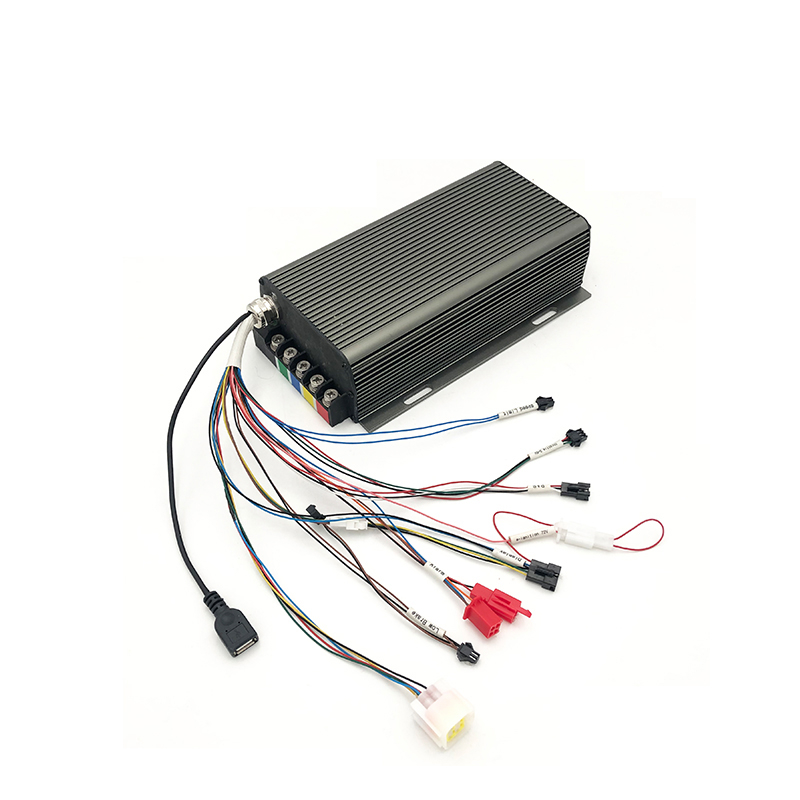

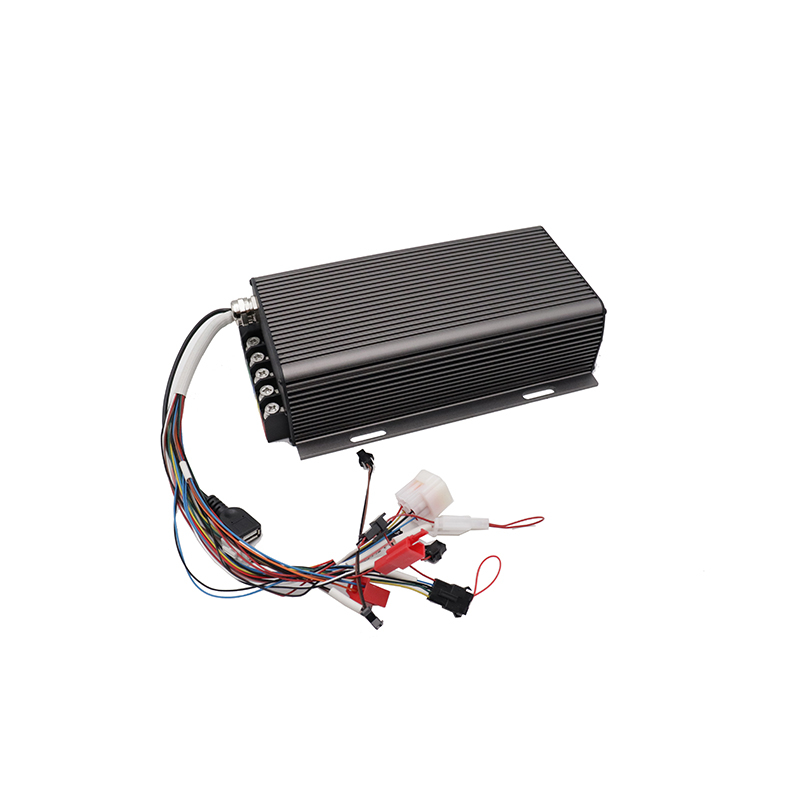

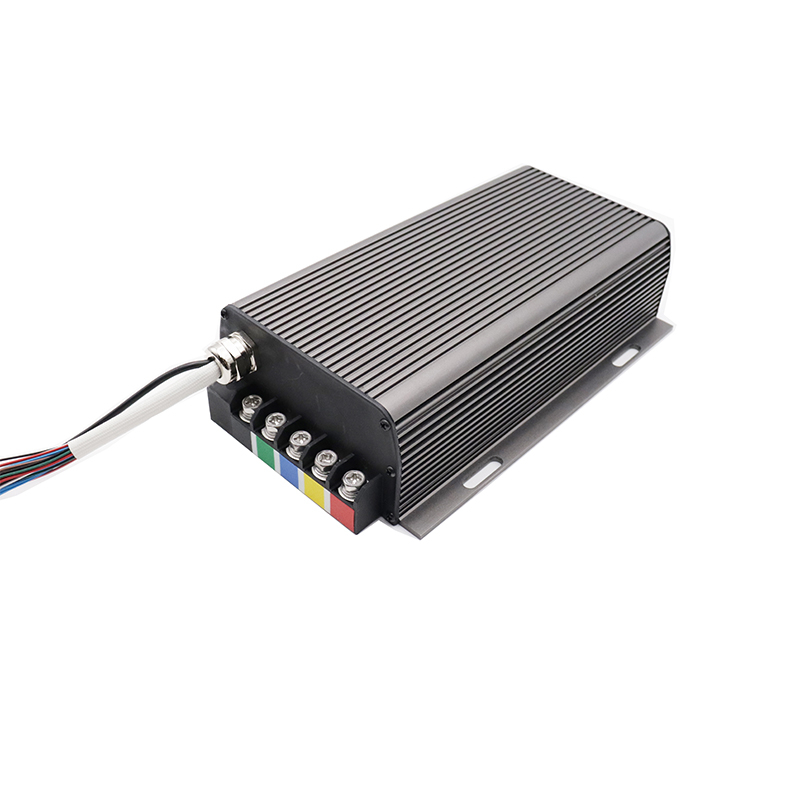

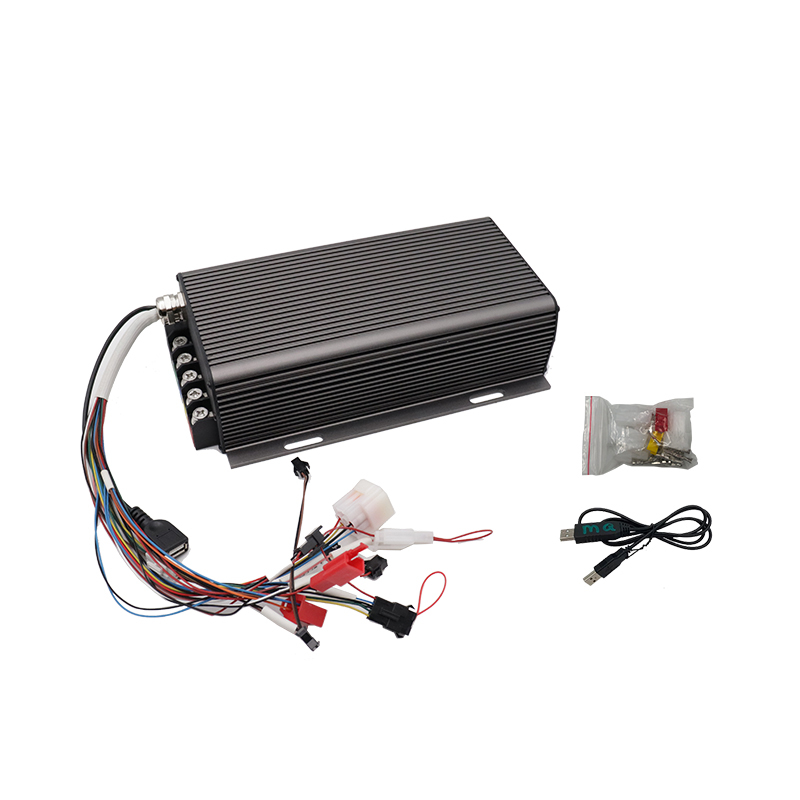

Sabvoton Controller SVMC72100 SVMC-M Serial Model are programmable brsuhless dc controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. 2000w 100A sine wave controller,electric bike motor controller, ebike motor controller, risun motor Controller.


• FOC 180 sabvoton controller SVMC72100 applied to BLDC or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support

Contact Us


- Generally SPEC -

MQ(Sabvoton) brsuhless dc controller- SVMC72100-M

1) Model: SVMC72100-M risun motor Controller

2) Available Battery Voltage: 48V-72V

3) Available Motor Power: 2KW - 3KW

4) Peak DC Current: 100A

5) Phase Peak Current: 250A

6) Working Communication: Hall Sensor

7) Installation Size: 247mm * 147mm * 62 mm

8) Weight: 2.2kg

9) Defaut Throttle Working Voltage: 0V - 5V

10) Mosfets Detail: 24FET

11) Case Material: Aluminum

12) Controller Design: 100A sine wave controller,ebike motor controller

13) Support Programmable by PC & Phone

14) Certification: CE, CCC


- Controller Design -

electric bike motor controller, 100A sine wave controller, Programmable, With Hall Plug, 120 degree Phase Angle.

Functions: Hall, 0-5V Throttle, PAS, Speed Limit, Low Brake, Display, Reverse, Anti-Theft, Program Port.

#sabvoton controller SVMC72100#100A sine wave controller#brsuhless dc controller#ebike motor controller#electric bicycle controller#risun motor Controller
