Sabvoton Controller SVMC-M Serial Model are programmable sine wave hall controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. 2000w 80A sine wave controller,electric bike motor controller, electric bicycle controller, risun motor Controller.
• FOC 180 2000w 80A sine wave controller applied to BLDC or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

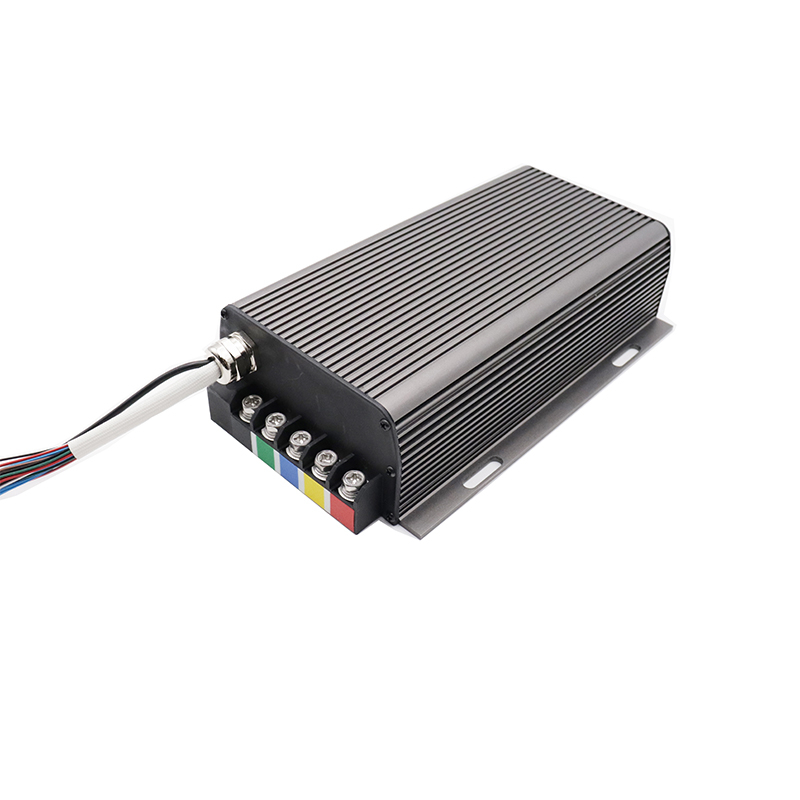

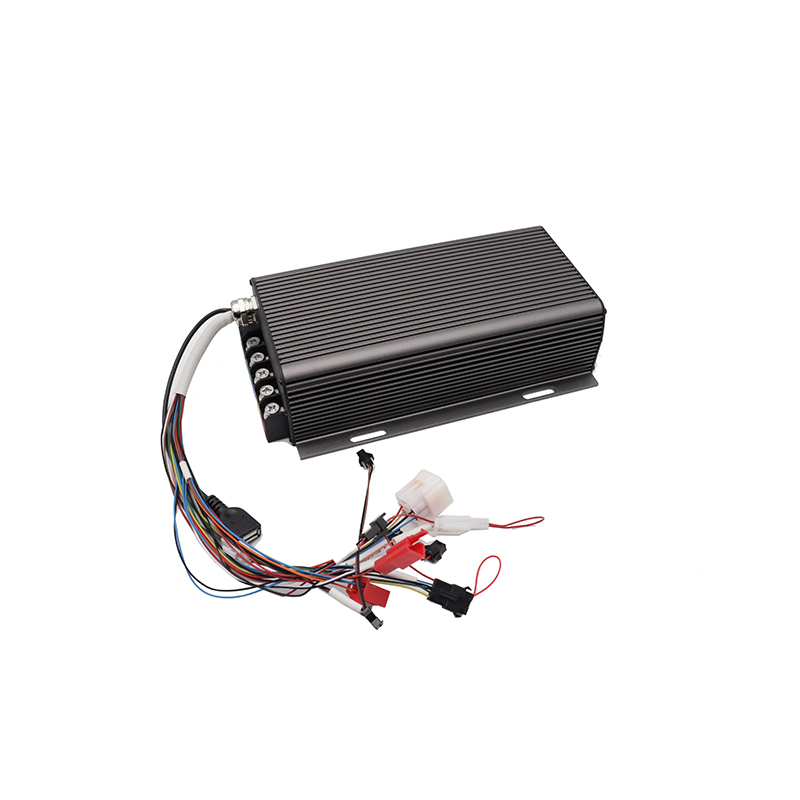

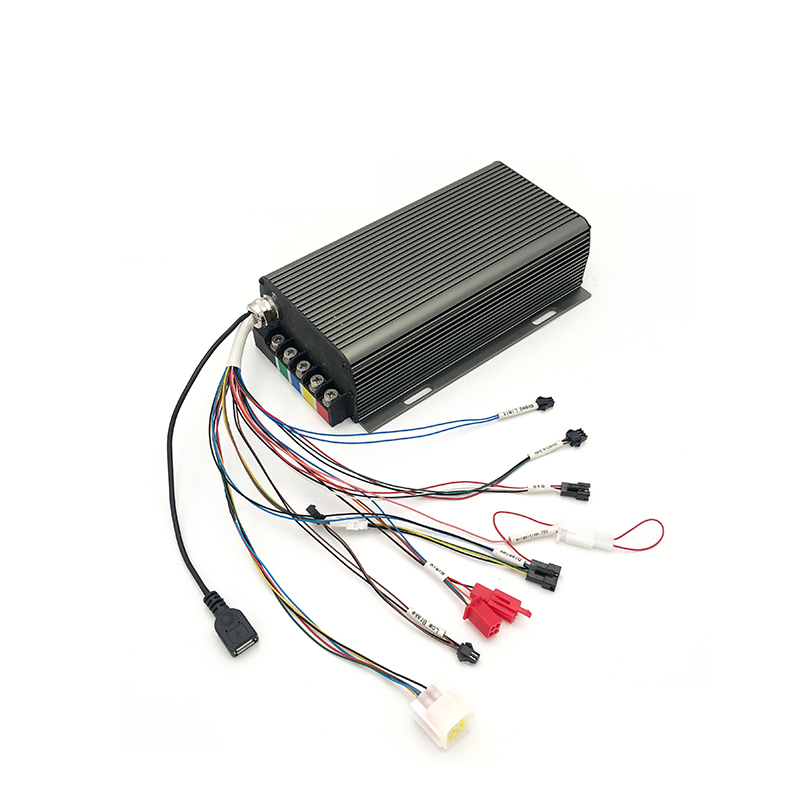

MQ(Sabvoton) 2000w 80A sine wave controller - SVMC7280-M
1) Model: SVMC7280-M risun motor Controller
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 1.5KW - 2.5KW
4) Peak DC Current: 80A
5) Phase Peak Current: 200A
6) Working Communication: Hall Sensor
7) Installation Size: 247mm * 147mm * 62 mm
8) Weight: 2.1kg
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24FET
11) Case Material: Aluminum
12) Controller Design: sabvoton controller, sine wave hall controller, electric bicycle controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
Electric Bike Motor Controller, Sine Wave, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, 0-5V Throttle, PAS, Speed Limit, Low Brake, Display, Reverse, Anti-Theft, Program Port.
