Sabvoton Controller SVMC Serial Model are programmable sabvoton controller 80A works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for BLDC motor controller, electric scooter controller, ebike motor controller, sine wave bicycle controller,brushless hall controller.
• FOC 180 sine wave controller applied to electric scooter controller or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

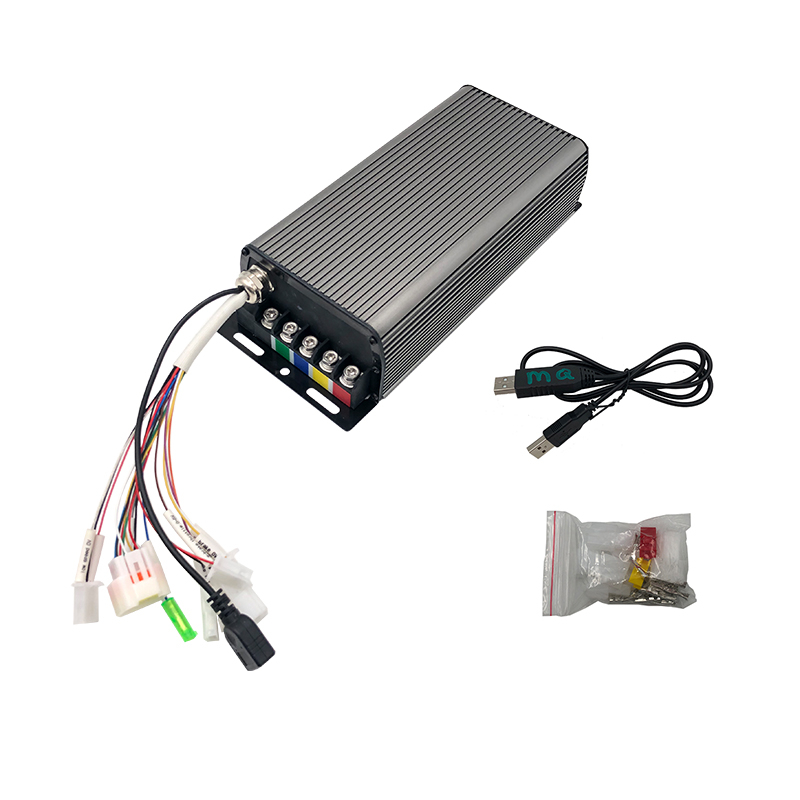

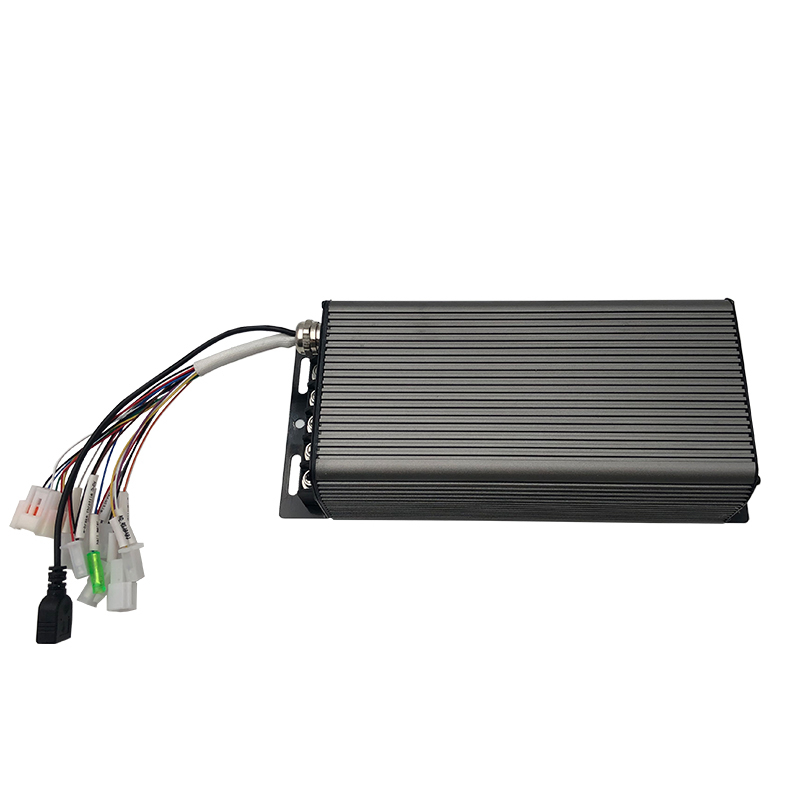

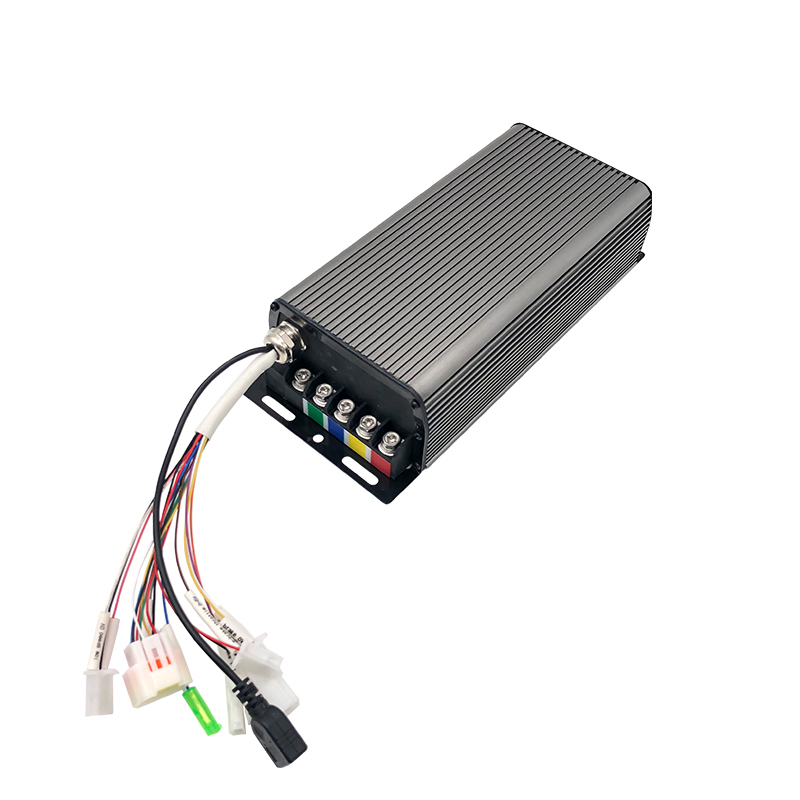

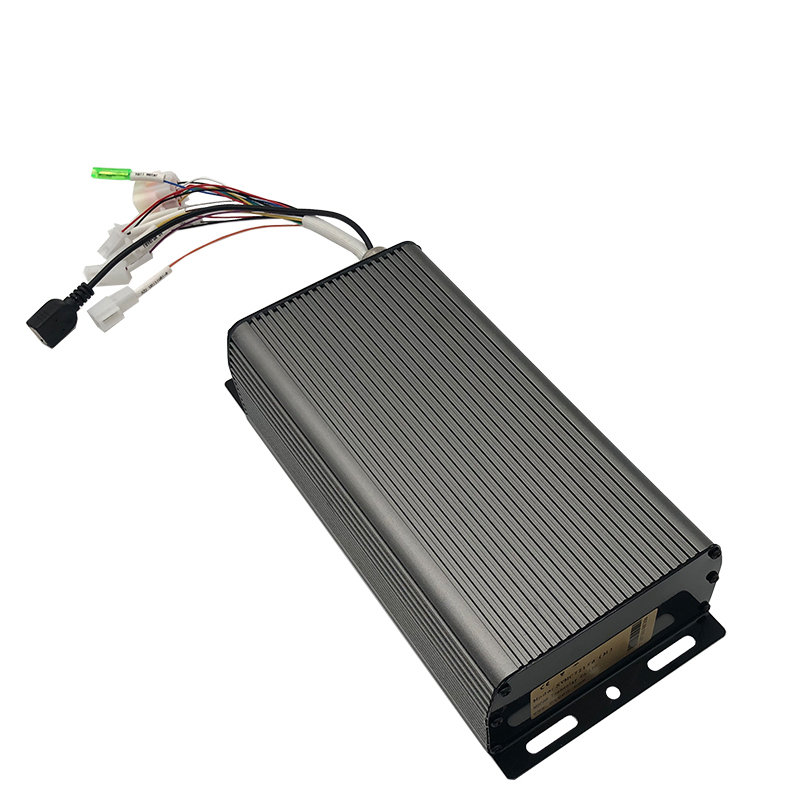

sabvoton dc hall controller 80A - SVMC9680 V2
1) Model: SVMC9680 V2
2) Available Battery Voltage: 48V-96V
3) Available Motor Power: 1.5KW - 2KW
4) Peak DC Current: 80A
5) Phase Peak Current: 200A
6) Working Communication: Hall Sensor
7) Installation Size: 275mm * 122mm * 63 mm
8) Weight: 2kgs
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24FET
11) Case Material: Aluminum
12) Controller Design: sine wave bicycle controller

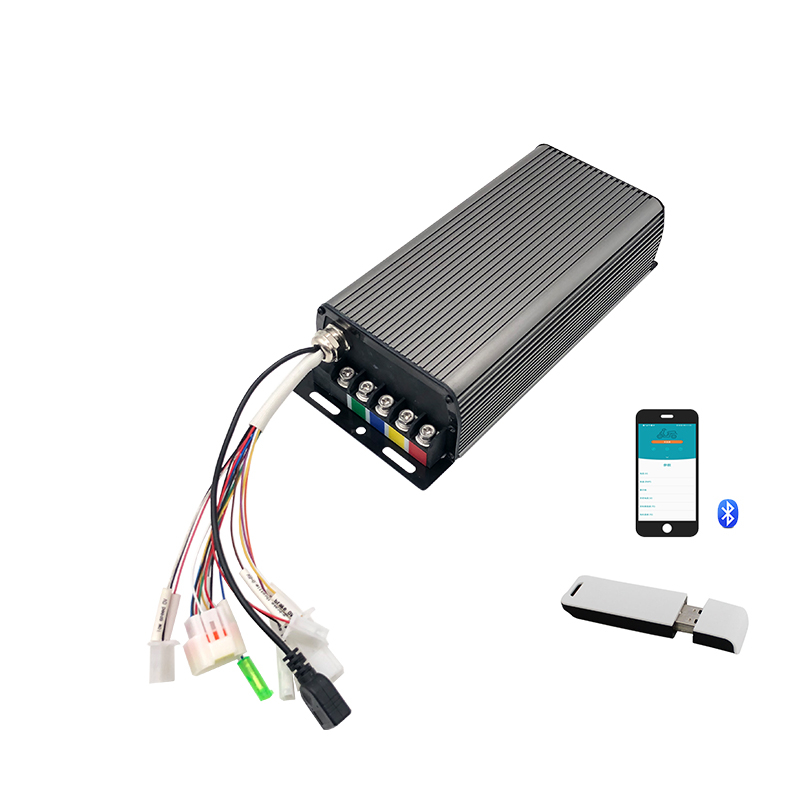

13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
dc hall controller, sine wave bicycle controller, Programmable, With Hall, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.
sabvoton controller 80A#sine wave bicycle controller#dc hall controller#electric scooter controller
