Sabvoton SVMC72150 controller SVMC Serial Model are programmable 150A BLDC controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well as 3000w electric bicycle controller, BLDC controller, 150A electric scooter controller, powerful 3kw electric scooter controller,brushless hall controller.
• FOC 180 150A BLDC controller applied to BLDC or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

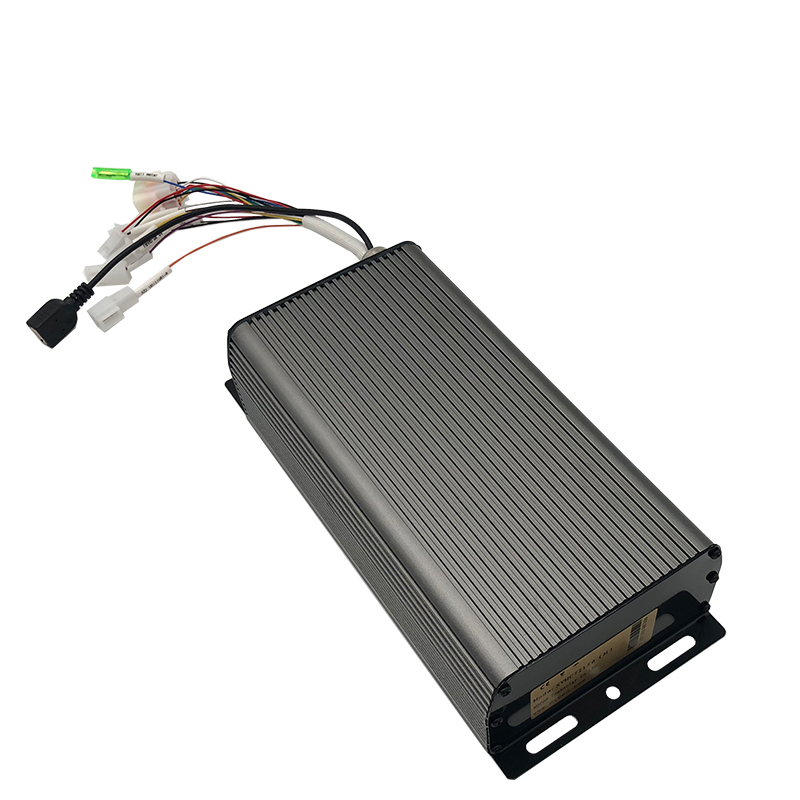

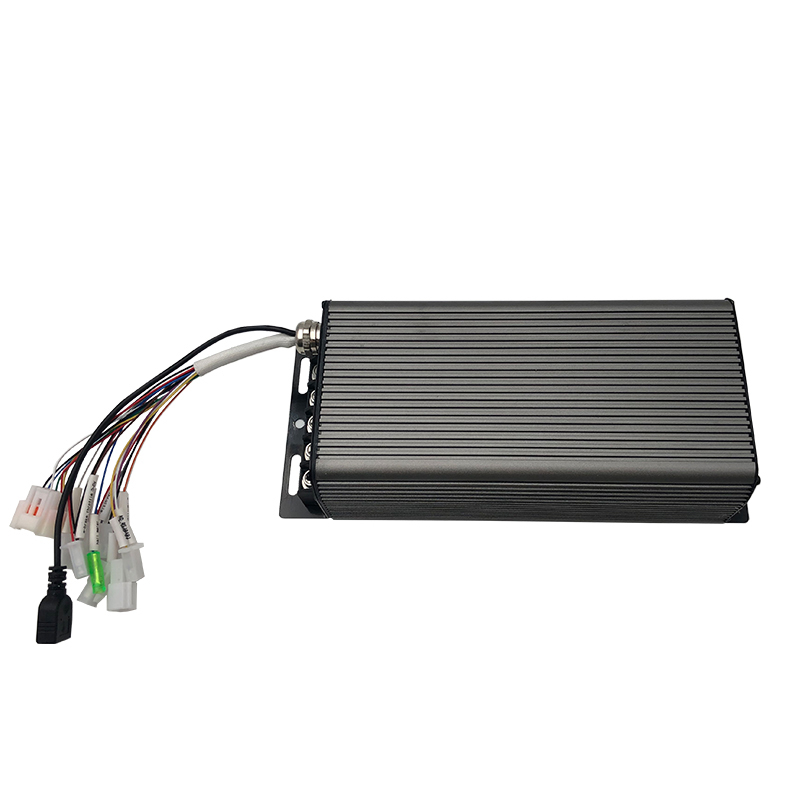

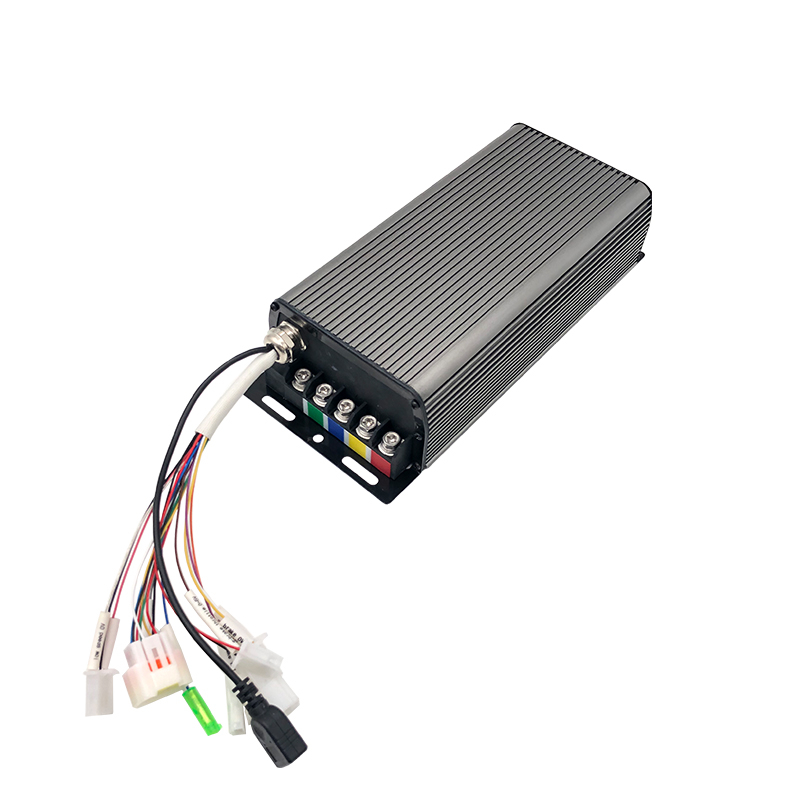

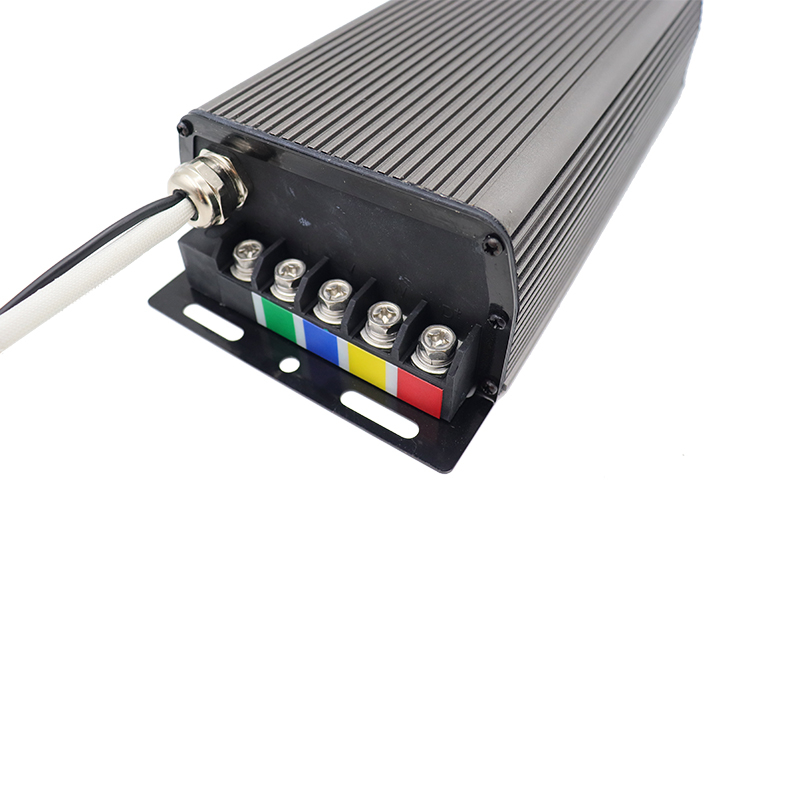

MQ(Sabvoton) 150A BLDC controller - SVMC72150 V2
1) Model: SVMC72150 V2 powerful 3kw electric scooter controller
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 2KW - 4KW
4) Peak DC Current: 150A
5) Phase Peak Current: 350A
6) Working Communication: Hall Sensor
7) Installation Size: 275mm * 122mm * 63 mm
8) Weight: 2.2 kgs
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24 FET
11) Case Material: Aluminum
12) Controller Design: 3000w electric bicycle controller, sabvoton SVMC72150 controller

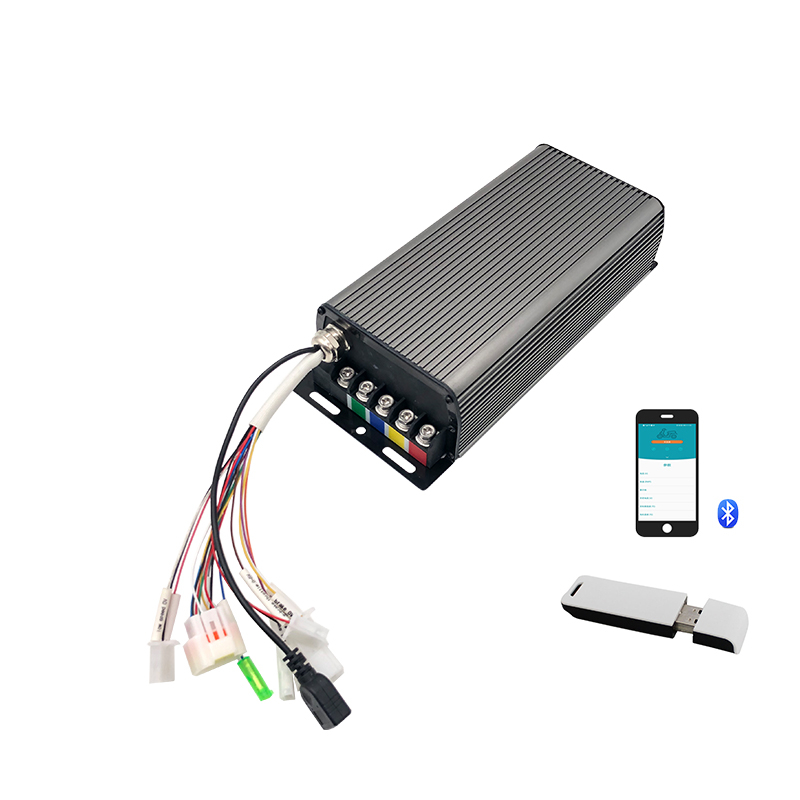

13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
3000w electric bicycle controller, Sine Wave, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.
