Sabvoton Controller SVMC Serial Model are programmable 72v 3000w brushless motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well as 2000w 48v hall motor controller, BLDC controller, 100A electric scooter controller, dc hall controller,brushless hall controller.
• FOC 180 100A bicycle motor controller applied to BLDC or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

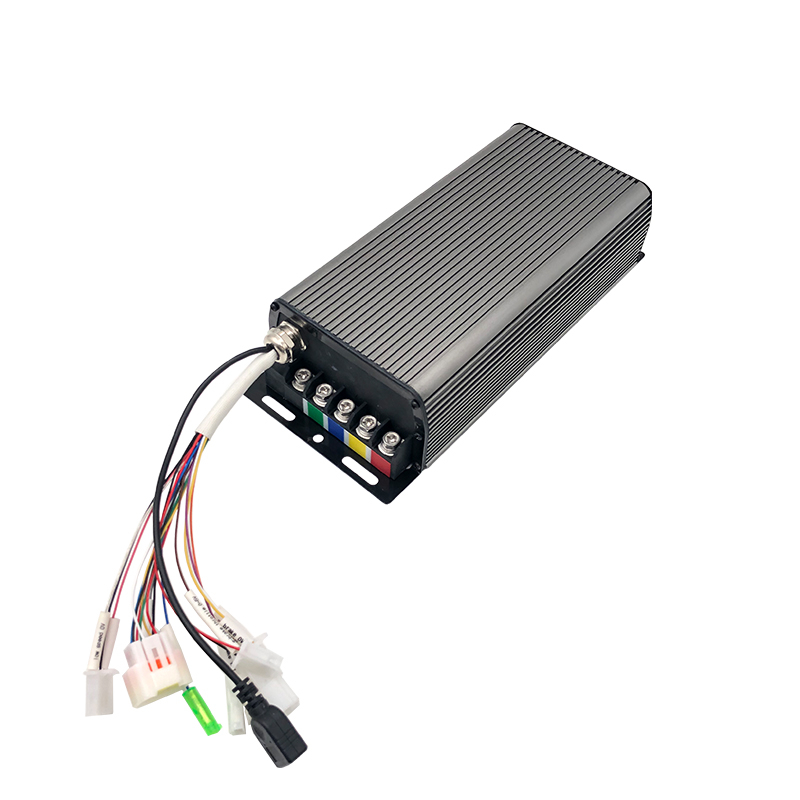

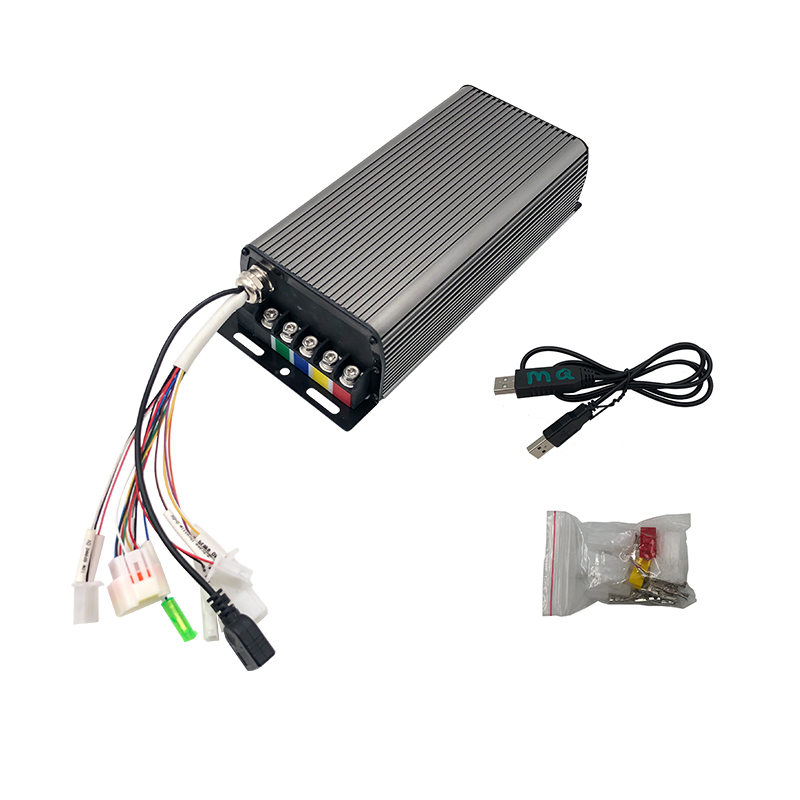

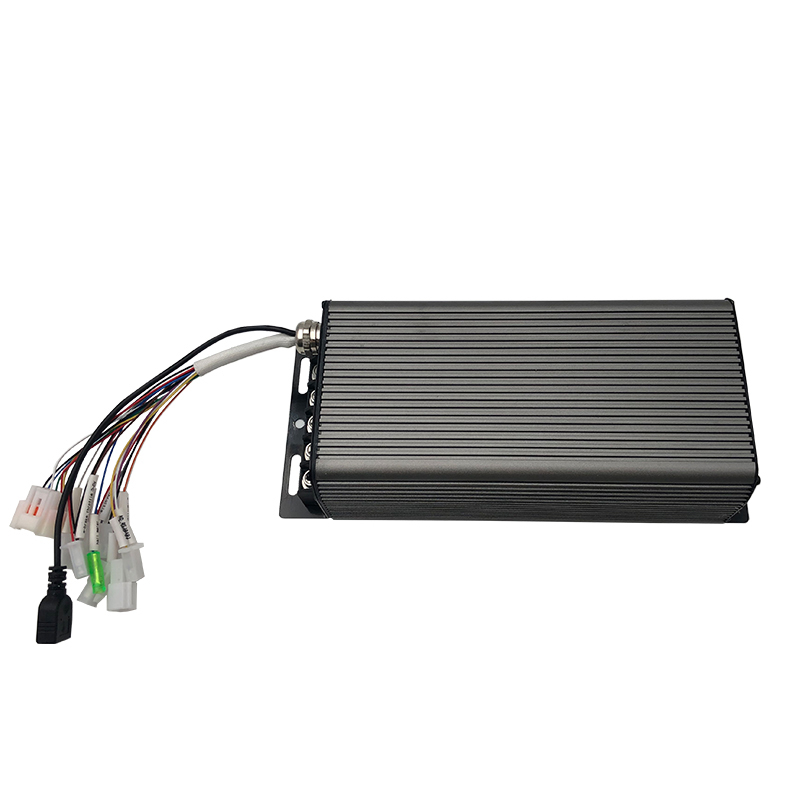

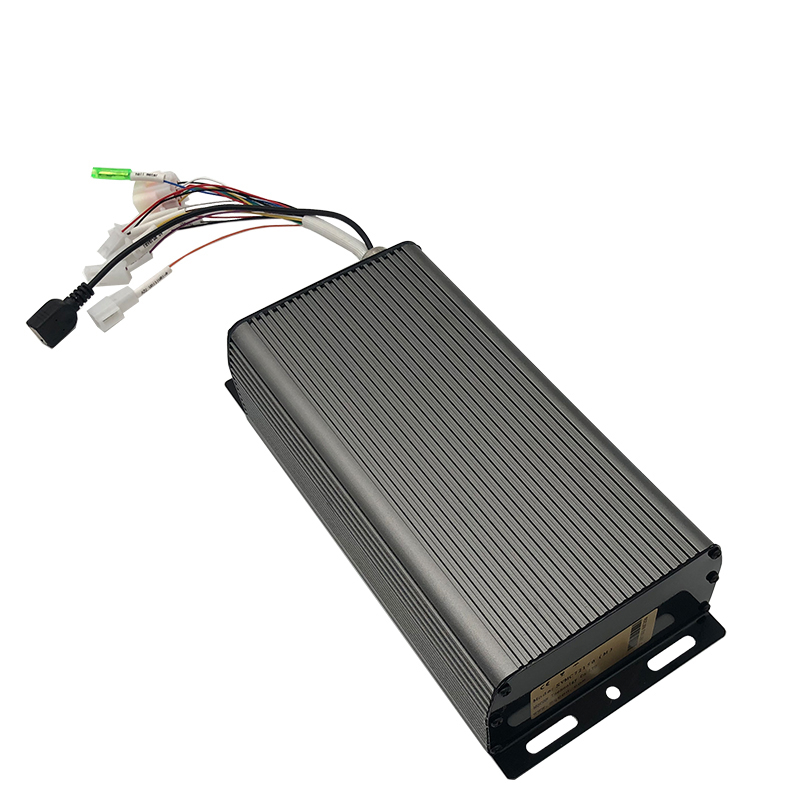

MQ(Sabvoton) 72v 3000w brushless motor controller- SVMC72100 V2
1) Model: SVMC72100 V2
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 2KW - 3KW
4) Peak DC Current: 100A
5) Phase Peak Current: 250A
6) Working Communication: Hall Sensor
7) Installation Size: 275mm * 122mm * 63 mm
8) Weight: 2.2 kgs
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24 FET
11) Case Material: Aluminum
12) Controller Design: dc hall controller

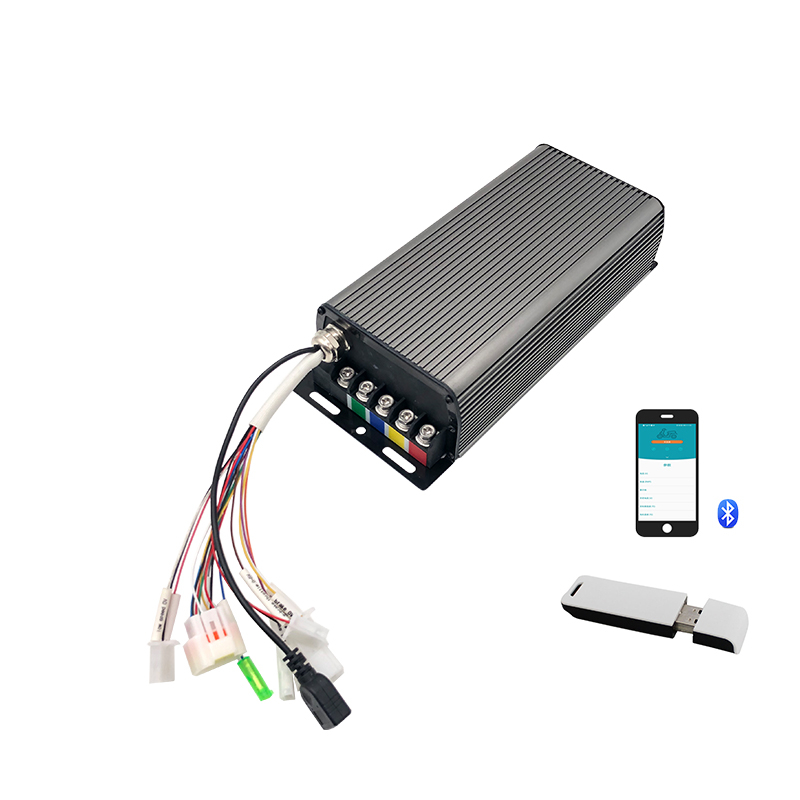

13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
100A bicycle motor controller, dc hall controller, Programmable, sine wave, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.
