SVMC7260 V2

Sabvoton Controller SVMC Serial Model are programmable 60A 1500w BLDC controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well as 60A 1500w BLDC controller, BLDC controller, 60A electric scooter controller, bldc gearless controller,brushless hall controller.



• FOC 180 60A 1500w BLDC controller applied to BLDC or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support

Contact Us

OVERVIEW

- Generally SPEC -

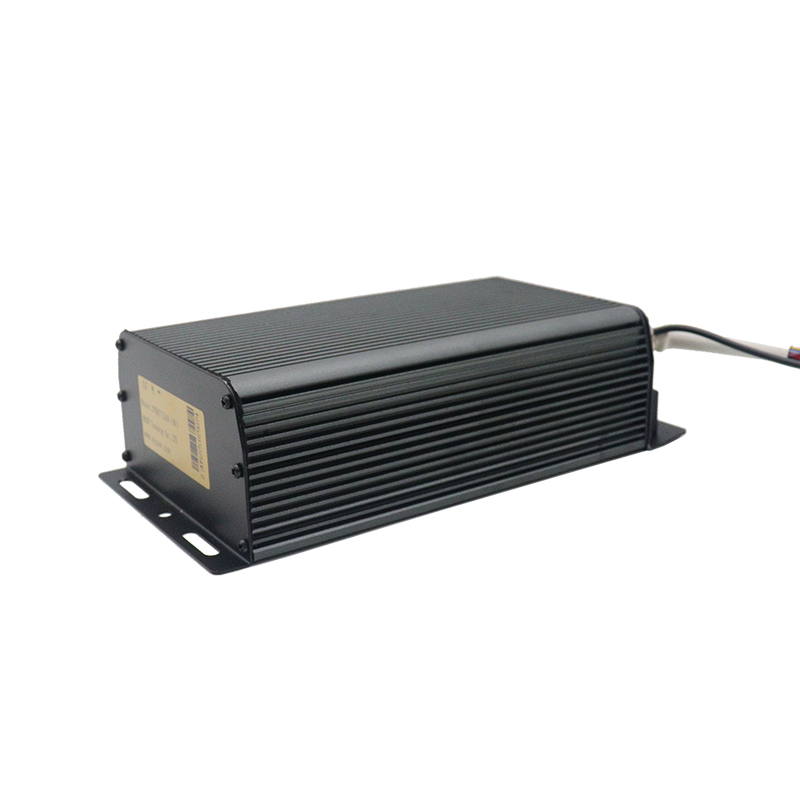

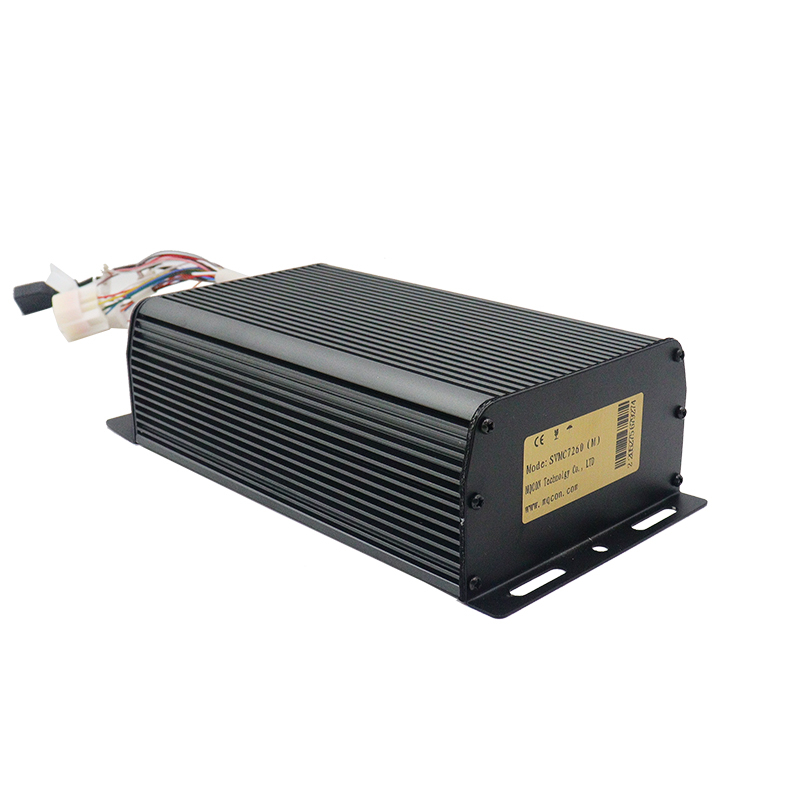

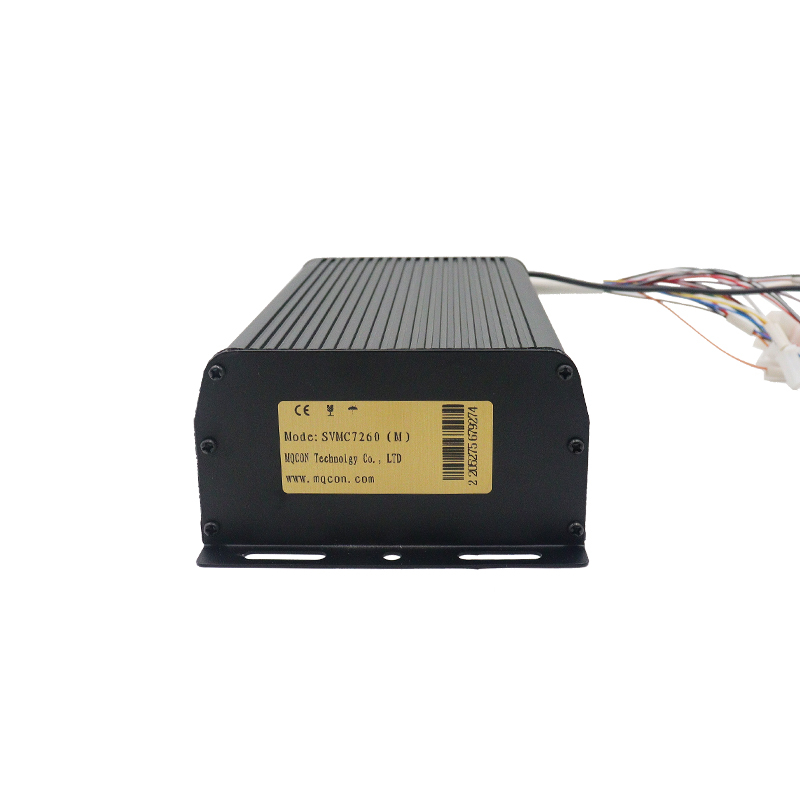

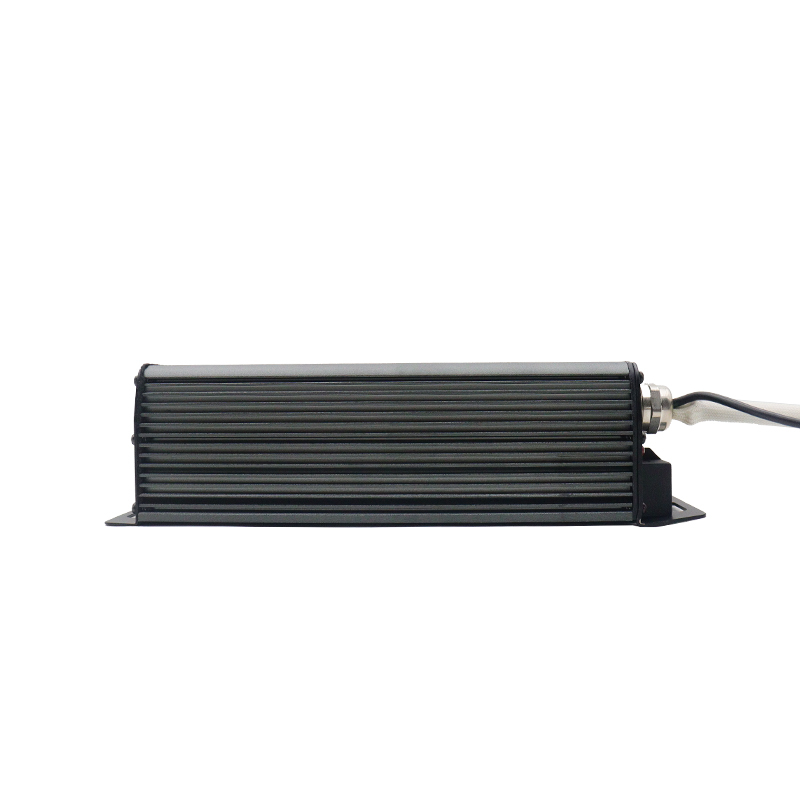

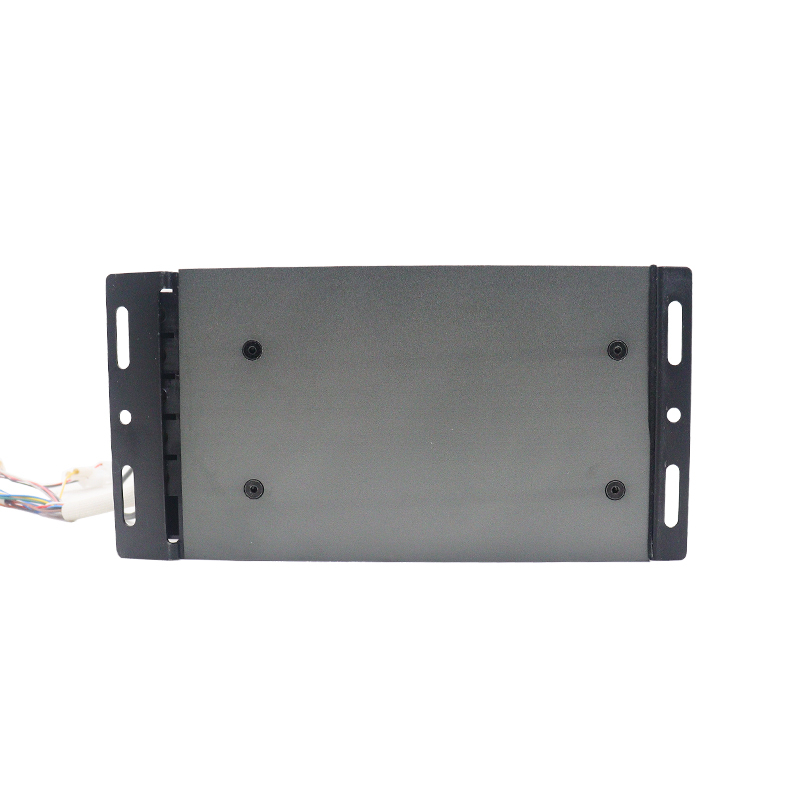

MQ(Sabvoton) 1500w motor controller - SVMC7260 V2
1) Model: SVMC7260 V2
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 1KW - 1.5KW
4) Peak
DC Current: 60A
5)
Phase Peak Current: 150A
6) Working Communication: Hall Sensor
7) Installation Size: 243mm * 122mm * 63 mm
8) Weight: 2.1kg
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 18FET
11) Case Material: Aluminum
12) Controller Design: 1500w 48v hall motor controller, 60A electric scooter controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC



- Controller Design -

BLDC controller, Sine Wave, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.

#60A 1500w BLDC controller#1500w 48v hall motor controller#BLDC controller#60A electric scooter controller#
