Sabvoton controller SVMC7245 Model are programmable 1kw 48v BLDC controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Sine wave 45a controller, 45a electric scooter controller, 45a electric bicycle controller, risun motor Controller.
•FOC 180︒ sinusoidal drive controller applied to BLDCM or PMSM.
•Easy connect
•Soft start and no noise
•Programmable by PC and Phone
•EBS & Regenerative function support
•Flux Weakening function support
•OEM & ODM Service support
OVERVIEW
- Generally SPEC -
MQ(Sabvoton) 45A Electric Scooter Controller - SVMC7245-M(V2)
1) Model: SVMC7245-M(V2)
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 0.8KW - 1KW
4) Peak DC Current: 45A
5) Phase Peak Current: 135A
6) Working Communication: Hall Sensor
7) Installation Size: 195mm * 96mm * 62 mm
8) Weight: 1.2kg
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 12FET
11) Case Material: Aluminum
12) Controller Design: Sine Wave 45A Controller, Risun Motor Controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
45a Electric Bicycle Controller, Sine Wave, Programmable, With Hall Plug, 120 degree Phase Angle.

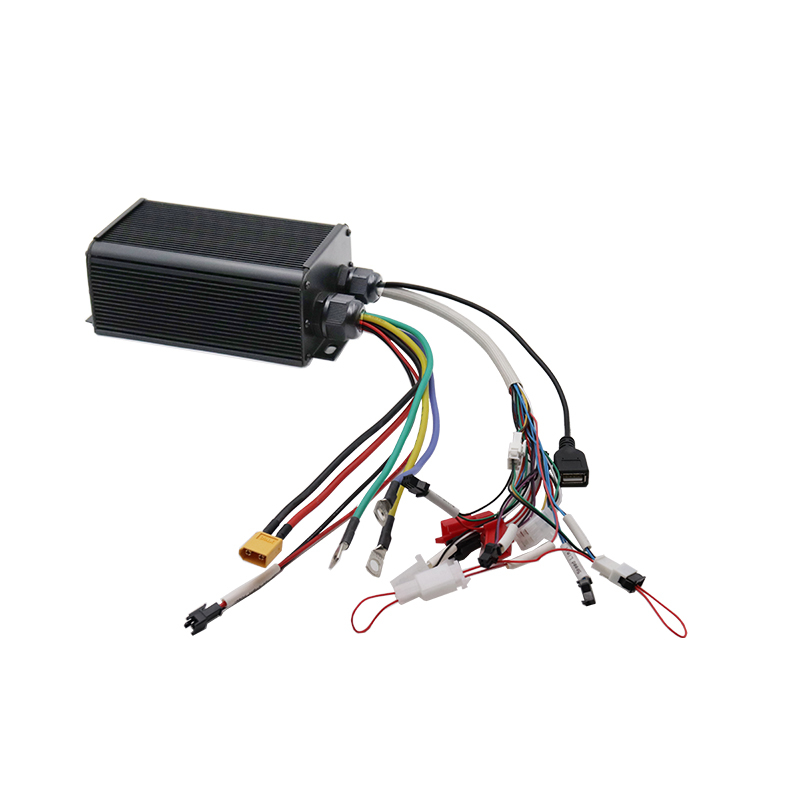

Functions: Hall, Throttle, Light Power 48-72V, PAS, Alarm, Speed Limit, Low Brake, Display, Reverse, USB Port, Phase wires, Power wires.
