Sabvoton Controller SVMC Serial Model are programmable hall bldc controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well as BLDC hall sensor motor, 96v electric bicycle controller, electric scooter controller, bldc gearless controller,brushless hall controller.
• FOC 180 hall bldc controller applied to BLDC or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

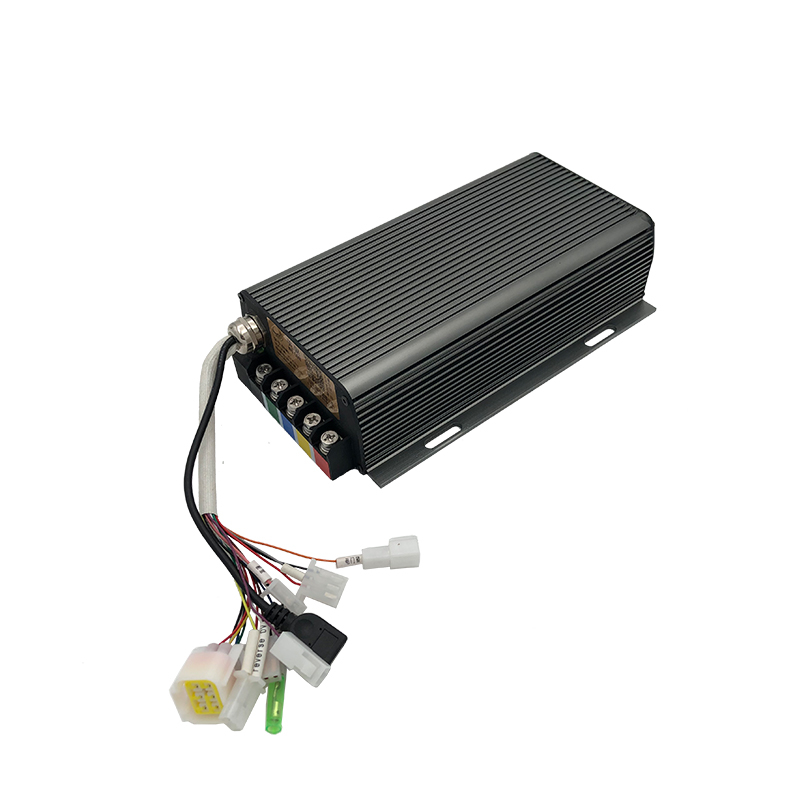

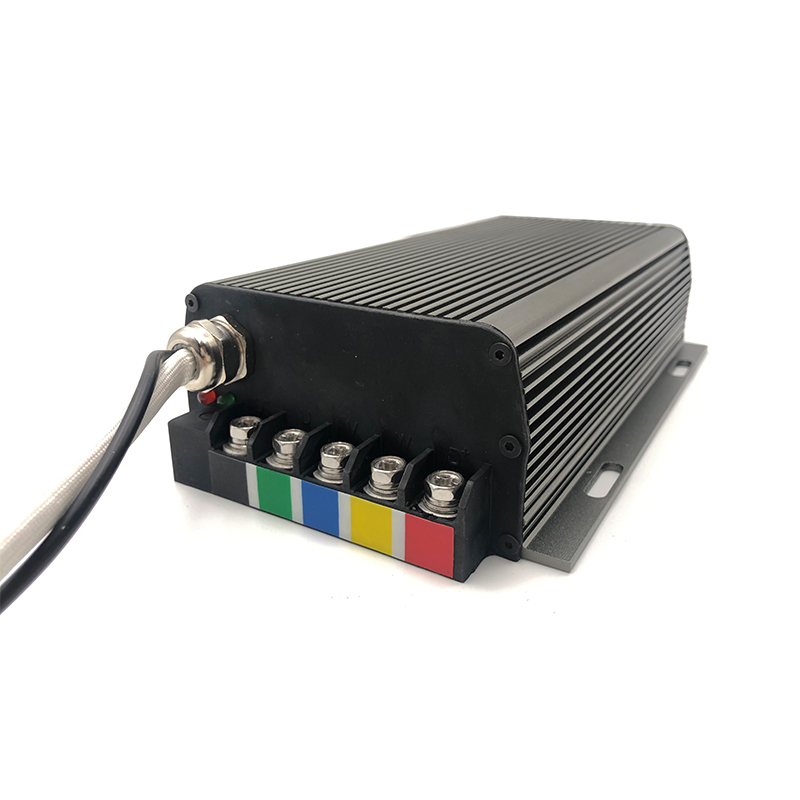

MQ(Sabvoton) brushless dc controller - SVMC96120
1) Model: SVMC96120
2) Available Battery Voltage: 48V-96V
3) Available Motor Power: 4KW - 5KW
4) Peak DC Current: 120A
5) Phase Peak Current: 300A
6) Working Communication: Hall Sensor
7) Installation Size: 283mm * 147mm * 62 mm
8) Weight: 2.5kgs
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 30 FET
11) Case Material: Aluminum
12) Controller Design: Sine Wave electric scooter controller

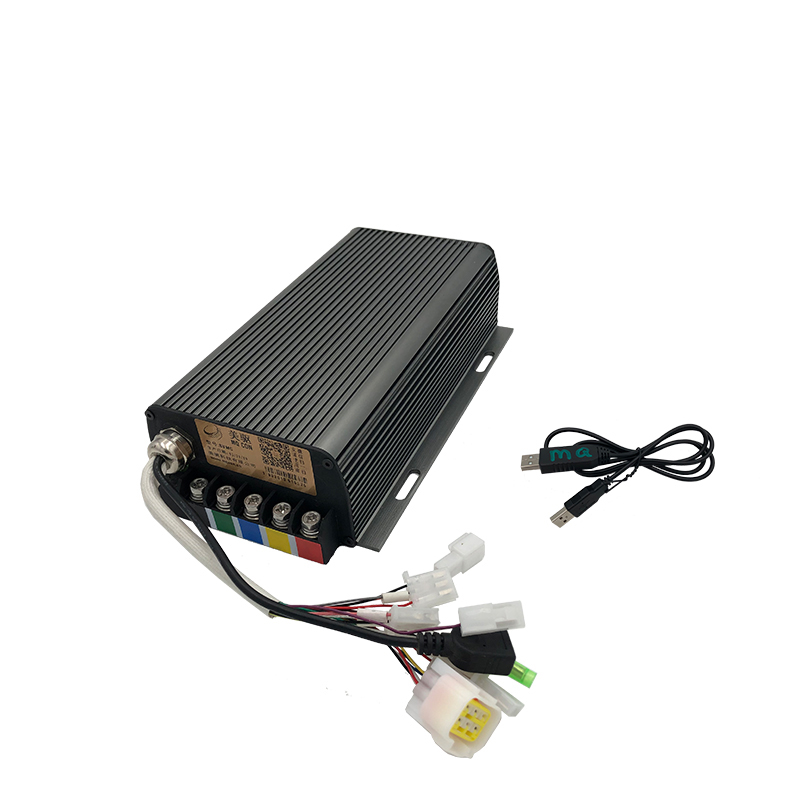

13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
brushless dc controller, hall bldc controller, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.
