Sabvoton Controller SVMC Serial Model are programmable 100A 96V DC Controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our sabvoton 96v controller designed worked well as BLDC hall sensor motor, hall sensor DC controller, ebike motor controller, bldc gearless controller,100A electric motorcycle controller.
• FOC 180 sabvoton 96v controller applied to BLDC motor controller or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

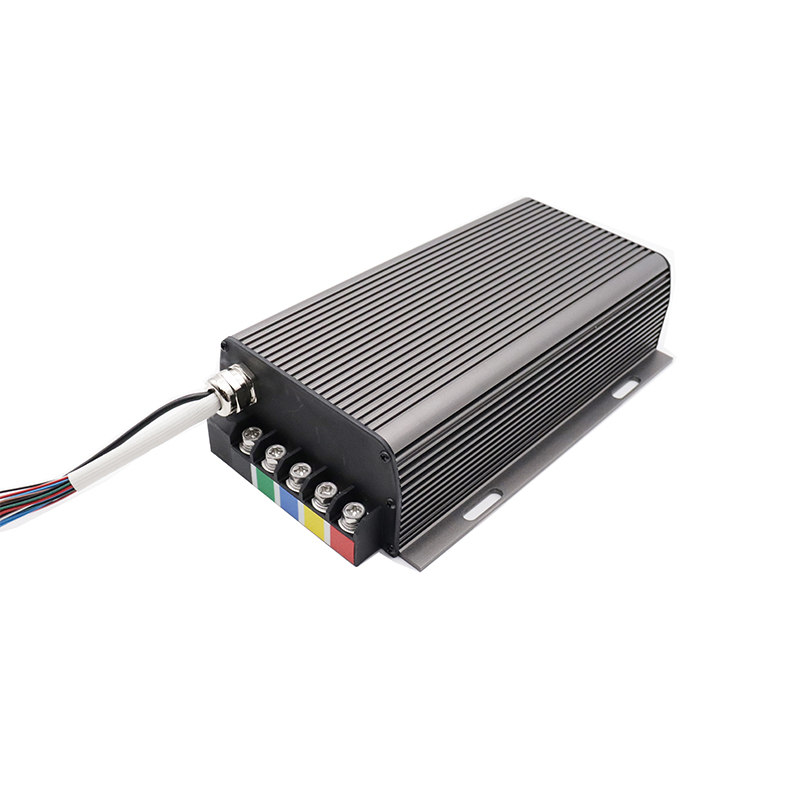

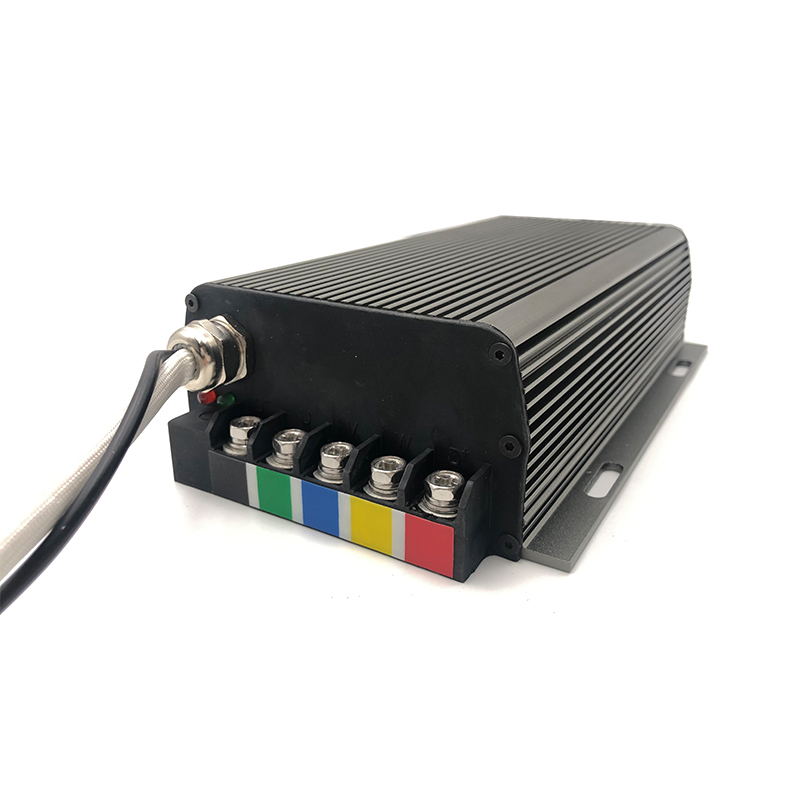

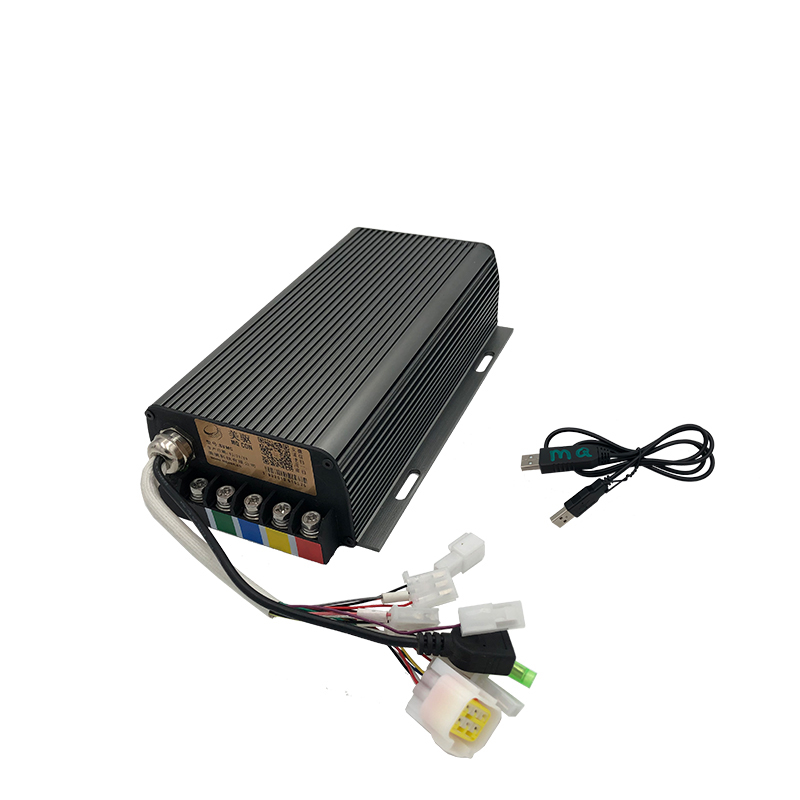

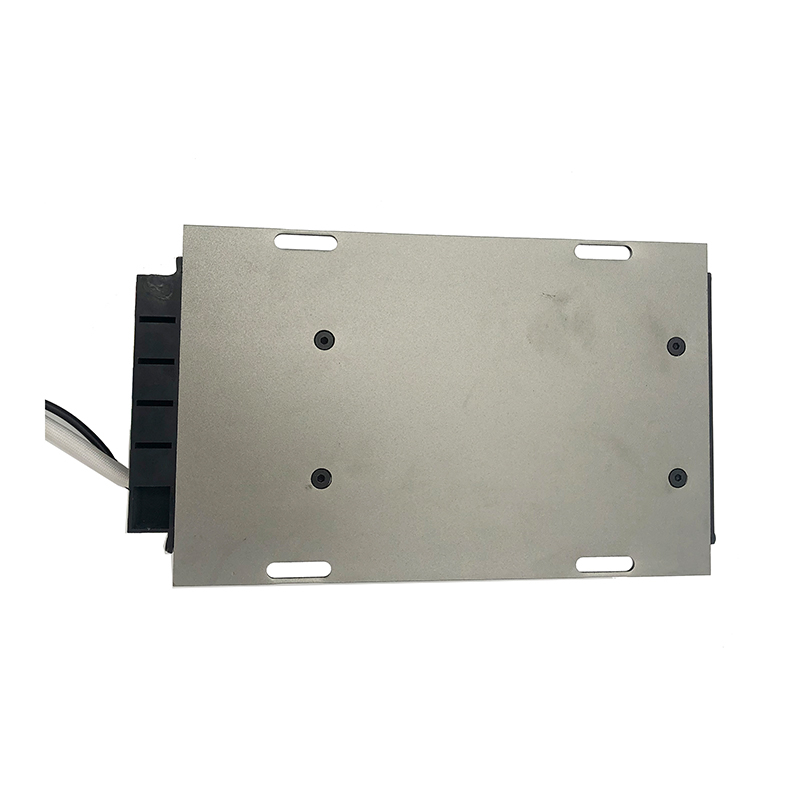

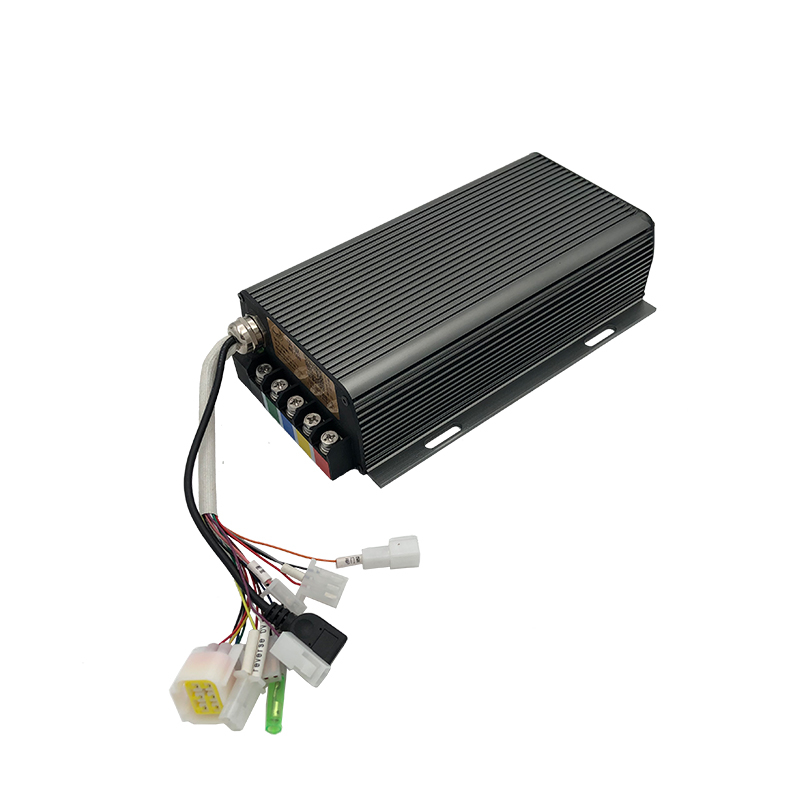

MQ(Sabvoton) 100A 96V DC Controller - SVMC96100
1) Model: SVMC96100
2) Available Battery Voltage: 48V-96V
3) Available Motor Power: 2KW - 2.5KW
4) Peak DC Current: 100A
5) Phase Peak Current: 250A
6) Working Communication: Hall Sensor
7) Installation Size: 247mm * 147mm * 62 mm
8) Weight: 2.2kgs
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24FET
11) Case Material: Aluminum
12) Controller Design: Sine Wave hall sensor DC controller, 100A electric motorcycle controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
BLDC motor controller, hall sensor DC controller, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.
