Sabvoton Controller SVMC Serial Model are programmable 96v 50A BLDC controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for BLDC motor controller motor, brushless electric bike controller, ebike motor controller, 96v electric scooter controller, brushless hall controller.
• FOC 180 sine wave controller applied to BLDC motor controller or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

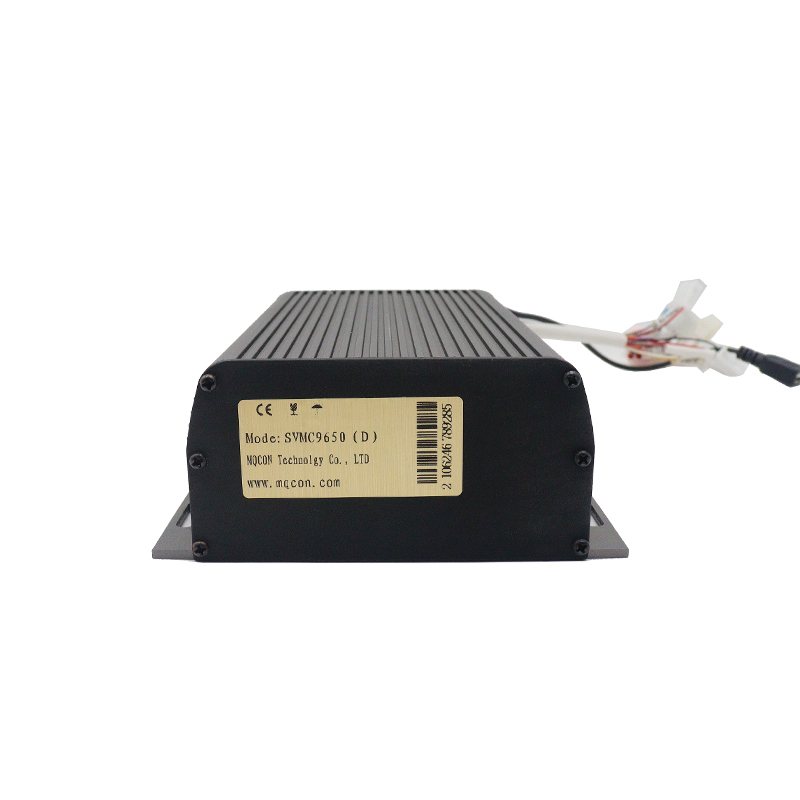

MQ(Sabvoton) 96v 50A BLDC controller - SVMC9650
1) Model: SVMC9650
2) Available Battery Voltage: 48V-96V
3) Available Motor Power: 1KW - 1.5KW
4) Peak DC Current: 50A
5) Phase Peak Current: 150A
6) Working Communication: Hall Sensor
7) Installation Size: 216mm * 146mm * 62 mm
8) Weight: 2.1kgs
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 18FET
11) Case Material: Aluminum
12) Controller Design: Sine Wave Controller, 96v electric scooter controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
Brushless DC, sine wave controller, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.
