Sabvoton Controller SVMC Serial Model are programmable brushless motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for powerful 4kw motor controller, three speed dc controller, ebike motor controller, electric bicycle controller, brushless motor controller.
• FOC 180 SVMC72150 controller applied to three speed dc controller or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

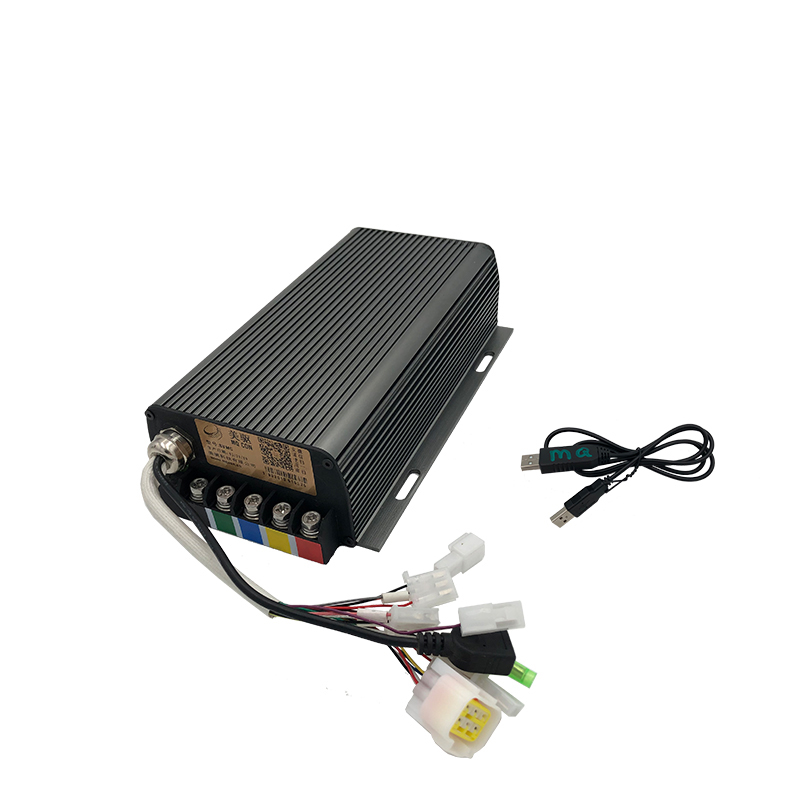

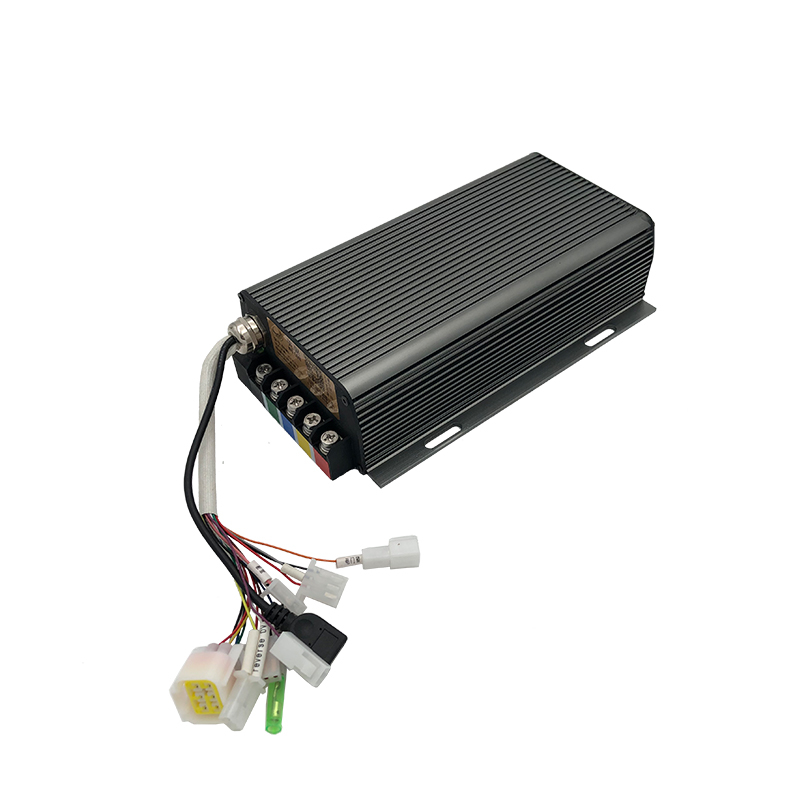

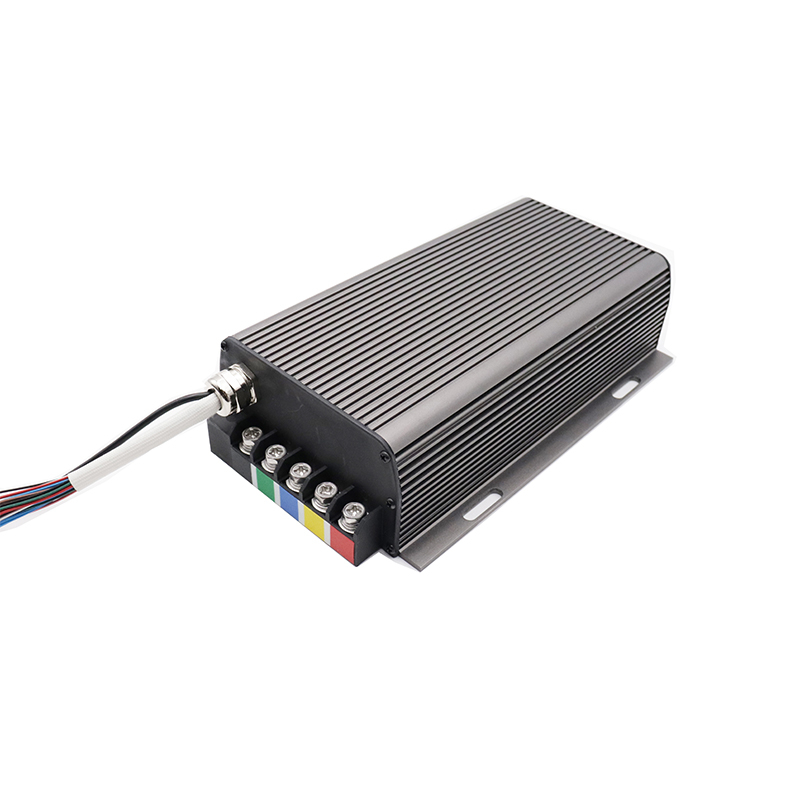

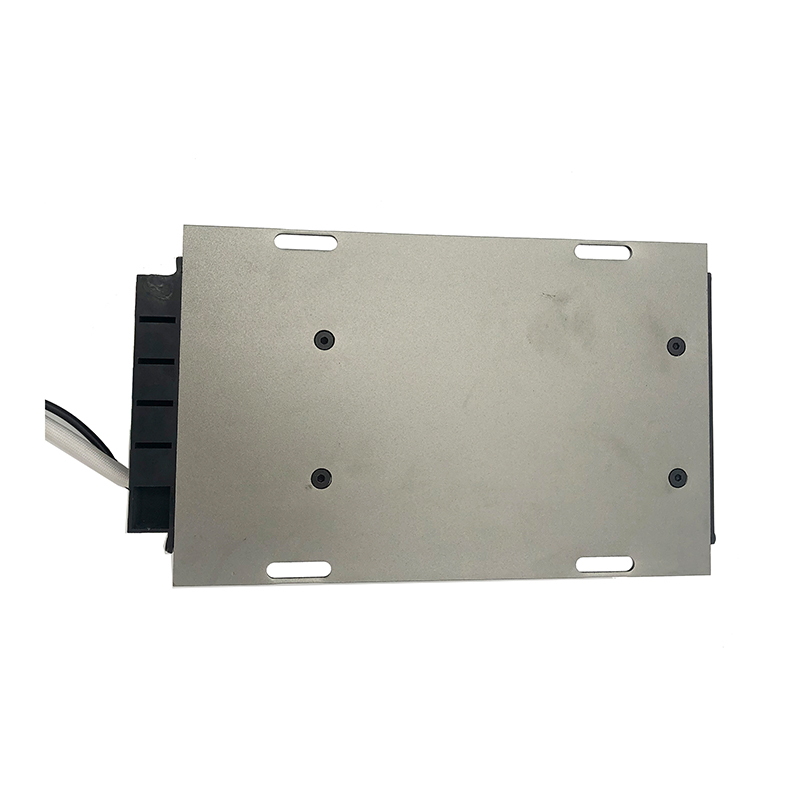

MQ(Sabvoton) powerful 4kw motor controller - SVMC72150 controller
1) Model: SVMC72150
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 3KW - 4KW
4) Peak DC Current: 150A
5) Phase Peak Current: 350A
6) Working Communication: Hall Sensor
7) Installation Size: 249mm * 147mm * 62 mm
8) Weight: 2.5 kgs
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24 FET
11) Case Material: Aluminum
12) Controller Design: svmc72150 controller, electric bicycle controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
Powerful 4KW Motor Controller, Sine Wave, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall(Temp Sensor KTY83-122), Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.
