ML7245|SM & ML Models

ML7245S programmable sine wave controller

ML7245

Sabvoton Controller ML Serial Model are programmable sine-wave motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric motorcycles more comfortable and easier to control. Our designed worked well for BLDC hall sensor motor, electric bicycle controller, sine wave bicycle controller, bldc motor,electric scooter controller

• FOC 180 sinusoidal drive controller applied to BLDC motor or PMSM.
• Easy connect
• Soft start and no noise
• Programmable by PC
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support

OVERVIEW

- Generally SPEC -

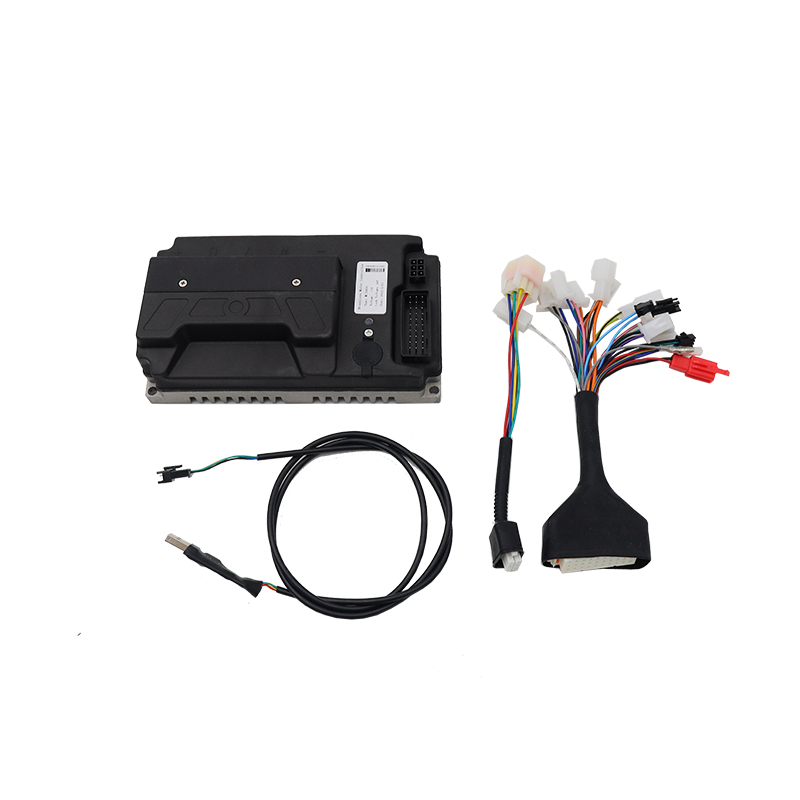

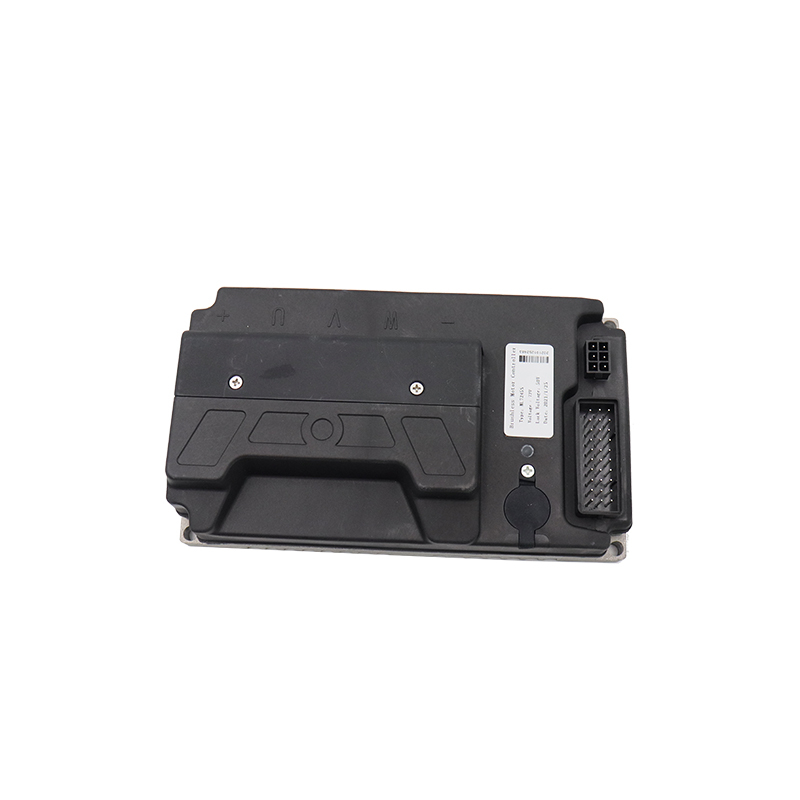

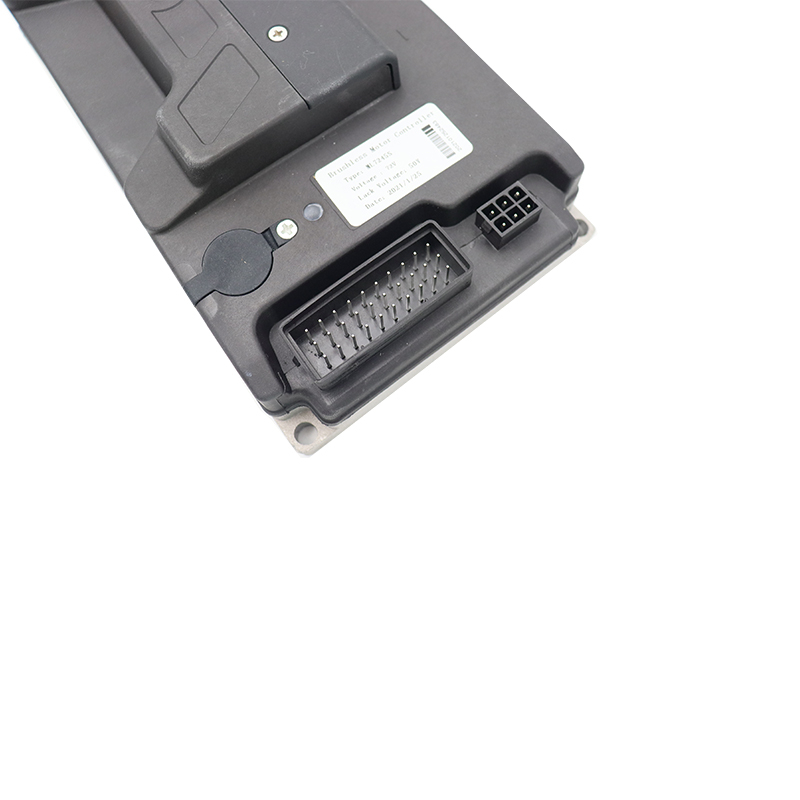

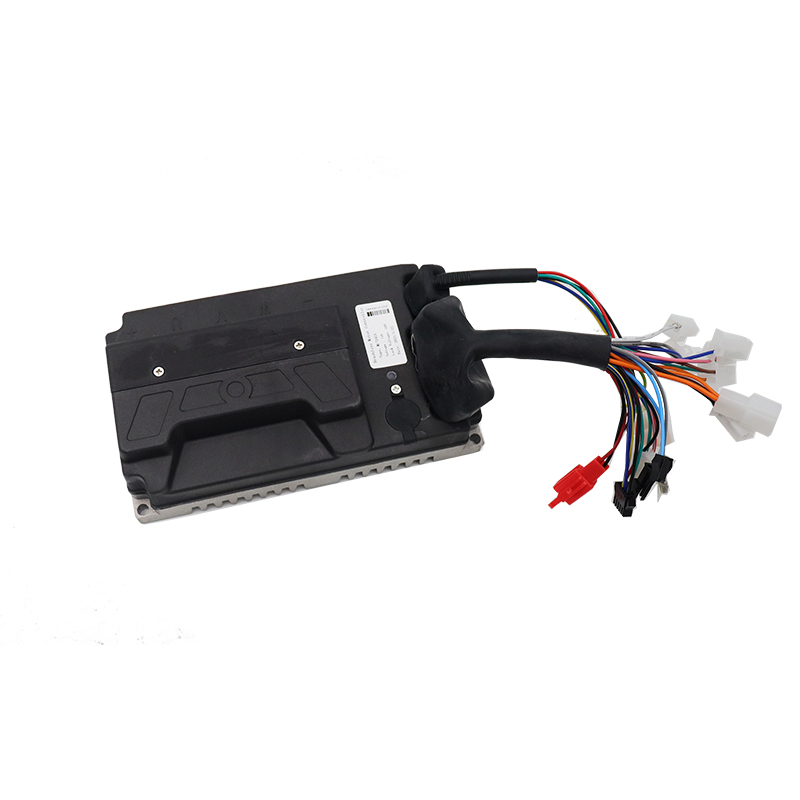

MQ(Sabvoton) BLDC hall sensor motor Controller - ML7245

1) Model ML7245
2) Available Battery Voltage 48V-96V
3) Available Motor Power 1200W
4) Phase Peak Current 130A
5) DC Current 45A
6) Working Communication Hall Sensor
7) Instaliing Size 193mm * 111mm * 51 mm
8) Weight 1.1 kgs
9) Defaut Throttle Working Voltage 0V - 5V
10) Mosfets Detail 12 FET

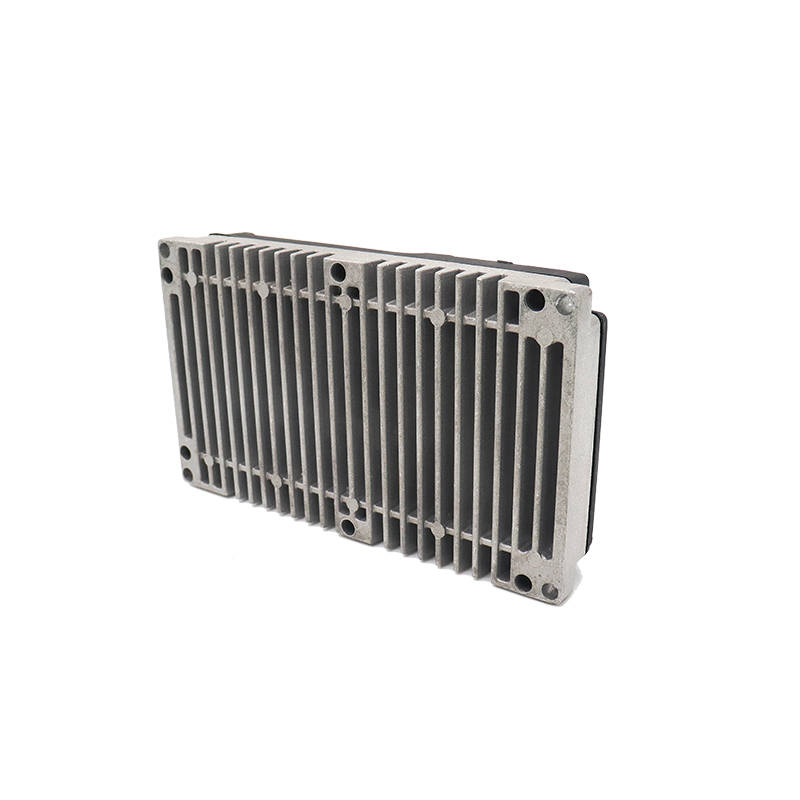

11) Case Material / Color Aluminum / Gray-Black
12) Controller Design Sine Wave Brushless DC Motor Controller
13) Support Programmable by PC

- Controller Design -

BLDC hall sensor motor controller, Sine Wave, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, EBS, High Brake, Low Brake, Three Speed, Speed Limit, Reverse, Hall speed, Phase Speed, Alarm, Cruise.
