Sabvoton motor controller SVMC Serial Model are programmable wheel hub motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for wheel hub motor controller, brushless electric bike controller, regen dc controller, bldc gearless controller,brushless hall controller.
• FOC 180 brushless hall controller applied to regen dc controller or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

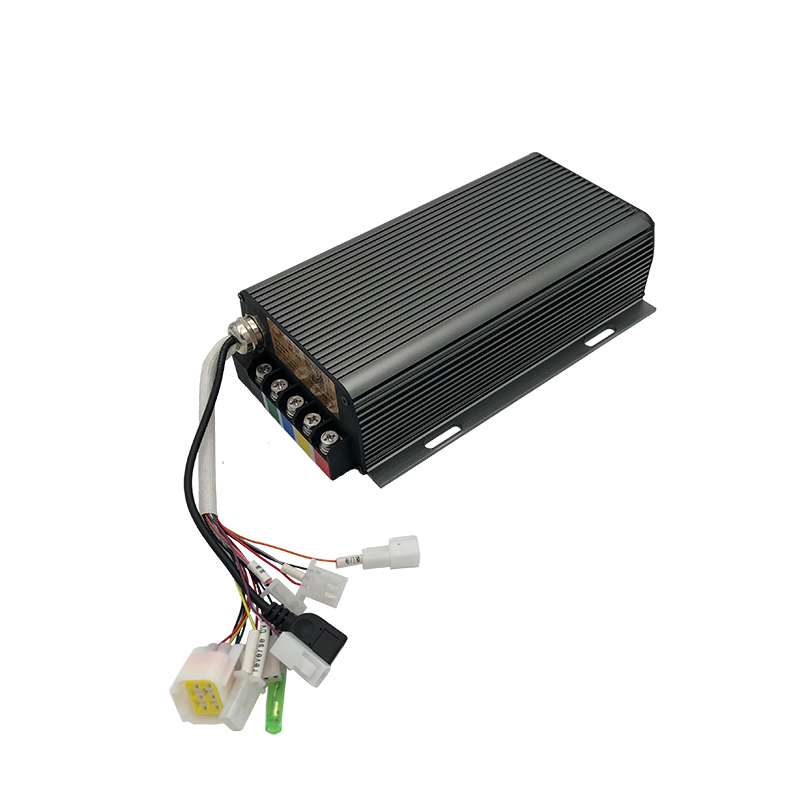

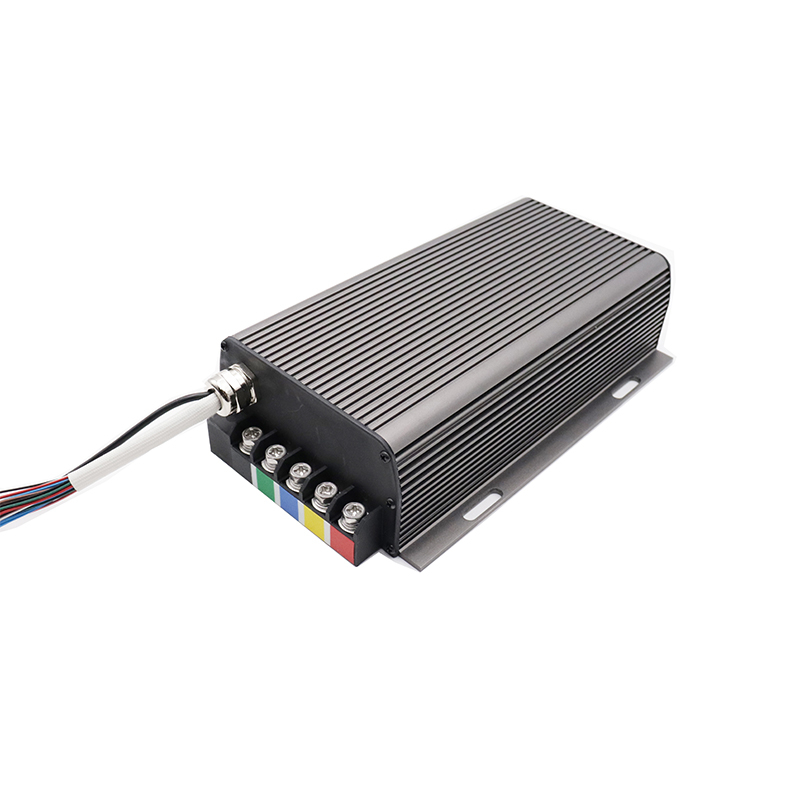

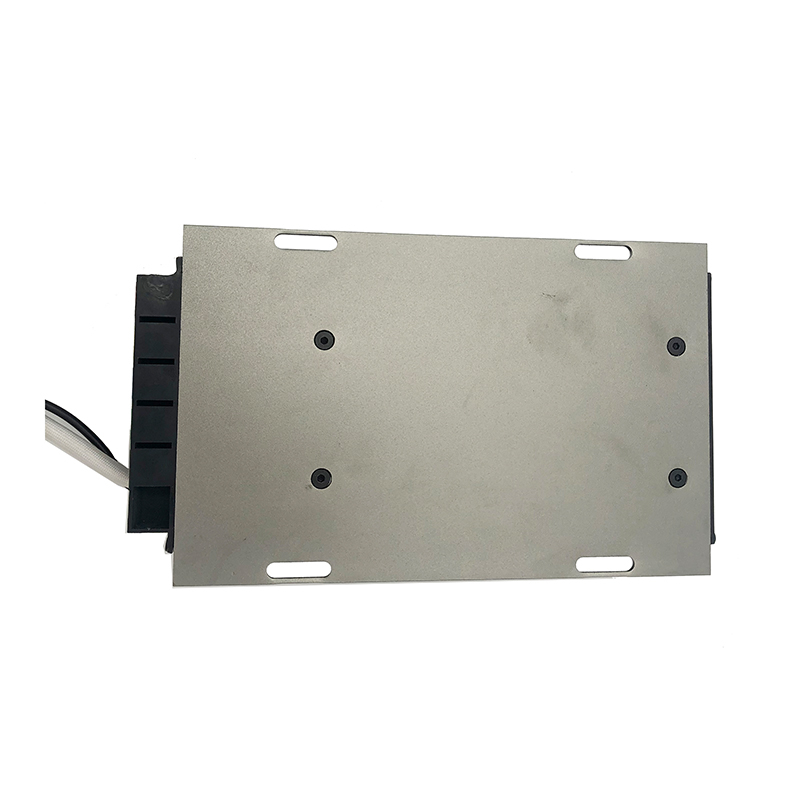

Sabvoton motor controller - SVMC72100
1) Model: SVMC72100
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 2KW - 3KW
4) Peak DC Current: 100A
5) Phase Peak Current: 250A
6) Working Communication: Hall Sensor
7) Installation Size: 247mm * 147mm * 62 mm
8) Weight: 2.3kg
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24FET
11) Case Material: Aluminum
12) Controller Design: Sine Wave Controller, regen dc controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
brushless hall controller, sine wave controller, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.
