Sabvoton Controller SVMC Serial Model are programmable brsuhless dc controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for brsuhless dc controller motor, brushless electric bike controller, ebike motor controller, BLDC gearless controller, Hall Sensor Controller.
• FOC 180 sine wave applied to ebike motor controller or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

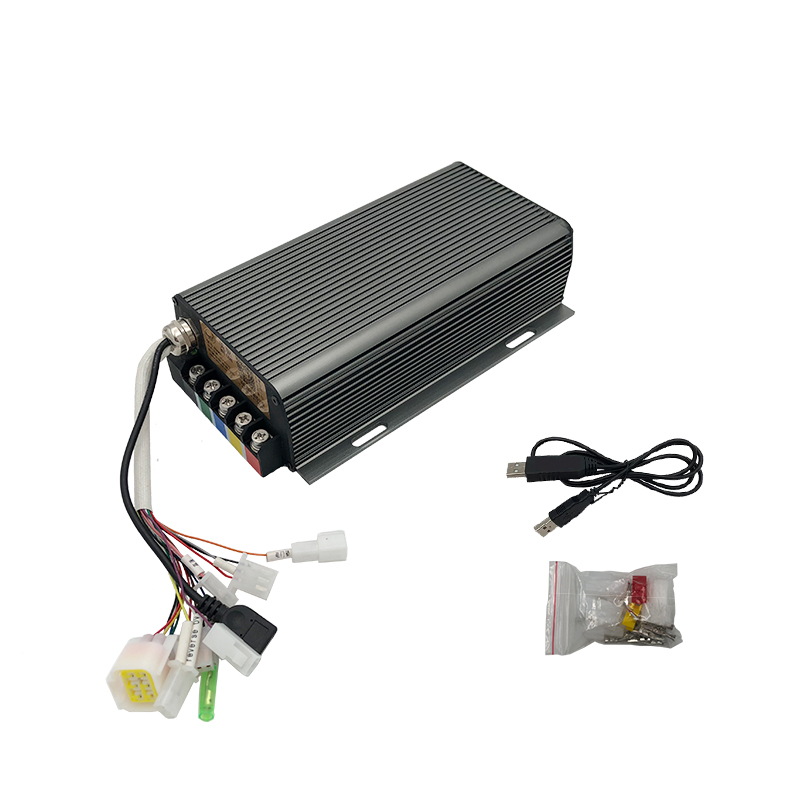

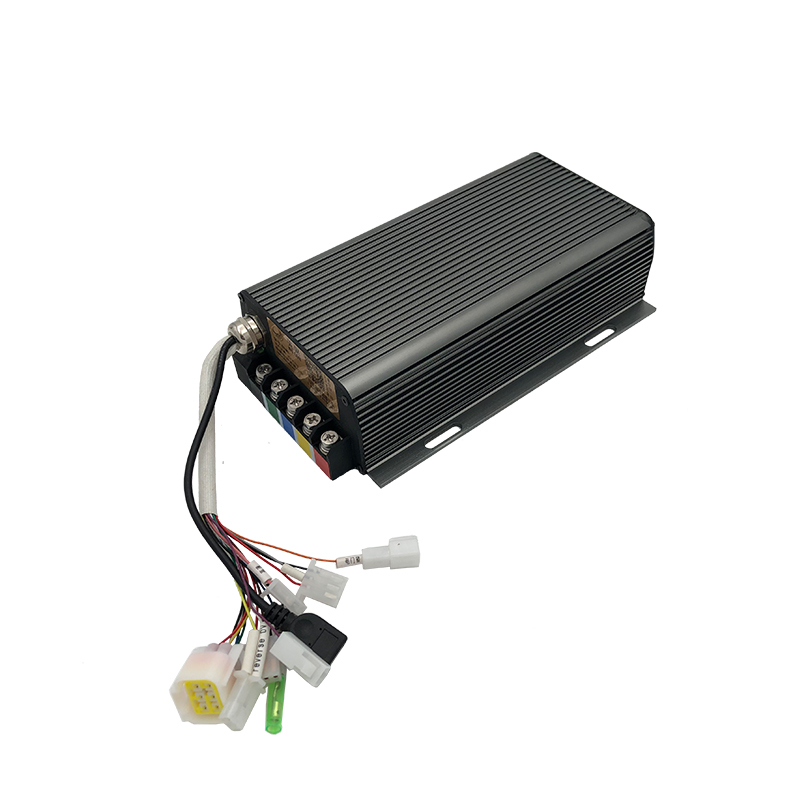

MQ(Sabvoton) electric scooter controller - SVMC7280
1) Model: SVMC7280
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 1.5KW - 2KW
4) Peak DC Current: 80A
5) Phase Peak Current: 200A
6) Working Communication: Hall Sensor
7) Installation Size: 247mm * 147mm * 62 mm
8) Weight: 2.2kgs
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24 FET
11) Case Material: Aluminum
12) Controller Design: Sine Wave 80A BLDC Controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
80A BLDC Controller, Sine Wave, Programmable, Hall Sensor Controller, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.
