Sabvoton Controller SVMC Serial Model are programmable bldc controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for BLDC hall sensor motor, brushless electric bike controller, ebike motor controller, 1500w ebike motor controller,brushless hall controller
.
• FOC 180 sine wave controller applied to brushless electric bike controller or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

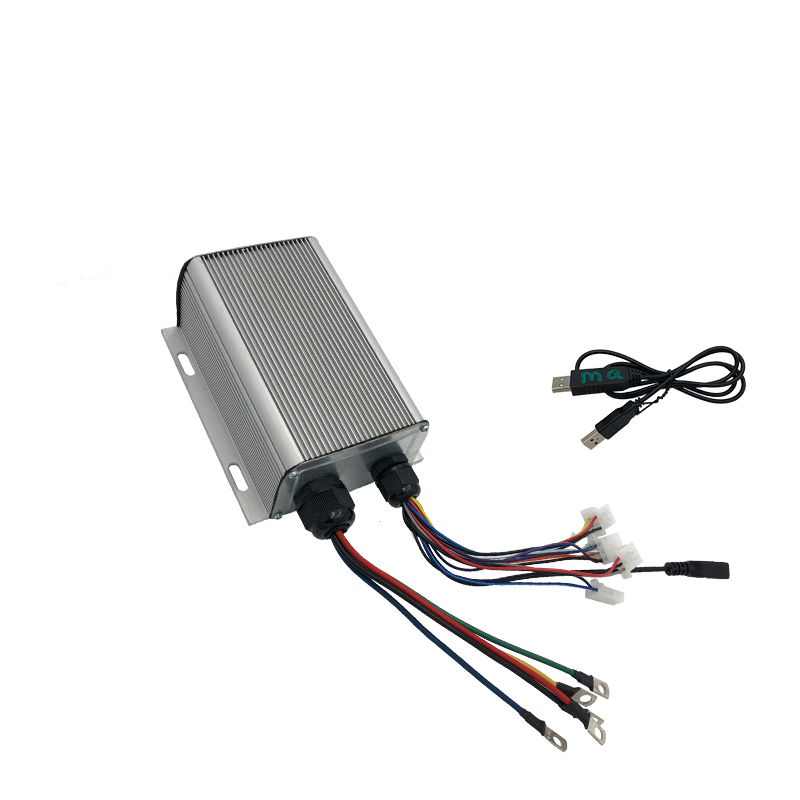

MQ(Sabvoton) 45A bicycle motor controller - SVMC7245

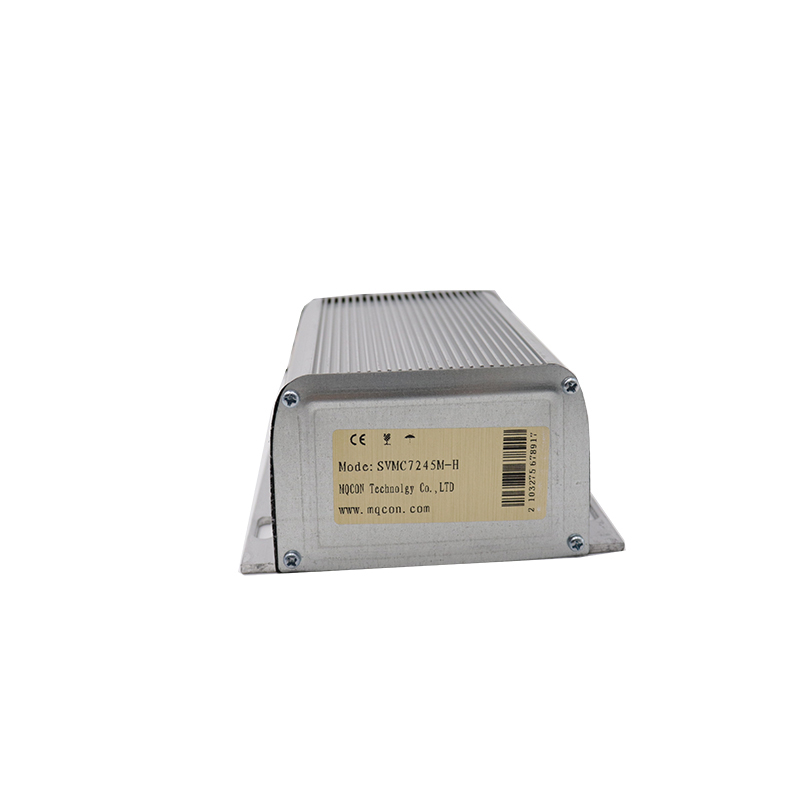

1) Model: SVMC7245
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 0.8KW - 1KW
4) Peak DC Current: 45A
5) Phase Peak Current: 135A
6) Working Communication: Hall Sensor
7) Installation Size: 185mm * 120mm * 62 mm
8) Weight: 1.7kg
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 12FET
11) Case Material: Aluminum
12) Controller Design: Sine Wave 1500w ebike motor controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
bldc controller, Sine Wave, Programmable, brushless hall controller, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port, Phase Wires, Power Wires.
#45A bicycle motor controller#brushless electric bike controller#brushless hall controller#1500w ebike motor controller
