Sabvoton Controller ML Serial Model are programmable sine wave controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric motorcycles more comfortable and easier to control. Our designed worked well for BLDC hall sensor motor, cheap sine wave controller, BLDC controller, all sensor motor controller,electric scooter controller
.
• FOC 180 sinusoidal drive controller applied to BLDC motor or PMSM.
• Easy connect
• Soft start and no noise
• Programmable by PC
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -

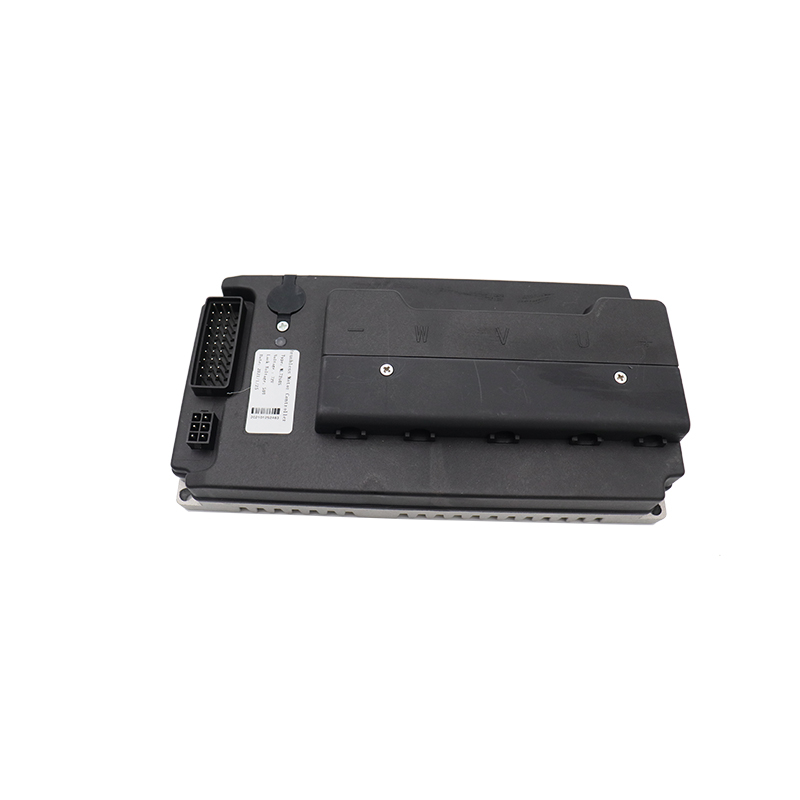

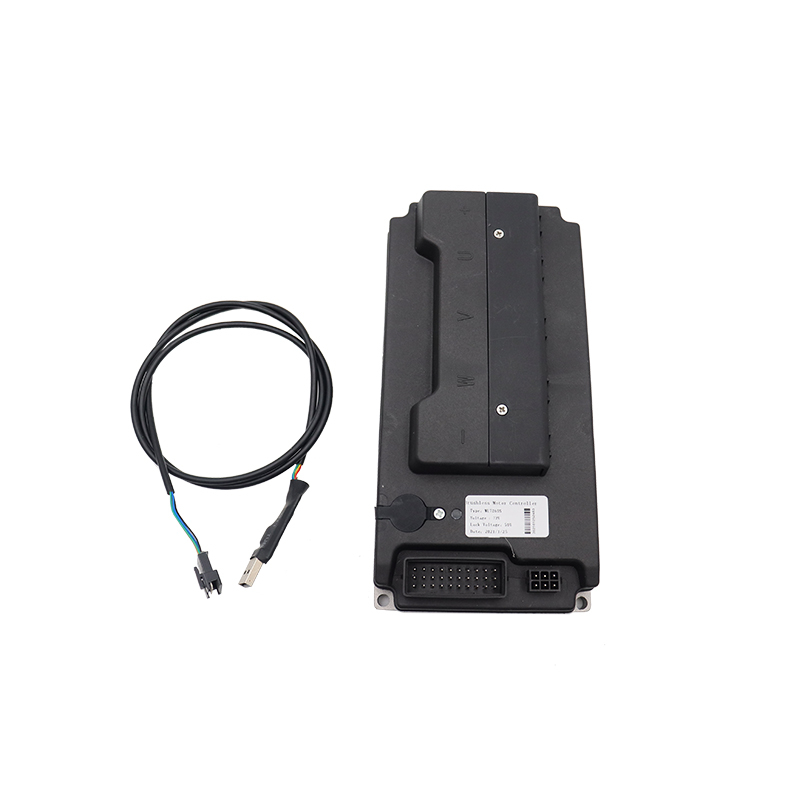

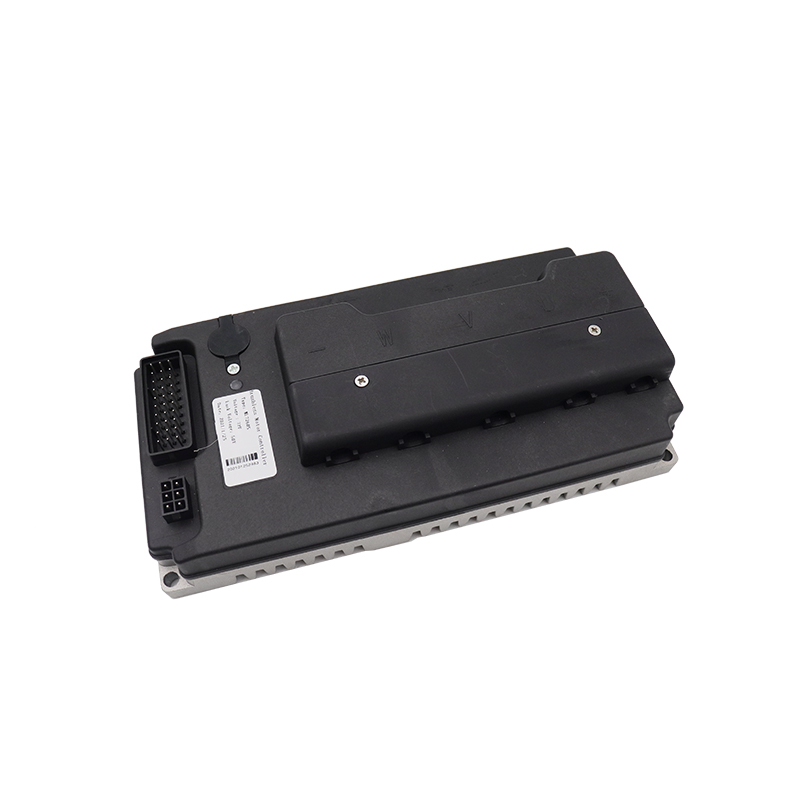

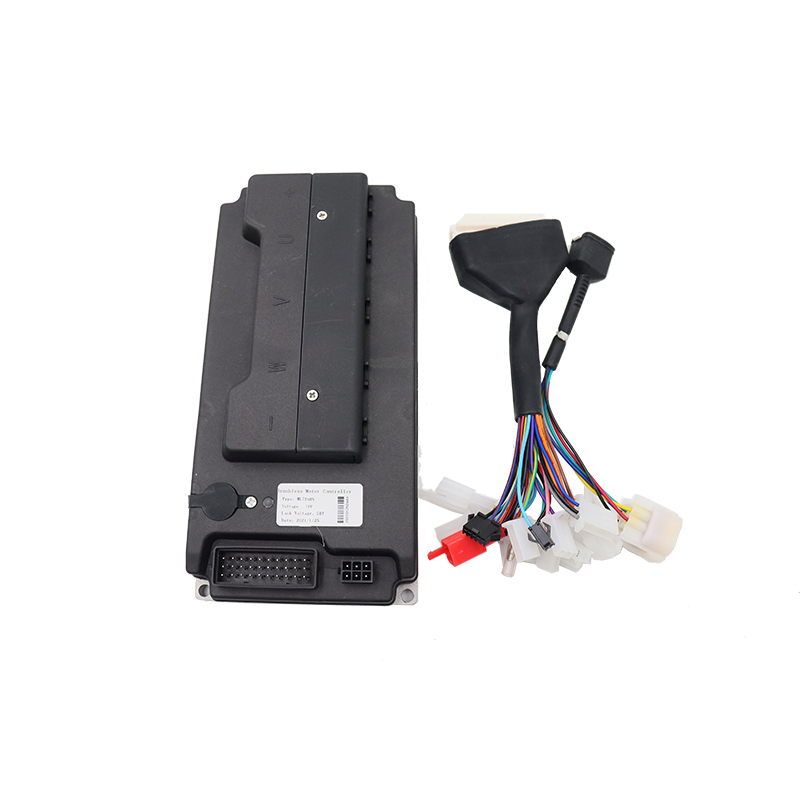

MQ(Sabvoton) Brusless DC Motor Controller - ML7280
1) Model ML7280
2) Available Battery Voltage 48V-72V
3) Available Motor Power 1000-2000W
4) Phase Peak Current 180A
5) DC Current 80A
6) Working Communication Hall Sensor
7) Instaliing Size 224mm * 111mm * 51 mm
8) Weight 1.9 kgs
9) Defaut Throttle Working Voltage 0V - 5V
10) Mosfets Detail 18 FET

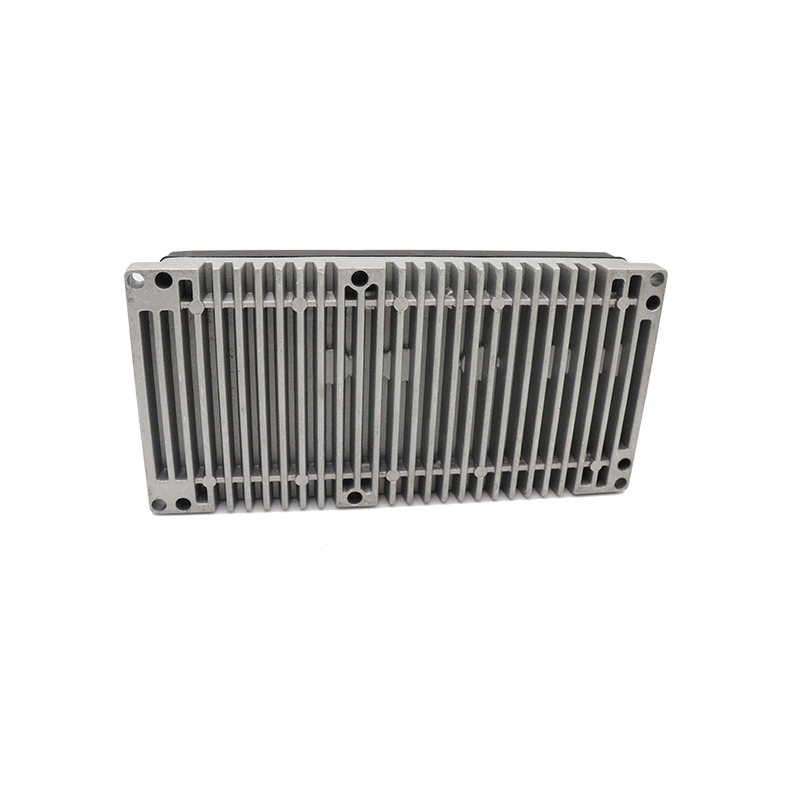

11) Case Material / Color Aluminum / Gray-Black
12) Controller Design Sine Wave Brushless DC Motor Controller, cheap sine wave controller
13) Support Programmable by PC
- Controller Design -
hall sensor motor controller, programmable sine wave controller, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, EBS, High Brake, Low Brake, Three Speed, Speed Limit, Reverse, Hall speed, Phase Speed, Alarm, Cruise.
