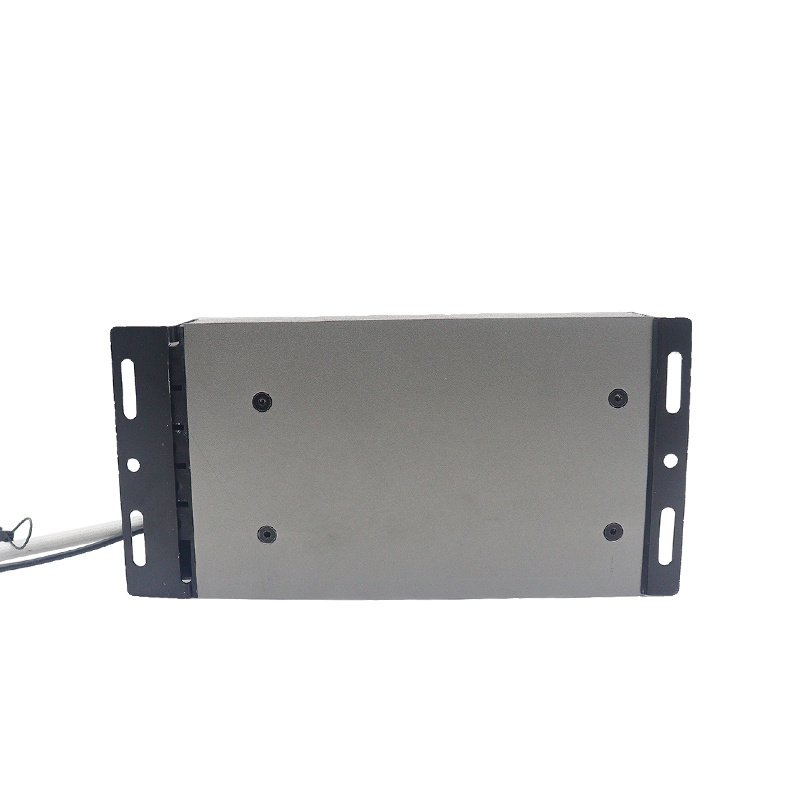

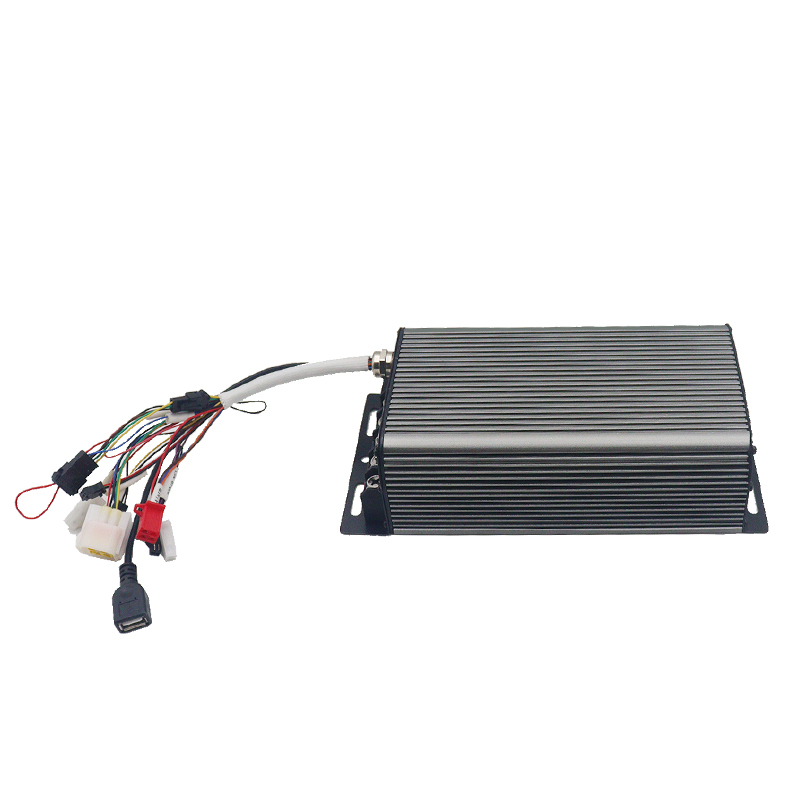

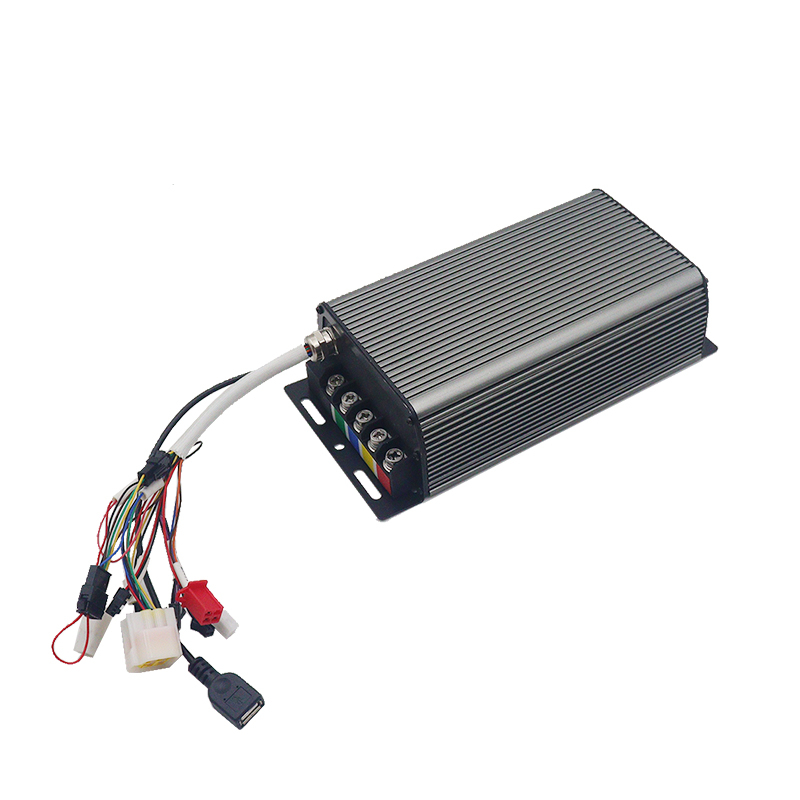

Sabvoton controller SVMC7260 Model are programmable 1.5kw 72v BLDC controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Sine wave 60a controller, 60a electric scooter controller, 60a electric bicycle controller.

•FOC 180︒ sinusoidal drive controller applied to BLDCM or PMSM.

•Easy connect

•Soft start and no noise

•Programmable by PC and Phone

•EBS & Regenerative function support

•Flux Weakening function support

•OEM & ODM Service support

Contact Us


- Generally SPEC -

MQ(Sabvoton) 60A Electric Scooter Controller - SVMC7260-M(V2)

1) Model: SVMC7260-M(V2)

2) Available Battery Voltage: 48V-72V

3) Available Motor Power: 1KW - 1.5KW

4) Peak DC Current: 60A

5) Phase Peak Current: 165A

6) Working Communication: Hall Sensor

7) Installation Size: 243mm * 122mm * 62mm

8) Weight: 2.1kg

9) Defaut Throttle Working Voltage: 0V - 5V

10) Mosfets Detail: 18FET

11) Case Material: Aluminum

12) Controller Design: Sine Wave 60A Controller, Risun Motor Controller

13) Support Programmable by PC & Phone

14) Certification: CE, CCC

- Controller Design -

60A Electric Bicycle Controller, Sine Wave, Programmable, With Hall Plug, 120 degree Phase Angle.

Functions: Hall(no temp sensor), Throttle, PAS, Low Brake, High Brake, Display, Anti-Theft, USB port.

#sabvoton controller#sine wave hall controller#1500w 60A sine wave controller#electric bike motor controller#electric bicycle controller
