Sabvoton Controller offer the kits for convert electric bicycle, the 150A electric bike motor kits works together with QS273(152mm drop-outs) motor wheel set kits, CT01 display. It's easy to connect with SVMC models controller. This Controller kits with sine wave controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for electric bicycle controller kits, 17‘’ 18" 19‘’ 21‘’ motorcycle wheel set kits, electric bicycle controller kits, BLDC electric bicycle motor controller kits, electric bicycle controller with display
• FOC 180 sabvoton Controller SVMC72150 applied to BLDC motor or PMSM.
• Easy connect, BLDC bike motor controller kits
• Soft start and no noise
• Programmable by PC & Phone APP
• EBS & Regenerative function support
• OEM & ODM Service support
OVERVIEW

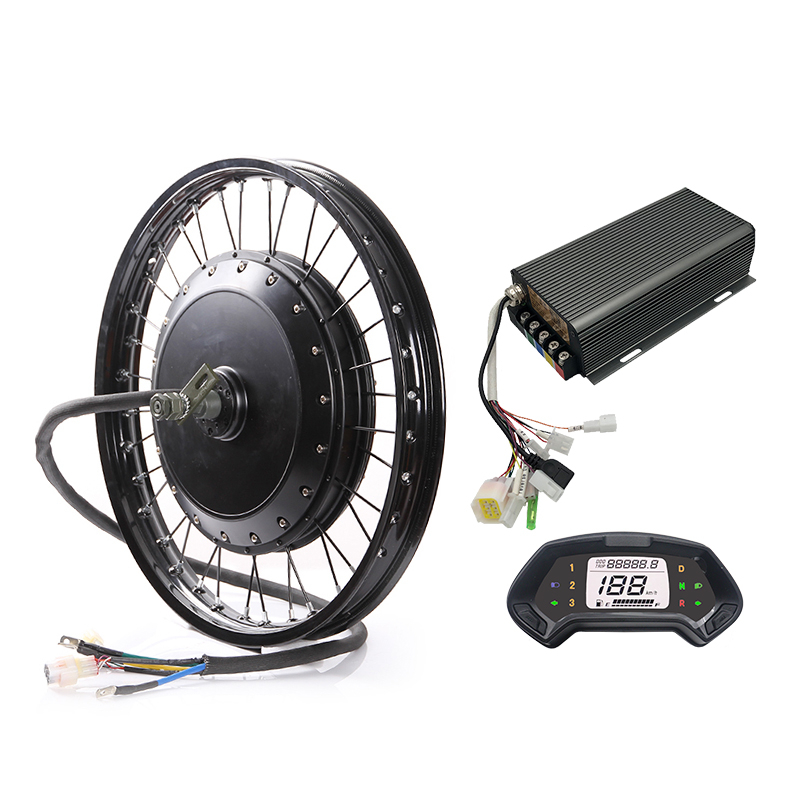

- Kits Including -
1pc x QS 273 4000W spoke hub motor with 17''/ 18'' / 19'' / 21'' rim no tire, all black
1pc x SVMC72150-M V1 Controller
1pc x CT01 Display
- Generally SPEC -
MQ(Sabvoton) sabvoton controller SVMC72150
1) Motor: electric bicycle motor wheel set,17''/ 18'' / 19'' / 21'' moped motorcycle rim, bicycle rim, customized work support. power 4000w peak 8000w. 152mm drop-outs.

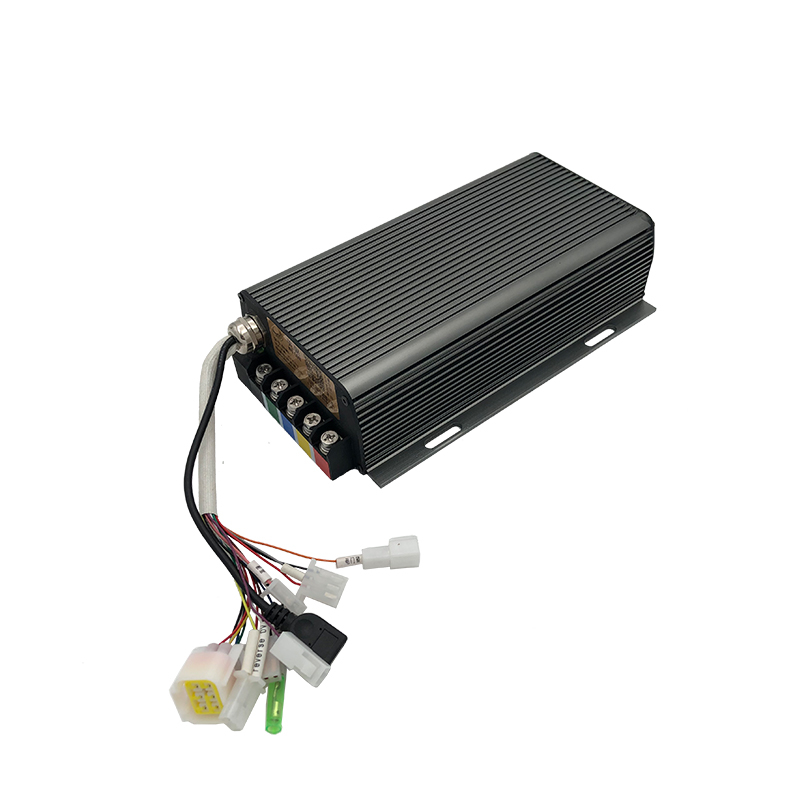

2) Controller Model: SVMC72150 V1
3) Display Model: CT01 display
4) Available Battery Voltage 48V-72V rated
5) Available Motor Power: 3000W
6) Peak DC Current: 150A
7) Phase Peak Current: 350A
8) Working Communication: Hall Sensor
9) Installation Size: 249mm * 147mm * 62 mm
10) Defaut Throttle Working Voltage: 0V - 5V
11) Controller Design: 150A electric bike motor kits, electric bicycle controller kits
12) Hall speed signal
- Controller kits Design -
150A electric bike motor kits, programmable sine wave controller, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed.
Sabvoton controller was designed well as 150A electric bicycle motor kits, electric bicycle controller kits, 17‘’ 18" 19‘’ 21‘’ motorcycle wheel set kits, electric bicycle controller kits, BLDC electric bicycle motor controller kits, electric bicycle controller with display
