Electric Bicycle Controller Kits - SVMC-M04

Sabvoton Controller offer the kits for convert electric bicycle, the 150A electric bike motor kits works together with QS205(150mm drop-outs) motor wheel set kits, UKC1 display. It's easy to connect with SVMC-M models controller, plug to plug directly. This Controller kits with sine wave controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well for 150A e-bike controller kits,QS205(150mm drop-outs) motor wheel set kits, electric bicycle controller kits, BLDC bike motor controller kits,electric bicycle controller with display

• FOC 180 sabvoton Controller SVMC72150 applied to BLDC motor or PMSM.

• Easy connect, BLDC bike motor controller kits

• Soft start and no noise

• Programmable by PC & Phone APP

• EBS & Regenerative function support

• OEM & ODM Service support

Contact Us

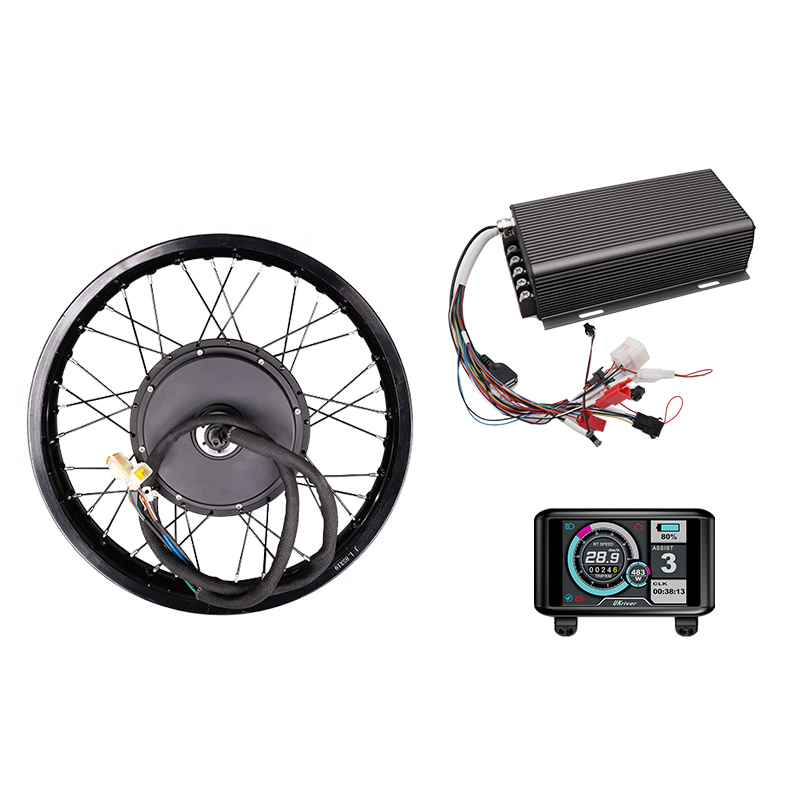

- Kits Including -

1pc x QS 3000W 205 50H V3 spoke hub motor with 17'' / 18'' / 19'' / 21'' rim no tire, all black

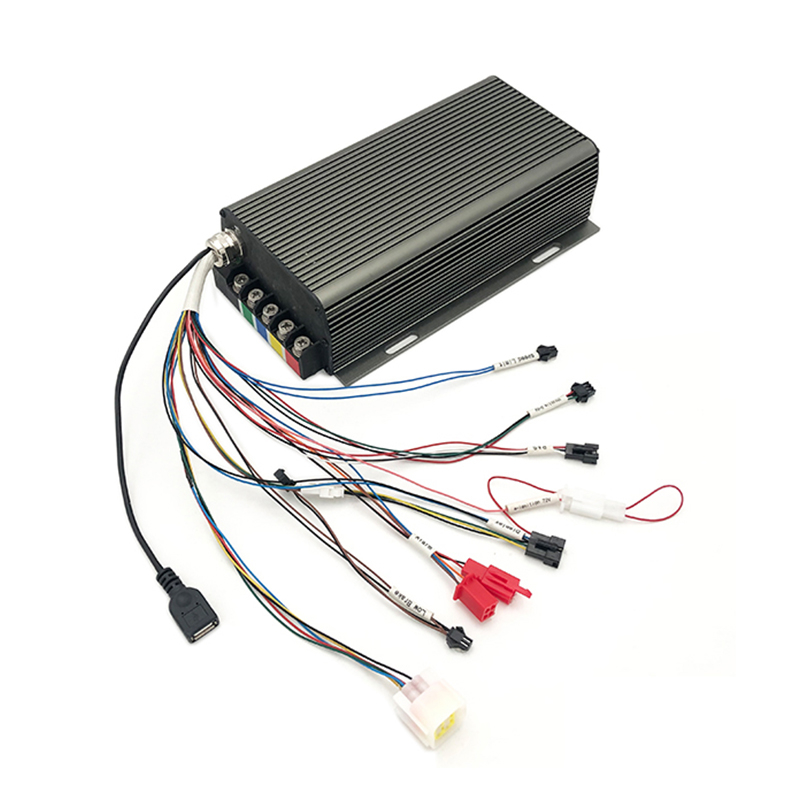

1pc x SVMC72150-M V1 Controller

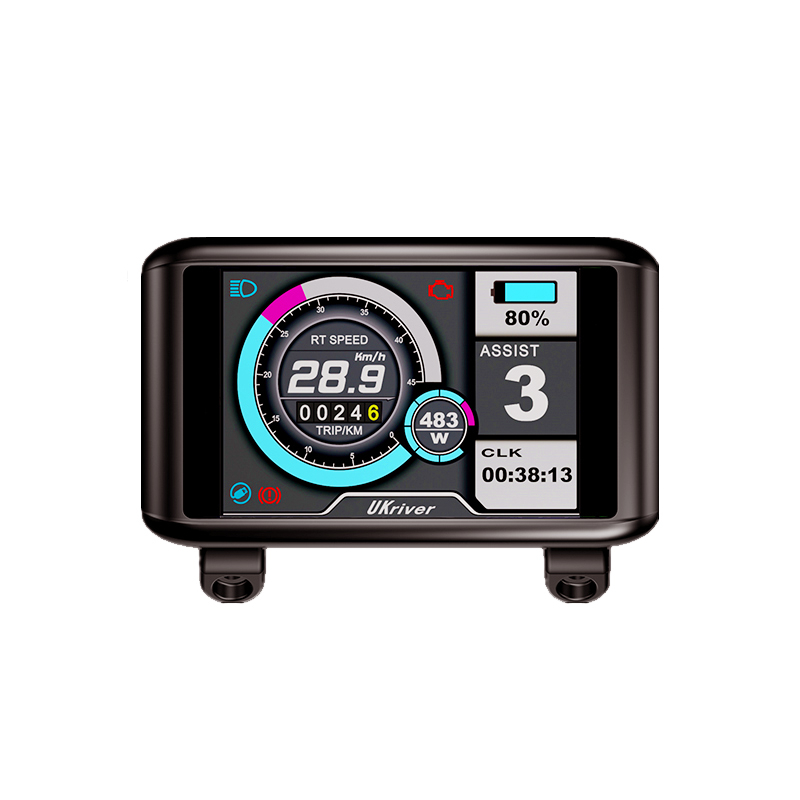

1pc x UKC1 Display

- Generally SPEC -

MQ(Sabvoton) sabvoton controller SVMC72150 -M

1) Motor: electric bicycle motor wheel set,17''/ 18'' / 19'' / 21'' moped motorcycle rim, bicycle rim, rated 3000w power. 150mm drop-outs.
2) Controller Model: SVMC72150-M V1
3) Display Model:  UKC1 display

4) Available Battery Voltage 48V-72V rated

5) Available Motor Power: 3000W

6) Peak DC Current: 150A

7) Phase Peak Current: 350A

8) Working Communication: Hall Sensor

9) Installation Size: 249mm * 147mm * 62 mm

10) Defaut Throttle Working Voltage: 0V - 5V

11) Controller Design: 150A electric bike motor kits, electric bicycle controller kits

12) APT Commnunication Protocol


- Controller kits Design -

150A electric bike motor kits, programmable sine wave controller, With Hall Plug, 120 degree Phase Angle.

Functions: Hall, 0-5V Throttle, PAS, Alarm, Speed Limit, Low Brake, Display, Reverse.

Sabvoton controller was designed well as 150A electric bicycle motor kits, motor wheel 17''/ 18'' / 19'' / 21'' set kits,Sabvoton ebike controller,electric bicycle controller kits,BLDC bike motor controller kits.
