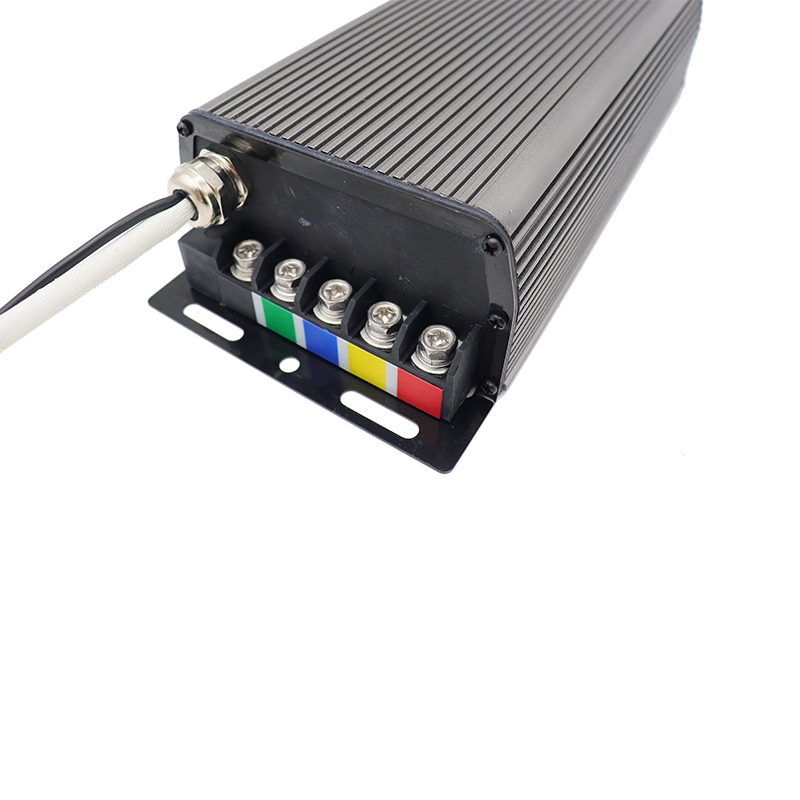

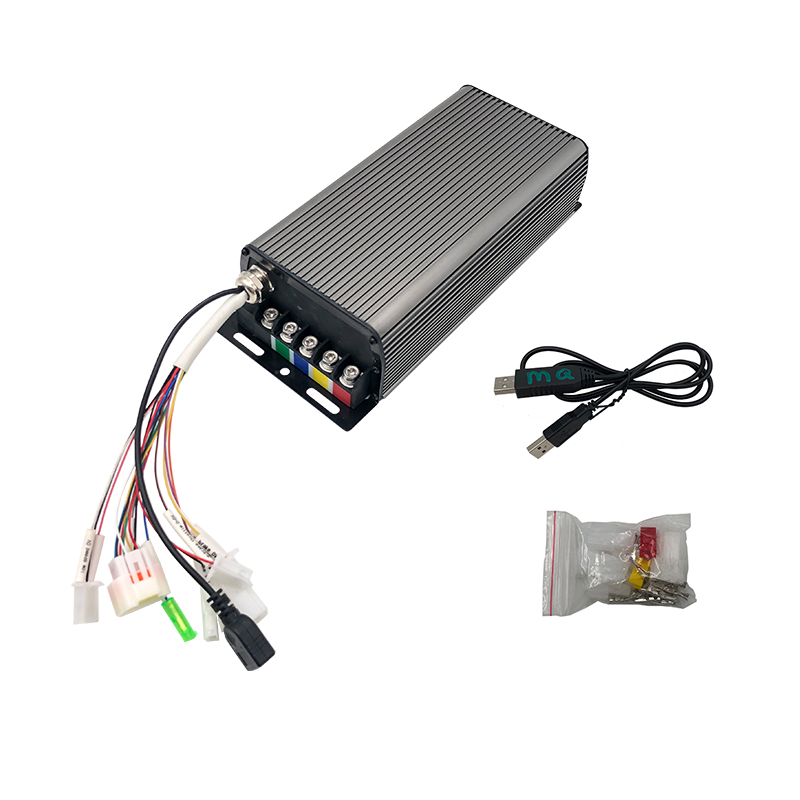

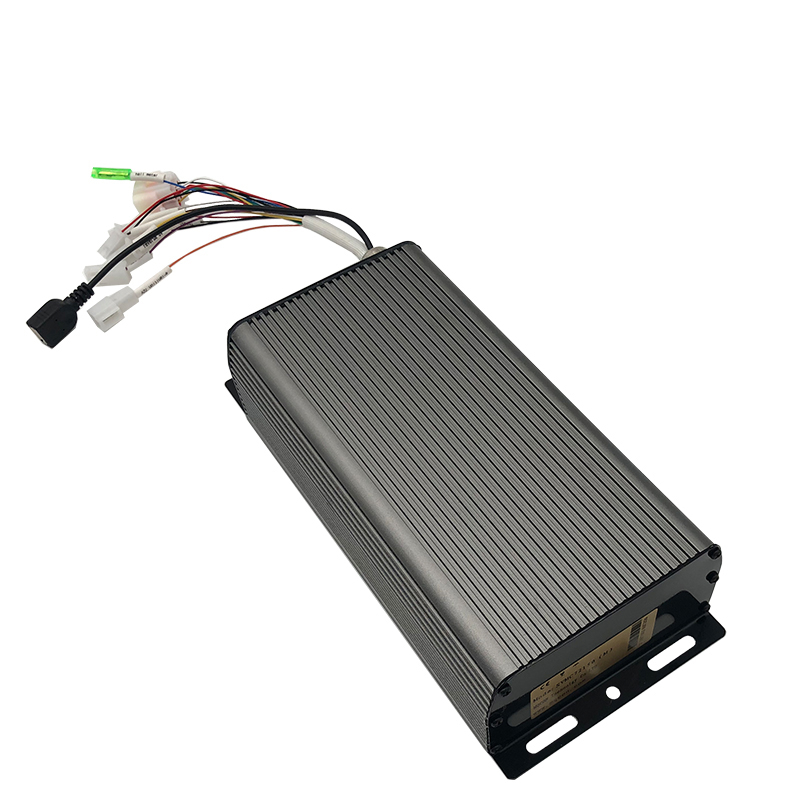

Sabvoton SVMC72200 controller SVMC Serial Model are programmable 200A BLDC controller works with high efficiency, less noise, and lower energy consumption, which makes your electric scooter or electric bicycle more comfortable and easier to control. Our designed worked well as 200A BLDC controller, 4000w electric bicycle controller,sabvoton SVMC72200 controller, powerful 4kw electric scooter controller.
• FOC 180 200A BLDC controller applied to BLDC or PMSM.
• Easy connect
• Soft start and no noise
• Programmable DC Controller by PC and Phone
• EBS & Regenerative function support
• Flux Weakening function support
• OEM & ODM Service support
OVERVIEW
- Generally SPEC -
MQ(Sabvoton) 200A BLDC controller - SVMC72200 V2
1) Model: SVMC72200 V2 powerful 4kw electric scooter controller
2) Available Battery Voltage: 48V-72V
3) Available Motor Power: 2KW - 4KW
4) Peak DC Current: 200A
5) Phase Peak Current: 450A
6) Working Communication: Hall Sensor
7) Installation Size: 308mm * 122mm * 63 mm
8) Weight: 2.5kg
9) Defaut Throttle Working Voltage: 0V - 5V
10) Mosfets Detail: 24 FET
11) Case Material: Aluminum
12) Controller Design: 4000w electric bicycle controller, sabvoton SVMC72200 controller
13) Support Programmable by PC & Phone
14) Certification: CE, CCC
- Controller Design -
4000w electric bicycle controller, Sine Wave, Programmable, With Hall Plug, 120 degree Phase Angle.
Functions: Hall, Ignition, Throttle, 0-5V e-brake, High Brake, Low Brake, Three Speed, Reverse, Hall speed, USB Port.
